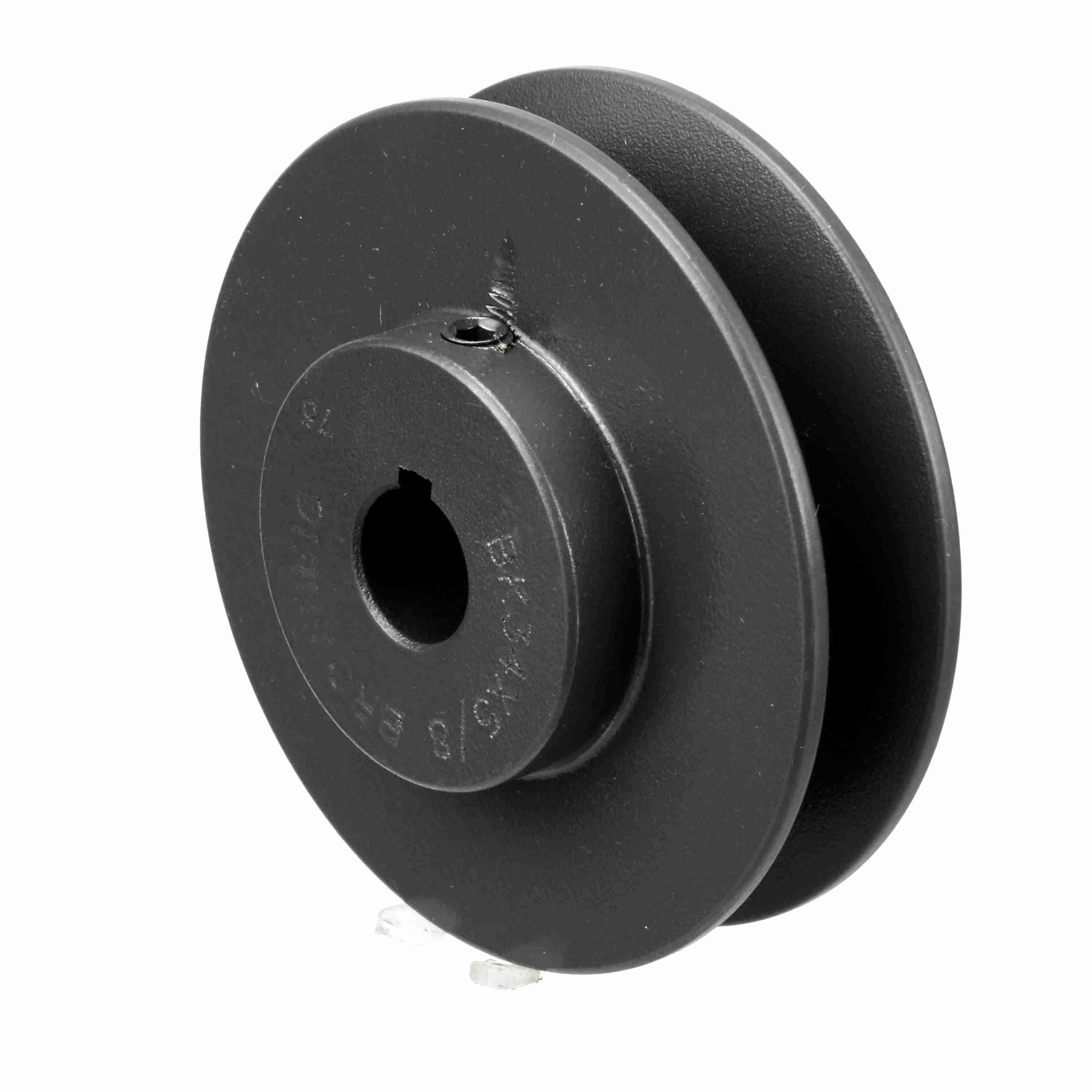

Browning® Classical Gripbelt® 1028083 BK Series Type 2 Single Groove Sheave, Finished Bore, 5/8 in Dia Bore, 3.55 in OD, 3 in (A)/3-1/2 in (B) Dia Pitch, 7/8 in W Face
Browning® Classical Gripbelt® 1028083 BK Series Type 2 Single Groove Sheave, Finished Bore, 5/8 in Dia Bore, 3.55 in OD, 3 in (A)/3-1/2 in (B) Dia Pitch, 7/8 in W Face
-
BrandBrowning®
-
UPC662289257737
-
Manufacturer Part Number1028083
-
CountryUSA
-
Face Width7/8 in
-
Pitch Diameter3 in (A)/3-1/2 in (B)
-
MaterialCast Iron
-
TypeType 2
-
SeriesBK Series
-
Hub Projection13/32 in
-
Outside Diameter3.55 in
-
Bore Diameter5/8 in
-
Bore TypeFinished
-
Overall Length1-9/32 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Tighter tolerances by 25%
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Precision balanced to provide smooth, vibration free performance
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
-
Alternative Part NumberBK34X5/8
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
