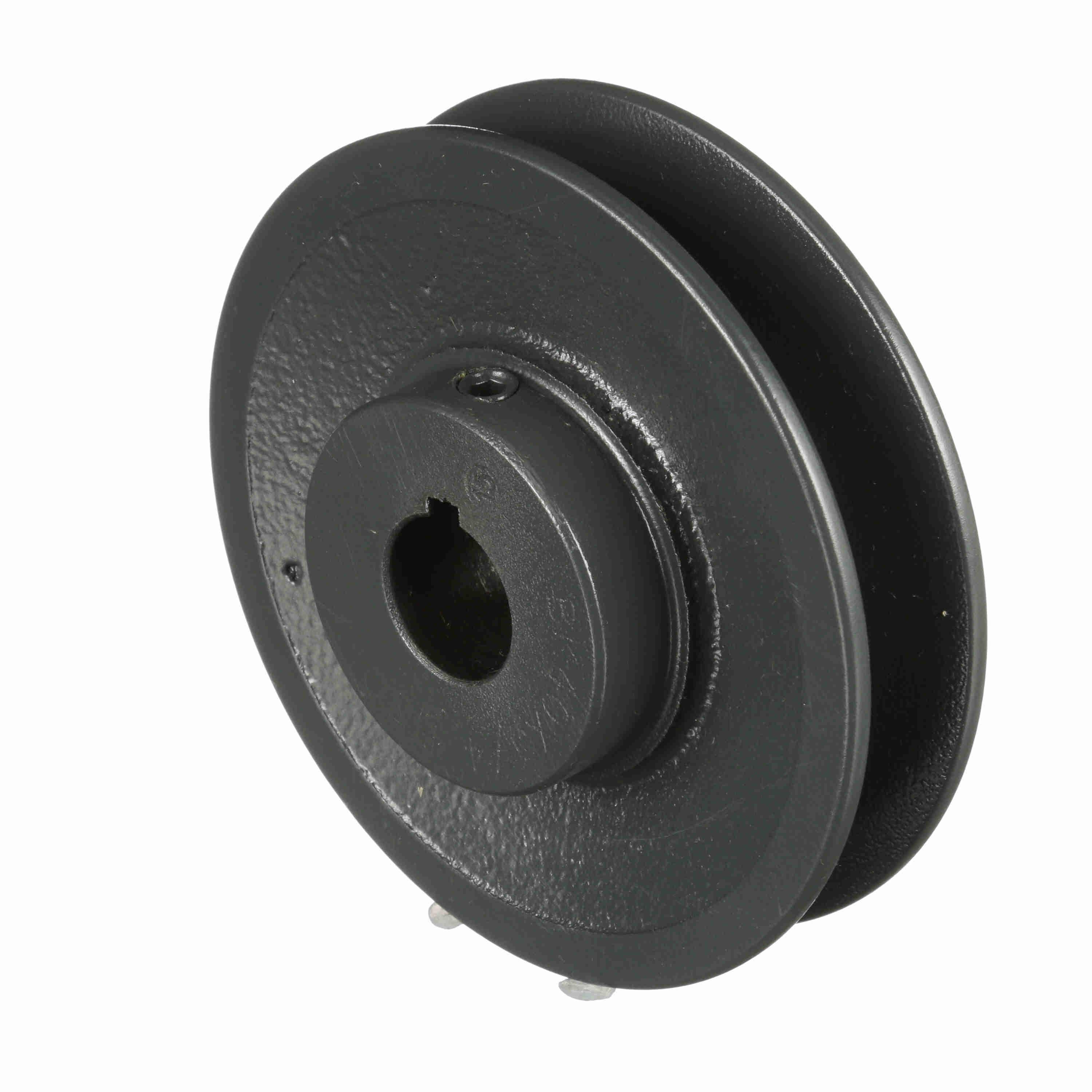

Browning® Classical Gripbelt® 1028216 BK Series Type 2 Single Groove Sheave, Finished Bore, 3/4 in Dia Bore, 3.95 in OD, 3.4 in (A)/3.9 in (B) Dia Pitch, 7/8 in W Face
Browning® Classical Gripbelt® 1028216 BK Series Type 2 Single Groove Sheave, Finished Bore, 3/4 in Dia Bore, 3.95 in OD, 3.4 in (A)/3.9 in (B) Dia Pitch, 7/8 in W Face
-
BrandBrowning®
-
UPC662289137862
-
Manufacturer Part Number1028216
-
CountryUSA
-
Face Width7/8 in
-
Pitch Diameter3.4 in (A)/3.9 in (B)
-
MaterialCast Iron
-
TypeType 2
-
SeriesBK Series
-
Hub Projection13/32 in
-
Outside Diameter3.95 in
-
Bore Diameter3/4 in
-
Bore TypeFinished
-
Overall Length1-9/32 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Tighter tolerances by 25%
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Precision balanced to provide smooth, vibration free performance
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Browning 358 Notched Belts are constructed of EPDM material wrapped top and botttom, increased operating temperature range of -60F to 250F degrees
- More horsepower in less space - Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts
- This enables you to reduce drive cost
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
-
Alternative Part NumberBK40X3/4
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
