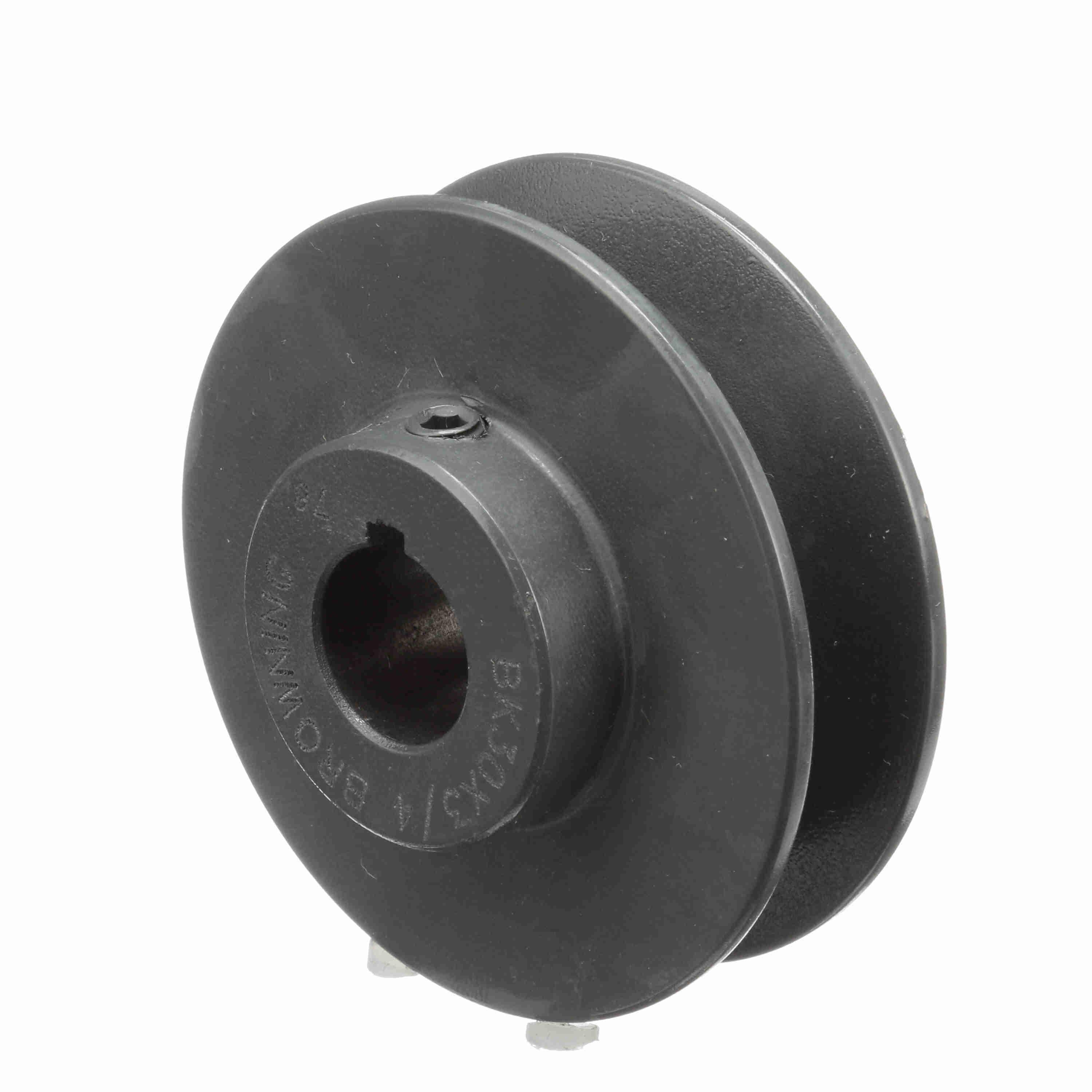

Browning® Classical Gripbelt® 1028018 BK Series Type 2 Single Groove Sheave, Finished Bore, 3/4 in Dia Bore, 3.15 in OD, 2.6 in (A)/3.1 in (B) Dia Pitch, 13/16 in W Face

0 Ratings
$31.25
In Stock
SKU: BRWBK30X3/4
noimage_new

Browning® Classical Gripbelt® 1028018 BK Series Type 2 Single Groove Sheave, Finished Bore, 3/4 in Dia Bore, 3.15 in OD, 2.6 in (A)/3.1 in (B) Dia Pitch, 13/16 in W Face

In Stock
HCI of Jackson: 7
HCI of Dyersburg: 0
HCI of Humboldt: 1
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Back to: Single Groove Sheaves
Main specs
  • Brand
    Browning®
  • UPC
    662289307715
  • Manufacturer Part Number
    1028018
  • Country
    USA
Specification
  • Face Width
    13/16 in
  • Pitch Diameter
    2.6 in (A)/3.1 in (B)
  • Material
    Cast Iron
  • Type
    Type 2
  • Series
    BK Series
  • Hub Projection
    13/32 in
  • Outside Diameter
    3.15 in
  • Bore Diameter
    3/4 in
  • Bore Type
    Finished
  • Overall Length
    1-7/32 in
  • Suitable For Use With
    4L/A and 5L/B Cross Section Belt
Features
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • 1 and 2 Grooves are available to meet any fractional horsepower requirement
  • Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Tighter tolerances by 25%
  • Twice balanced after assembly
  • Tightened micro-finish on groove walls for increased belt life
  • Precision balanced to provide smooth, vibration free performance
  • Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
  • Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
  • Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
  • Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
  • New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
Competitor Information
Competitor Name Competitor Part Number
Applied Industrial Technologies 100783258
Motion Industries 00734942
Additional Information
  • Alternative Part Number
    BK30X3/4
  • UNSPSC
    24101610
  • Package Description
    EACH
  • Warranty
    1 Year
Attachments
Reviews

There are yet no reviews for this product.
