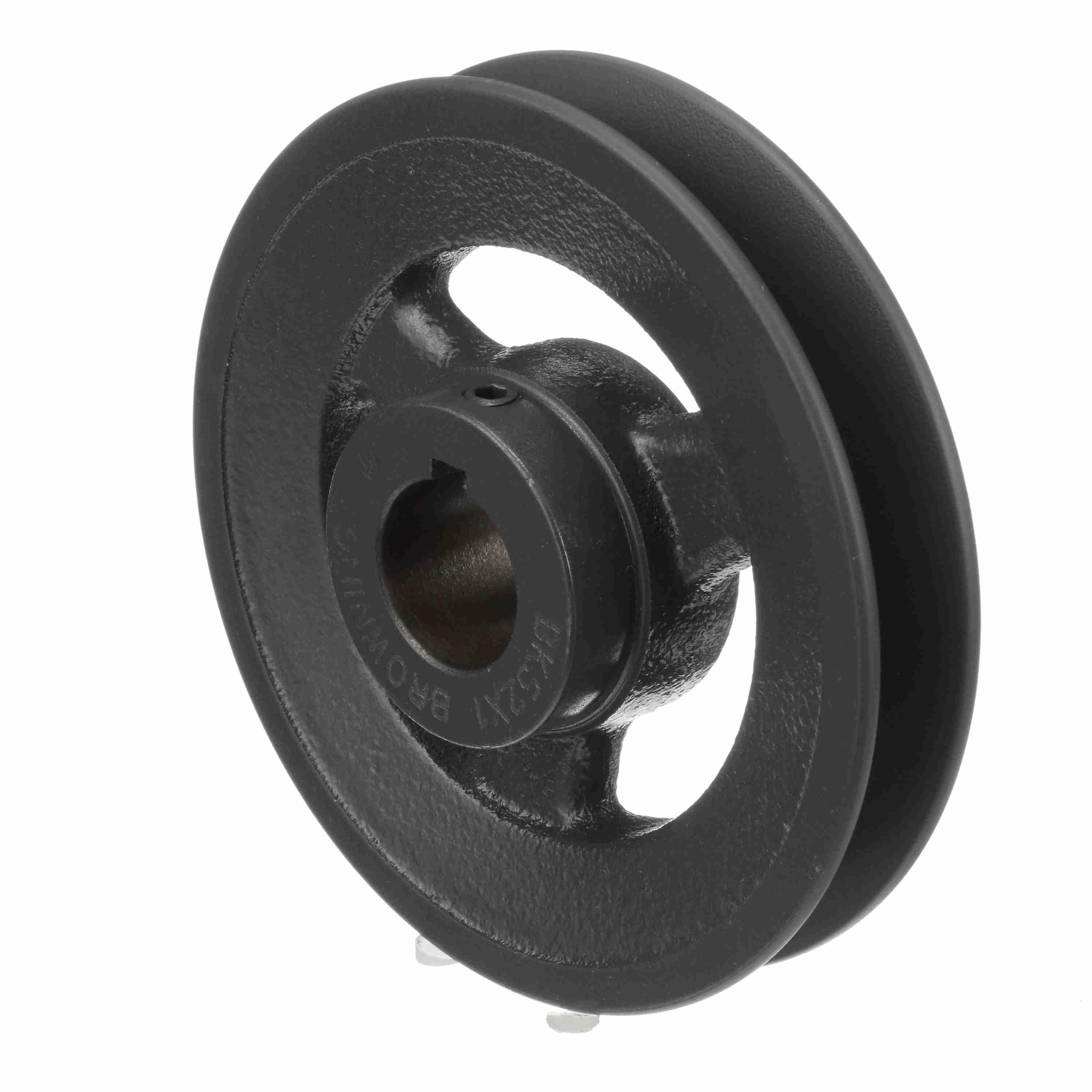

Browning® Classical Gripbelt® 1028489 BK Series Type 3 Single Groove Sheave, Finished Bore, 1 in Dia Bore, 4.95 in OD, 4.4 in (A)/4.9 in (B) Dia Pitch, 7/8 in W Face
Browning® Classical Gripbelt® 1028489 BK Series Type 3 Single Groove Sheave, Finished Bore, 1 in Dia Bore, 4.95 in OD, 4.4 in (A)/4.9 in (B) Dia Pitch, 7/8 in W Face
-
BrandBrowning®
-
UPC662289308170
-
Manufacturer Part Number1028489
-
CountryUSA
-
Face Width7/8 in
-
Pitch Diameter4.4 in (A)/4.9 in (B)
-
MaterialCast Iron
-
TypeType 3
-
SeriesBK Series
-
Hub Projection13/32 in
-
Outside Diameter4.95 in
-
Bore Diameter1 in
-
Bore TypeFinished
-
Overall Length1-9/32 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Tighter tolerances by 25%
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Precision balanced to provide smooth, vibration free performance
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Wrapped construction - Provides smooth quiet operation
- Single fabric design allows greater flexibility
- Wrapped Belts are more tolerant to slipping and misalignment than Raw Edge Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
-
Alternative Part NumberBK52X1
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
