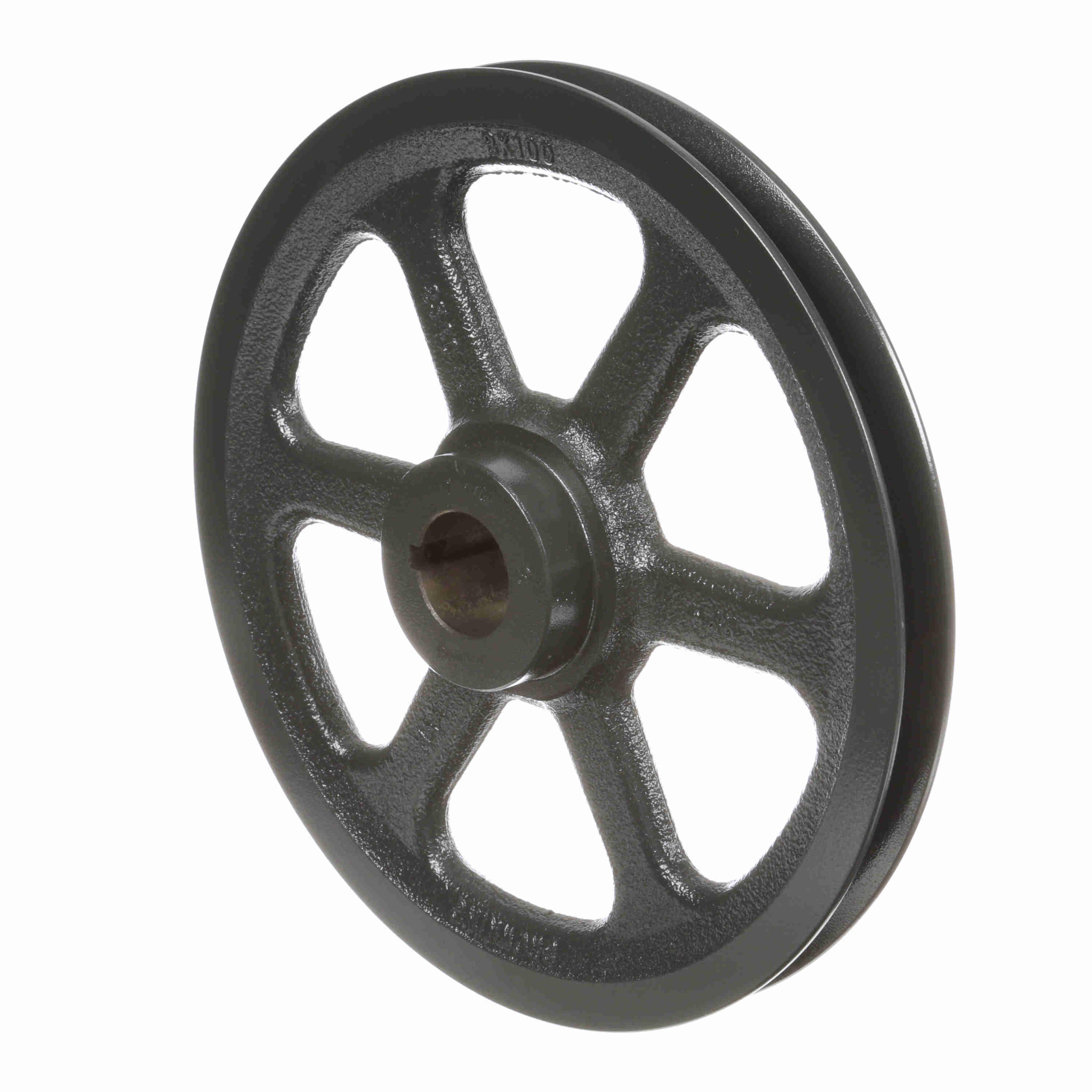

Browning® Classical Gripbelt® 1029297 BK Series Type 3 Single Groove Sheave, Finished Bore, 1-1/4 in Dia Bore, 9-3/4 in OD, 9.2 in (A)/9.7 in (B) Dia Pitch, 7/8 in W Face
Browning® Classical Gripbelt® 1029297 BK Series Type 3 Single Groove Sheave, Finished Bore, 1-1/4 in Dia Bore, 9-3/4 in OD, 9.2 in (A)/9.7 in (B) Dia Pitch, 7/8 in W Face
-
BrandBrowning®
-
UPC662289218783
-
Manufacturer Part Number1029297
-
CountryUSA
-
Face Width7/8 in
-
Pitch Diameter9.2 in (A)/9.7 in (B)
-
MaterialCast Iron
-
TypeType 3
-
SeriesBK Series
-
Hub Projection21/32 in
-
Outside Diameter9-3/4 in
-
Bore Diameter1-1/4 in
-
Bore TypeFinished
-
Overall Length1-17/32 in
-
Suitable For Use With4L/A and 5L/B Cross Section Belt
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Tighter tolerances by 25%
- Twice balanced after assembly
- Tightened micro-finish on groove walls for increased belt life
- Precision balanced to provide smooth, vibration free performance
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
-
Alternative Part NumberBK100X 1 1/4
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
