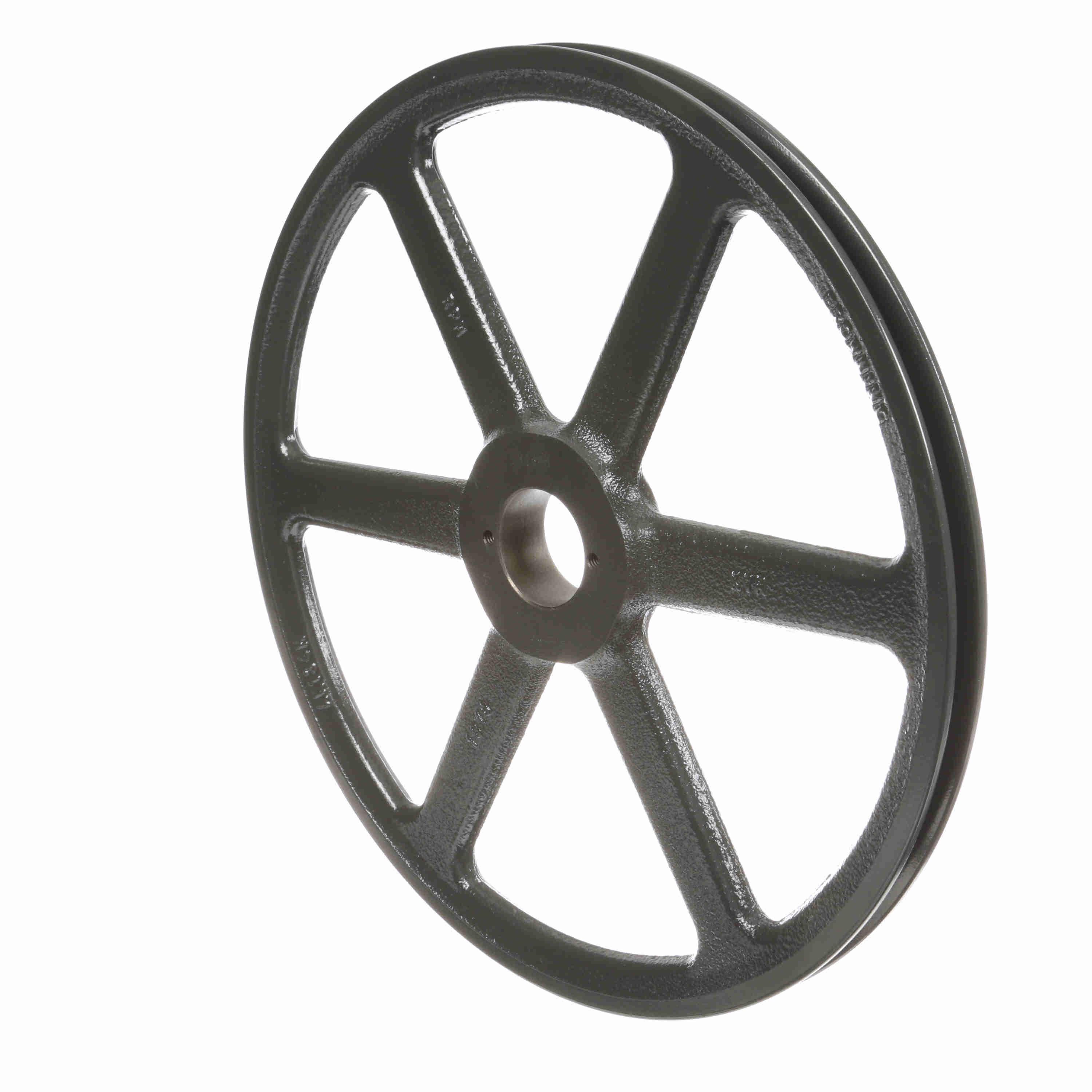

Browning® 1042340 AK Series Type 3 FHP Single Groove Sheave, Bushed Bore, 1/2 to 1-1/2 in Dia Bore, 13-1/4 in OD, 13.2 in (A)/12.66 in (3L) Dia Pitch, 3/4 in W Face
Browning® quality FHP sheaves are offered in both finished bore and bushed style offerings. Bushing bore ranges from 3/8 in to 1-1/2 in. Bushed product is offered in AKH, 2AKH, BKH and 2BKH sheaves. Browning® FHP sheaves are manufactured to the highest quality and balance available. They are also painted with durable grey paint. Parts are shipped individually boxed and labeled.
-
BrandBrowning®
-
UPC662289162246
-
Manufacturer Part Number1042340
-
CountryUSA
-
Face Width3/4 in
-
Bushing TypeH
-
Pitch Diameter13.2 in (A)/12.66 in (3L)
-
MaterialCast Iron
-
TypeType 3
-
SeriesAK Series
-
Hub Projection0.56 in
-
Outside Diameter13-1/4 in
-
Bore Diameter1/2 to 1-1/2 in
-
Bore TypeBushed
-
Overall Length1-1/2 in
-
Suitable For Use WithGripBelt® 4L/A and 3L Cross Section V-Belt
- Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Largest Selection of H Bushed sheaves of any other manufacturer - Browning offers bushed sheaves in both A and B Combination (A/B) configuration
-
Alternative Part NumberAK134H
-
UNSPSC31171804
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
