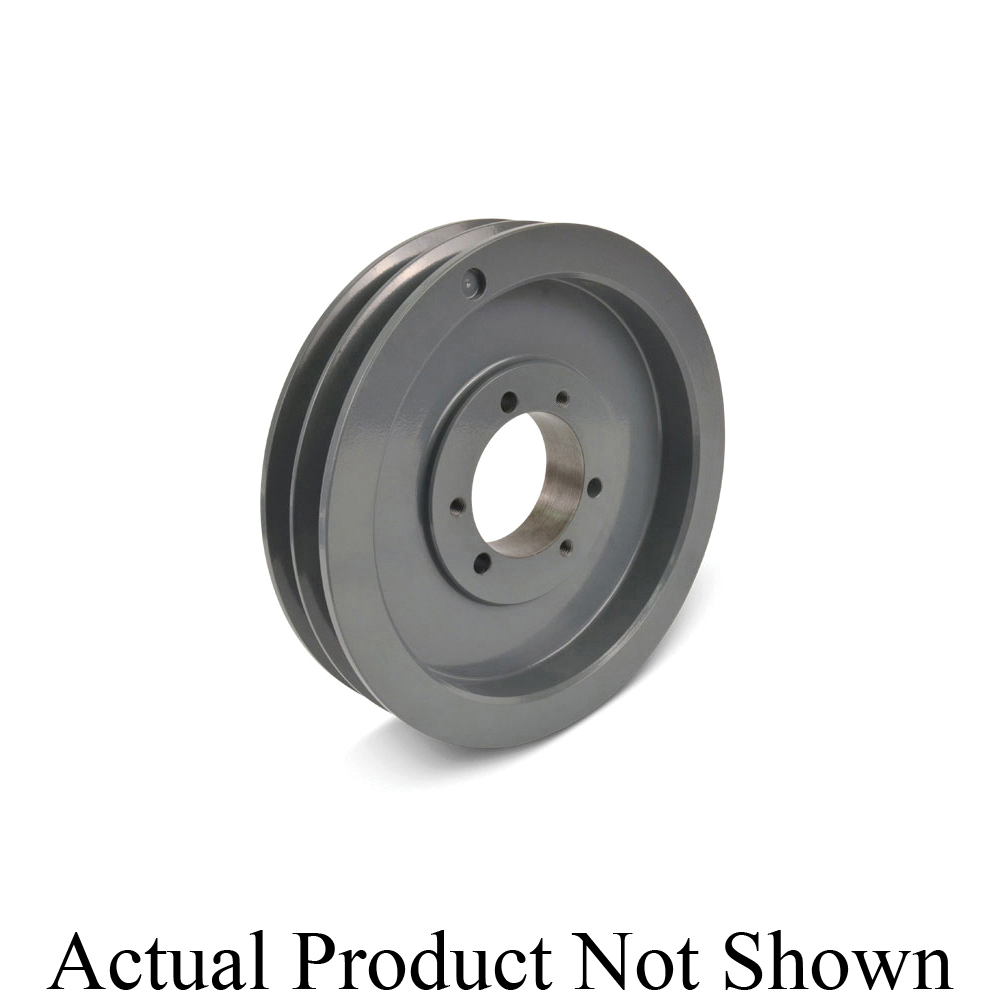

TB Wood's® Sure-Grip® 1203C Type B Webbed Classical V-Belt Sheave, 7/8 to 3-1/2 in QD® Bore, 12.4 in OD, 3 Grooves, 12.4 in Dia Pitch, 3-3/8 in W Face
TB Wood's® sheaves are constructed of fine grain, high tensile cast iron, and have been carefully engineered to assure maximum performance over a long life span. Behind each sheave is one of the most extensive engineering design and testing programs in the industry. With the advent of higher V-belt ratings, TB Wood's® engineers instituted additional careful test programs to ensure that each Wood's sheave would be capable of safely and dependably delivering the increased performance which was required by the new ratings. TB Wood's® engineers, using a special strain gage test stand, subject sheaves to tension and compression stresses far in excess of those encountered in actual operation.
-
BrandTB Wood's®
-
UPC698672031493
-
Manufacturer Part Number1203C
-
CountryUSA
-
Face Width3-3/8 in
-
Bushing TypeE
-
Pitch1 in
-
Pitch Diameter12.4 in
-
MaterialCast Iron
-
TypeType B Webbed
-
Hub Projection1-3/4 in
-
Number of Grooves3
-
Outside Diameter12.4 in
-
Bore Diameter7/8 to 3-1/2 in
-
Bore TypeQD®
-
Overall Length3-15/32 in
-
Suitable For Use With8V/8VX Cross Section V-Belts
- Easy installation and removal
- Bored to suit construction
-
UNSPSC31171804
-
Standards/ApprovalsANSI/ARPM IP-20|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
