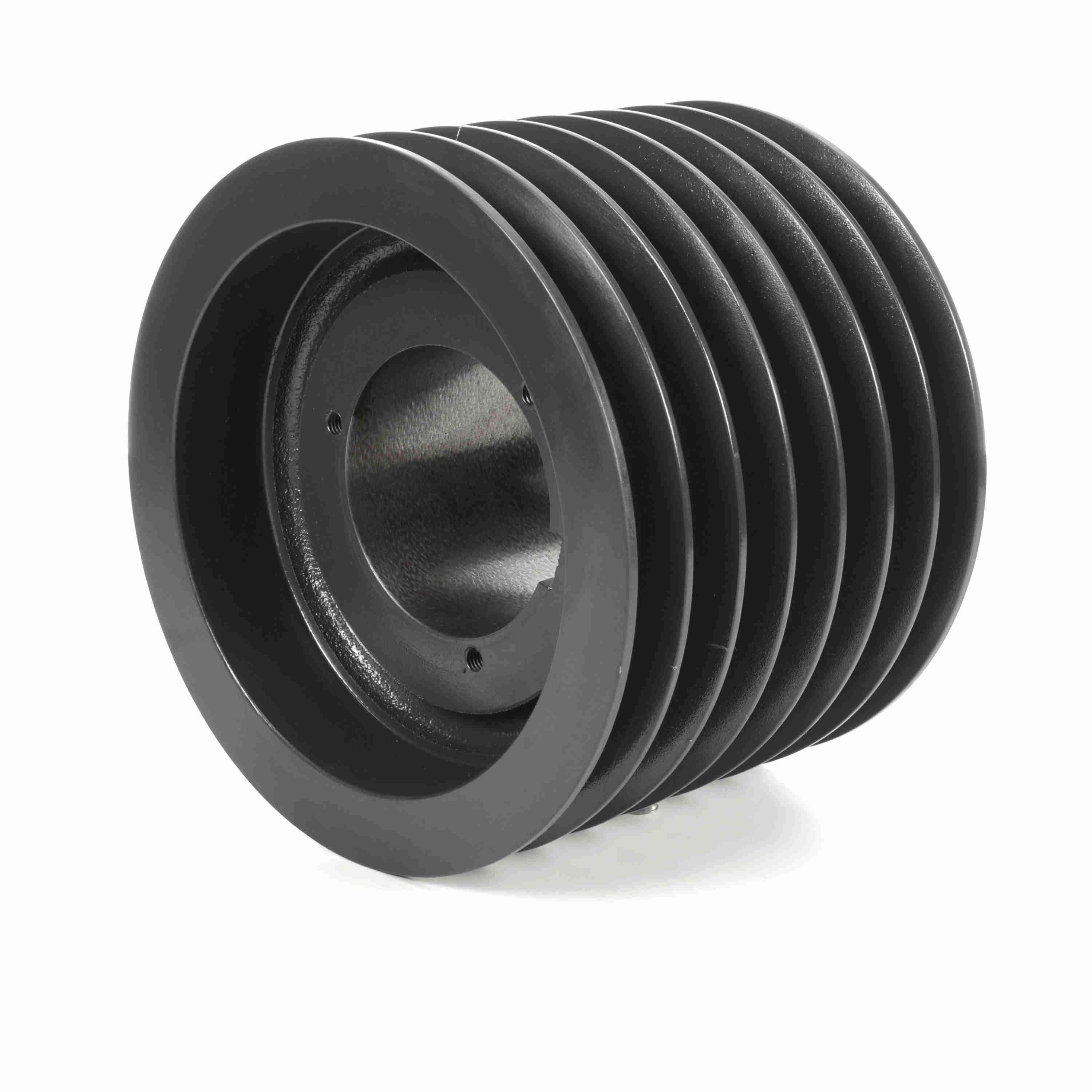

Browning® 1012293 Type 15 Web Multiple Sheave, 1.38 to 3.625 in Split Taper Bore, 9.8 in OD, 7 Grooves, 9.8 in Dia Pitch, 7-1/4 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289311163
-
Manufacturer Part Number1012293
-
CountryUSA
-
Face Width7-1/4 in
-
Bushing TypeR2
-
Pitch Diameter9.8 in
-
MaterialCast Iron
-
TypeType 15 Web
-
Number of Grooves7
-
Outside Diameter9.8 in
-
Bore Diameter1.38 to 3.625 in
-
Bore TypeSplit Taper
-
Overall Length7-1/4 in
-
Suitable For Use WithGripBelt® C Cross Section V-Belt
- Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
- Large Selection - MVP companion sheaves are offered in A/B, C, 5Vand 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry
- Statically Balanced - All MVP companion sheaves are statically balanced to assure smooth, vibration free performance
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
- The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
-
Alternative Part Number7C94R
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
