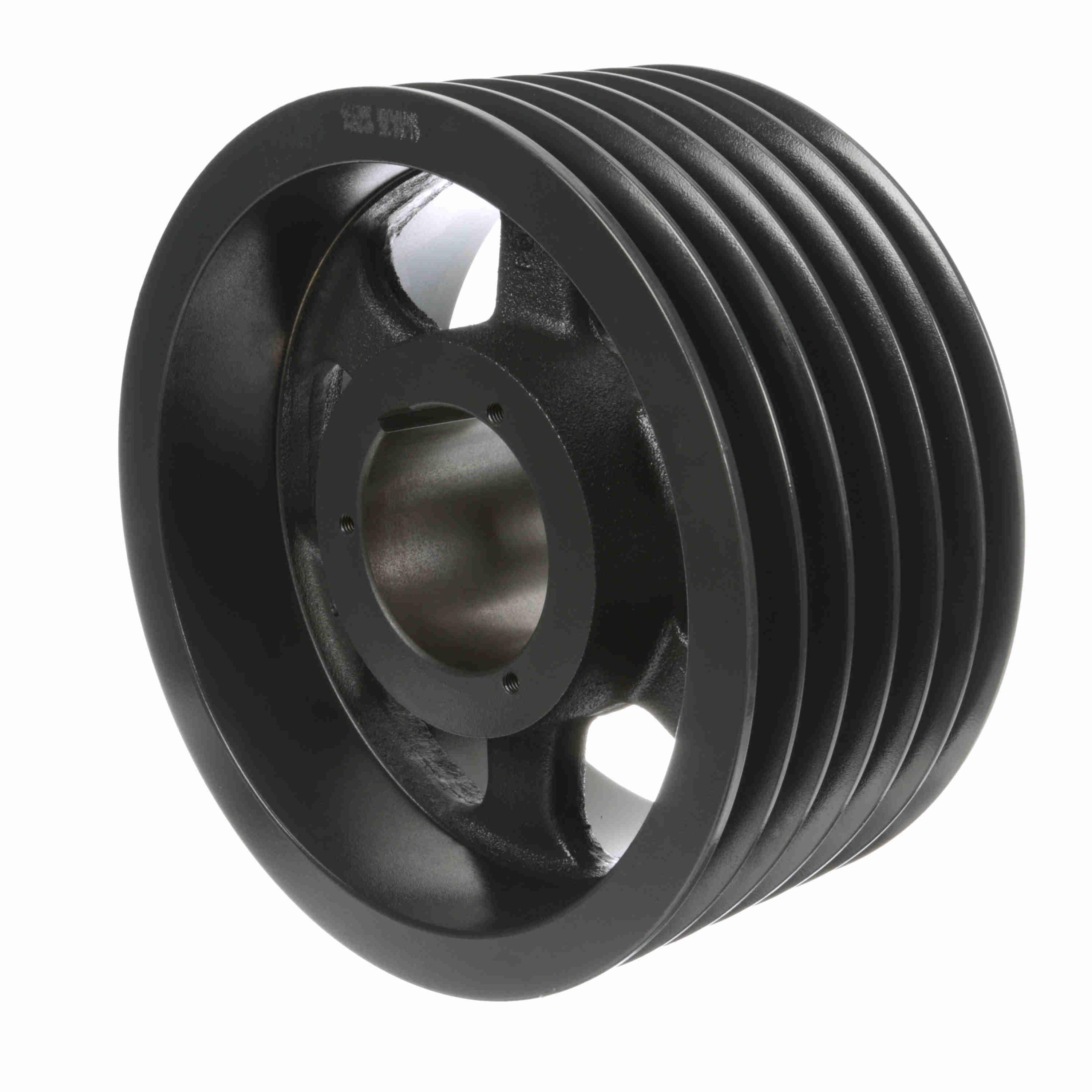

Browning® 1012913 Type 15 Arm Multiple Sheave, 1.38 to 3.625 in Split Taper Bore, 13.4 in OD, 6 Grooves, 13.4 in Dia Pitch, 6-1/4 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289146642
-
Manufacturer Part Number1012913
-
CountryUSA
-
Face Width6-1/4 in
-
Bushing TypeR2
-
Pitch Diameter13.4 in
-
MaterialCast Iron
-
TypeType 15 Arm
-
Number of Grooves6
-
Outside Diameter13.4 in
-
Bore Diameter1.38 to 3.625 in
-
Bore TypeSplit Taper
-
Overall Length6-9/32 in
-
Suitable For Use WithGripBelt® C Cross Section V-Belt
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number6C130R
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
