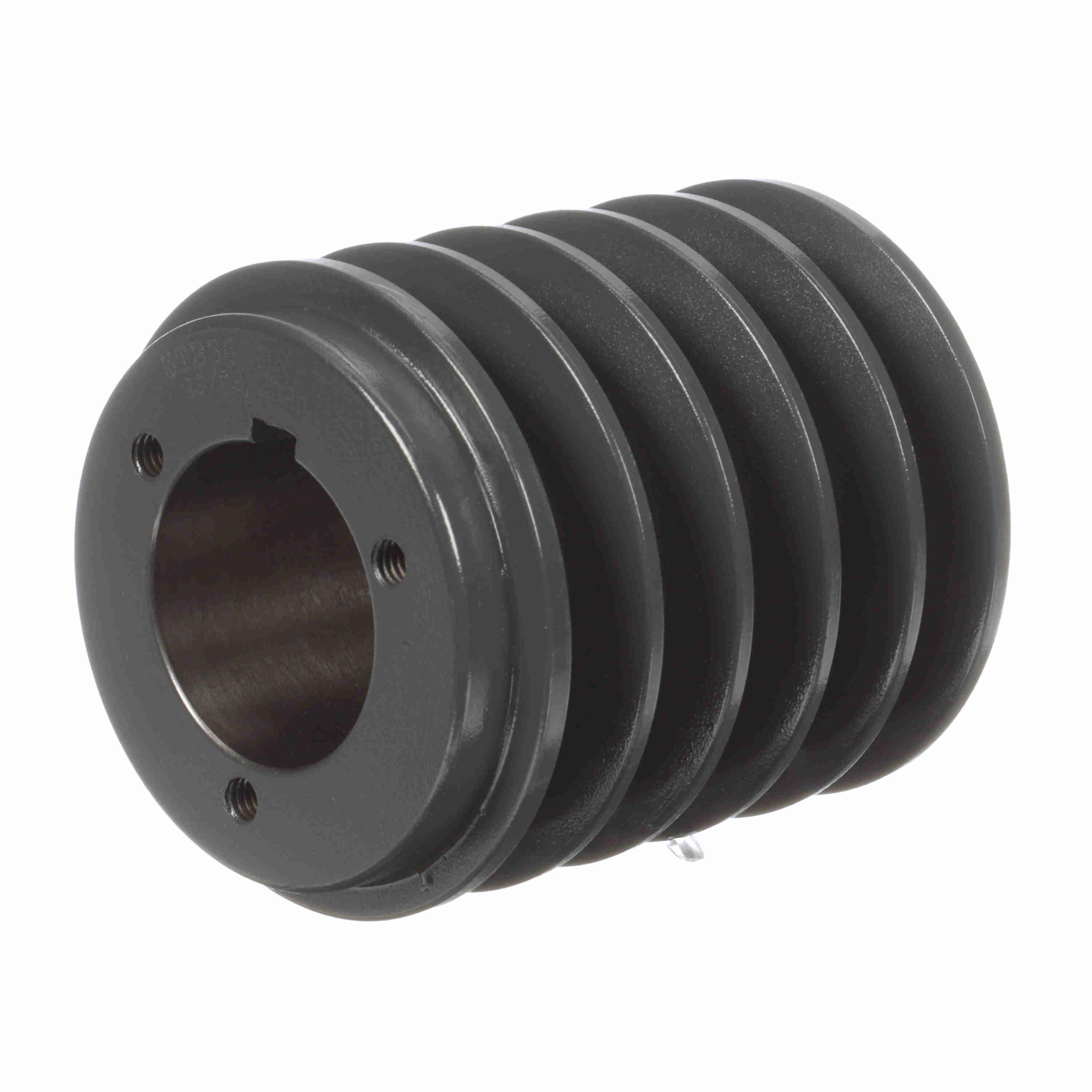

Browning® 1001288 TB Series Type 3 Multiple Sheave, 3/4 to 1-3/4 in Split Taper Bore, 3.95 in OD, 5 Grooves, 3.4 in (A)/3.9 in (B) Dia Pitch, 4 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289181148
-
Manufacturer Part Number1001288
-
CountryUSA
-
Face Width4 in
-
Bushing TypeP2
-
Pitch Diameter3.4 in (A)/3.9 in (B)
-
MaterialCast Iron
-
TypeType 3
-
SeriesTB Series
-
Number of Grooves5
-
Outside Diameter3.95 in
-
Bore Diameter3/4 to 1-3/4 in
-
Bore TypeSplit Taper
-
Overall Length5-5/16 in
-
Suitable For Use WithGripBelt® A and B Cross Section V-Belt
- Incorporates Browning® Split-Taper® bushing the only bushing system that provides a true key-to-key drive to both the shaft and the hub
- Combination groove all Browning® B sheaves permit the running of A and B belts to be run in them and thus providing a variety of different pitch diameters and horsepower
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
-
Alternative Part Number5TB36
-
UNSPSC26111806
-
Package Description1/PK
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Catalog
-
Warranty Information
-
Instruction/Installation Manual
