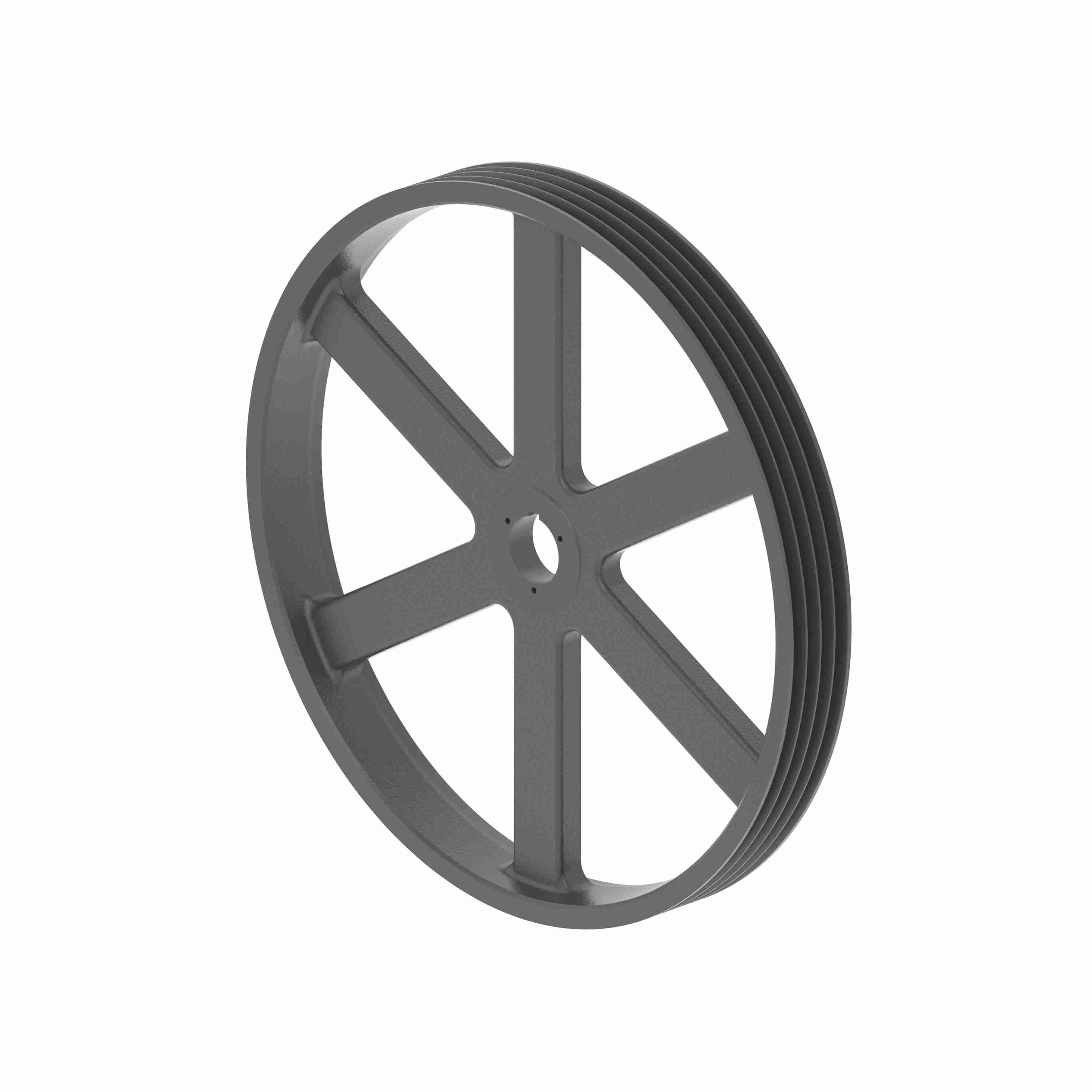

Browning 4-GRV B OR 5-V-BELT SHEAVES BRW 4-B-5-V-278
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289036974
-
Manufacturer Part Number3694718
-
CountryUSA
-
Face Width3-5/32 in
-
Bushing TypeB
-
Pitch Diameter27.5 in (A)/28.1 in (B)/27.9 in (5V)
-
MaterialCast Iron
-
TypeType 4 Arm
-
SeriesB5V®
-
Number of Grooves4
-
Outside Diameter28.08 in
-
Bore Diameter1/2 to 2-7/16 in
-
Bore TypeSplit Taper
-
Overall Length3-13/64 in
-
Suitable For Use WithGripBelt® A and B, 5V Cross Section V-Belt
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
- Assures less vibration and Smoother , quieter performance
- Notched belts provide higher horsepower than wrapped belts
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
-
Alternative Part Number4B5V278
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
