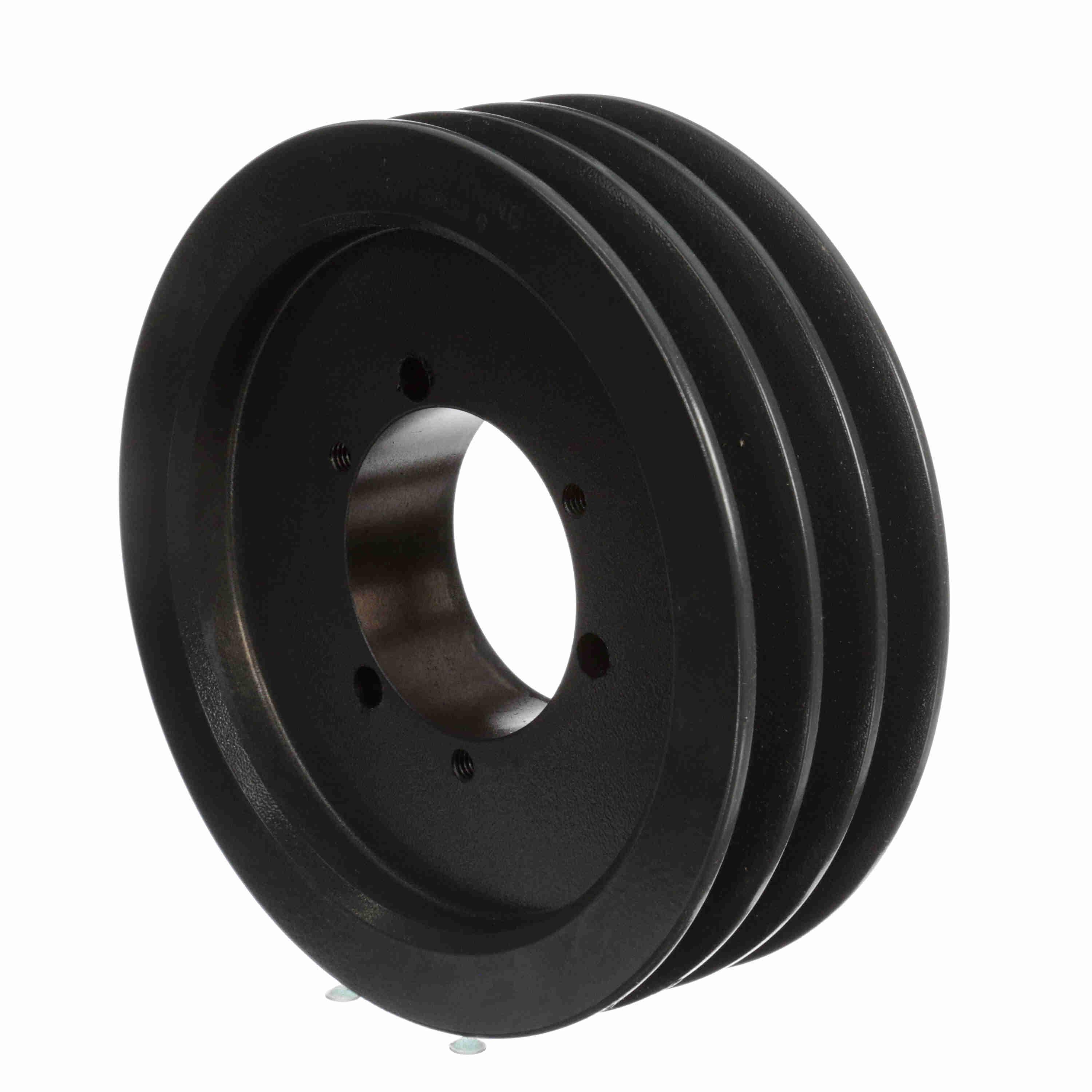

Browning® 1004654 Type D3 Multiple Sheave, 1/2 to 2-5/8 in QD® Bore, 7.68 in OD, 3 Grooves, 7.2 in (A)/7.7 in (B) Dia Pitch, 2-7/16 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289363186
-
Manufacturer Part Number1004654
-
CountryUSA
-
Face Width2-7/16 in
-
Bushing TypeSK
-
Pitch Diameter7.2 in (A)/7.7 in (B)
-
MaterialCast Iron
-
TypeType D3
-
Hub Projection5/16 in
-
Number of Grooves3
-
Outside Diameter7.68 in
-
Bore Diameter1/2 to 2-5/8 in
-
Bore TypeQD®
-
Overall Length2-3/4 in
-
Suitable For Use WithGripbelt® A and B Cross Section Belts
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Combination Groove - All Browning B Sheaves permit the running of A and B Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number3B74SK
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
