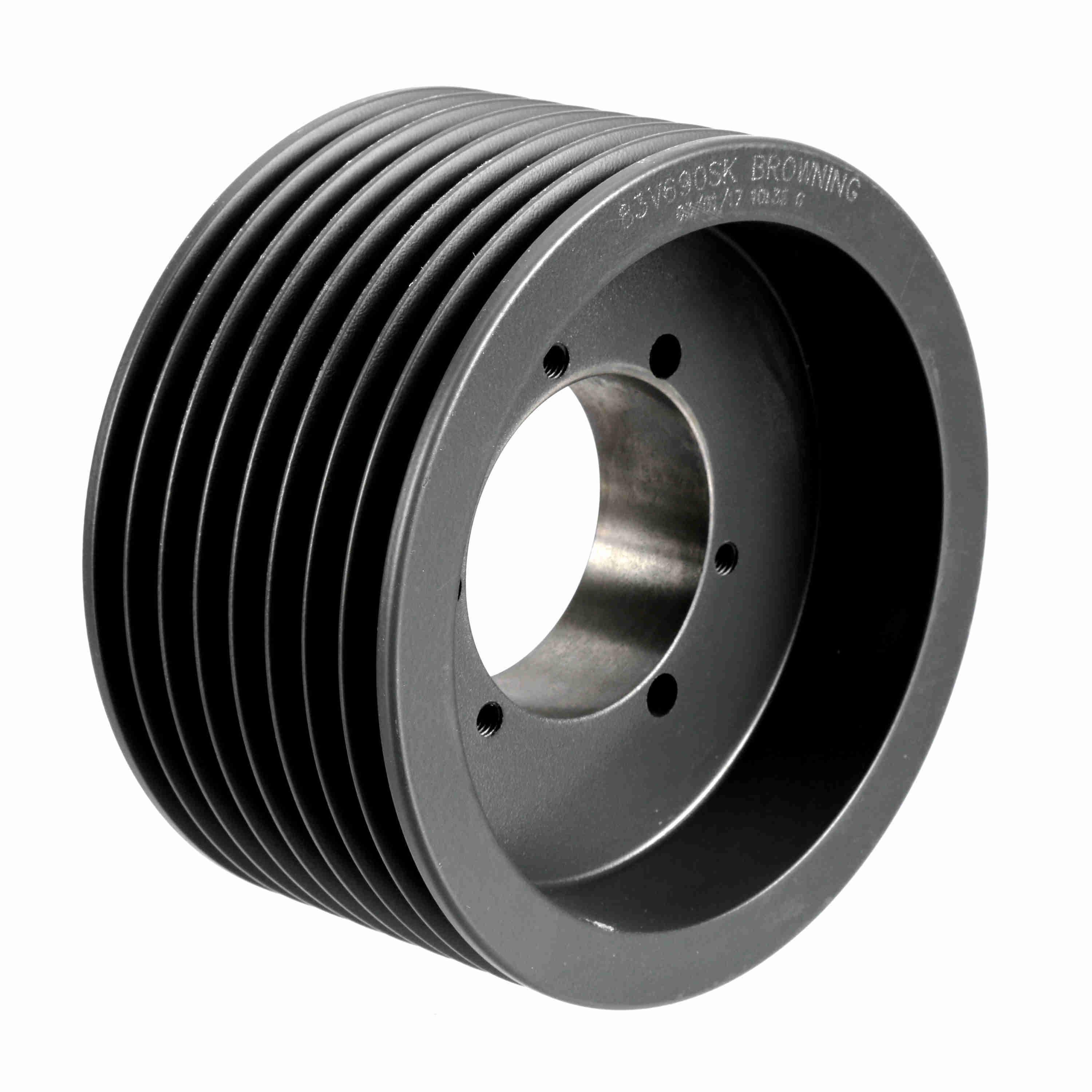

Browning® 1065408 Type A Solid Multiple Sheave, 1/2 to 2-15/16 in QD® Bore, 8 in OD, 8 Grooves, 7.95 in Dia Pitch, 3-17/32 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289333103
-
Manufacturer Part Number1065408
-
CountryUSA
-
Face Width3-17/32 in
-
Bushing TypeSF
-
Pitch Diameter7.95 in
-
MaterialCast Iron
-
TypeType A Solid
-
Number of Grooves8
-
Outside Diameter8 in
-
Bore Diameter1/2 to 2-15/16 in
-
Bore TypeQD®
-
Suitable For Use WithGripBelt® 3V Cross Section V-Belt
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
-
Alternative Part Number83V800SF
-
UNSPSC26111806
-
Package Description1/PK
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
