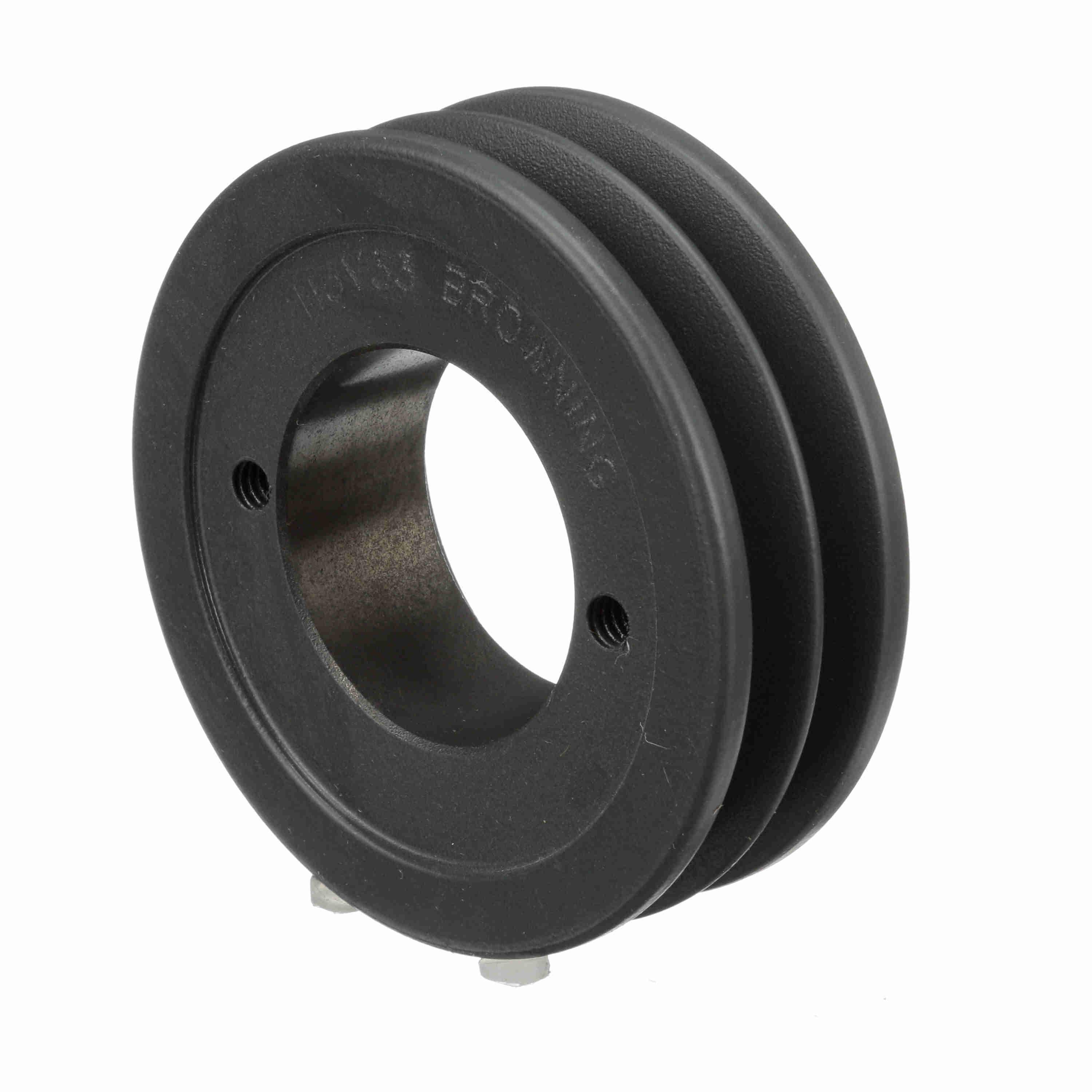

Browning® 1059369 Type H2 Multiple Sheave, 3/8 to 1-1/2 in Split Taper Bore, 3.35 in OD, 2 Grooves, 3.3 in Dia Pitch, 1-3/32 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289168910
-
Manufacturer Part Number1059369
-
CountryUSA
-
Face Width1-3/32 in
-
Bushing TypeH
-
Pitch Diameter3.3 in
-
MaterialCast Iron
-
TypeType H2
-
Hub Projection13/32 in
-
Number of Grooves2
-
Outside Diameter3.35 in
-
Bore Diameter3/8 to 1-1/2 in
-
Bore TypeSplit Taper
-
Overall Length1-21/32 in
-
Suitable For Use With3V-Cross Section V-Belts
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
-
Alternative Part Number2H3V33
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
