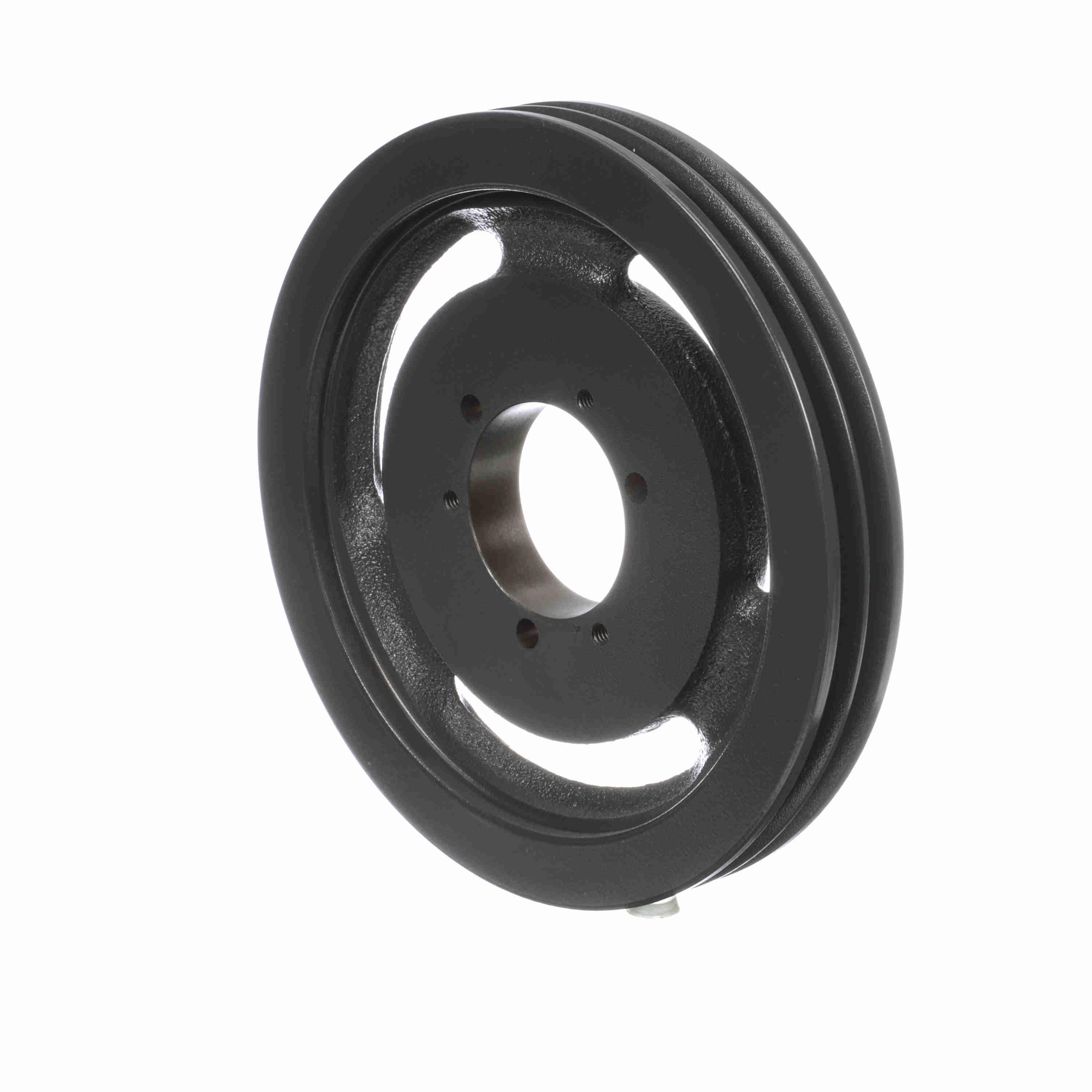

Browning® 1064609 Multiple Sheave, 1/2 to 2 in QD® Bore, 8 in OD, 2 Grooves, 7.95 in Dia Pitch, 1-3/32 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289333691
-
Manufacturer Part Number1064609
-
CountryUSA
-
Face Width1-3/32 in
-
Bushing TypeSDS
-
Pitch Diameter7.95 in
-
MaterialCast Iron
-
Hub Projection0.41875 in
-
Number of Grooves2
-
Outside Diameter8 in
-
Bore Diameter1/2 to 2 in
-
Bore TypeQD®
-
Overall Length1.5125 in
-
Suitable For Use With3V-Cross Section V-Belts
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number23V800SDS
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
