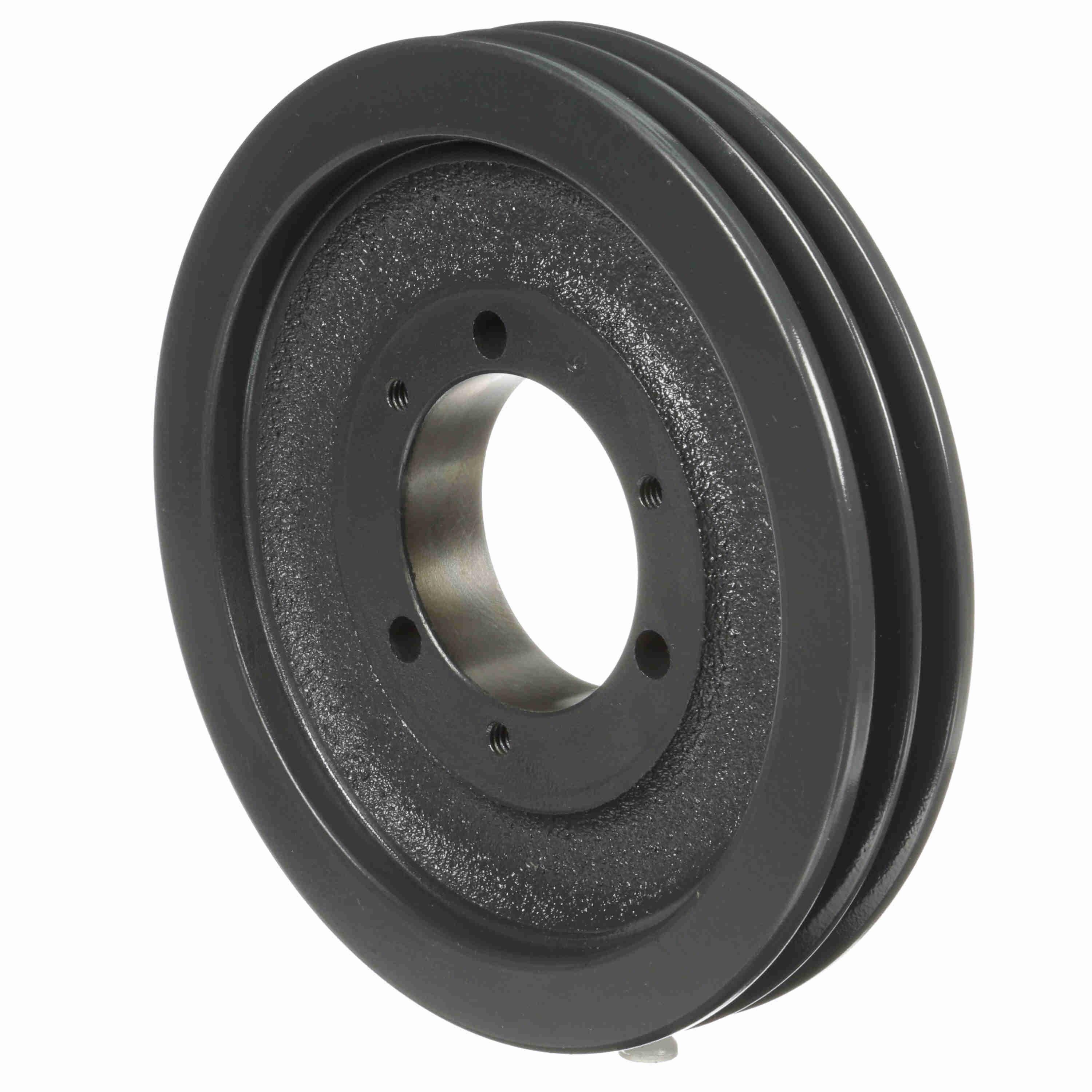

Browning® 1064583 Multiple Sheave, 1/2 to 2 in QD® Bore, 6-1/2 in OD, 2 Grooves, 6.45 in Dia Pitch, 1-3/32 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289353637
-
Manufacturer Part Number1064583
-
CountryUSA
-
Face Width1-3/32 in
-
Bushing TypeSDS
-
Pitch Diameter6.45 in
-
MaterialCast Iron
-
Hub Projection0.41875 in
-
Number of Grooves2
-
Outside Diameter6-1/2 in
-
Bore Diameter1/2 to 2 in
-
Bore TypeQD®
-
Overall Length1.5125 in
-
Suitable For Use With3V-Cross Section V-Belts
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
-
Alternative Part Number23V650SDS
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
