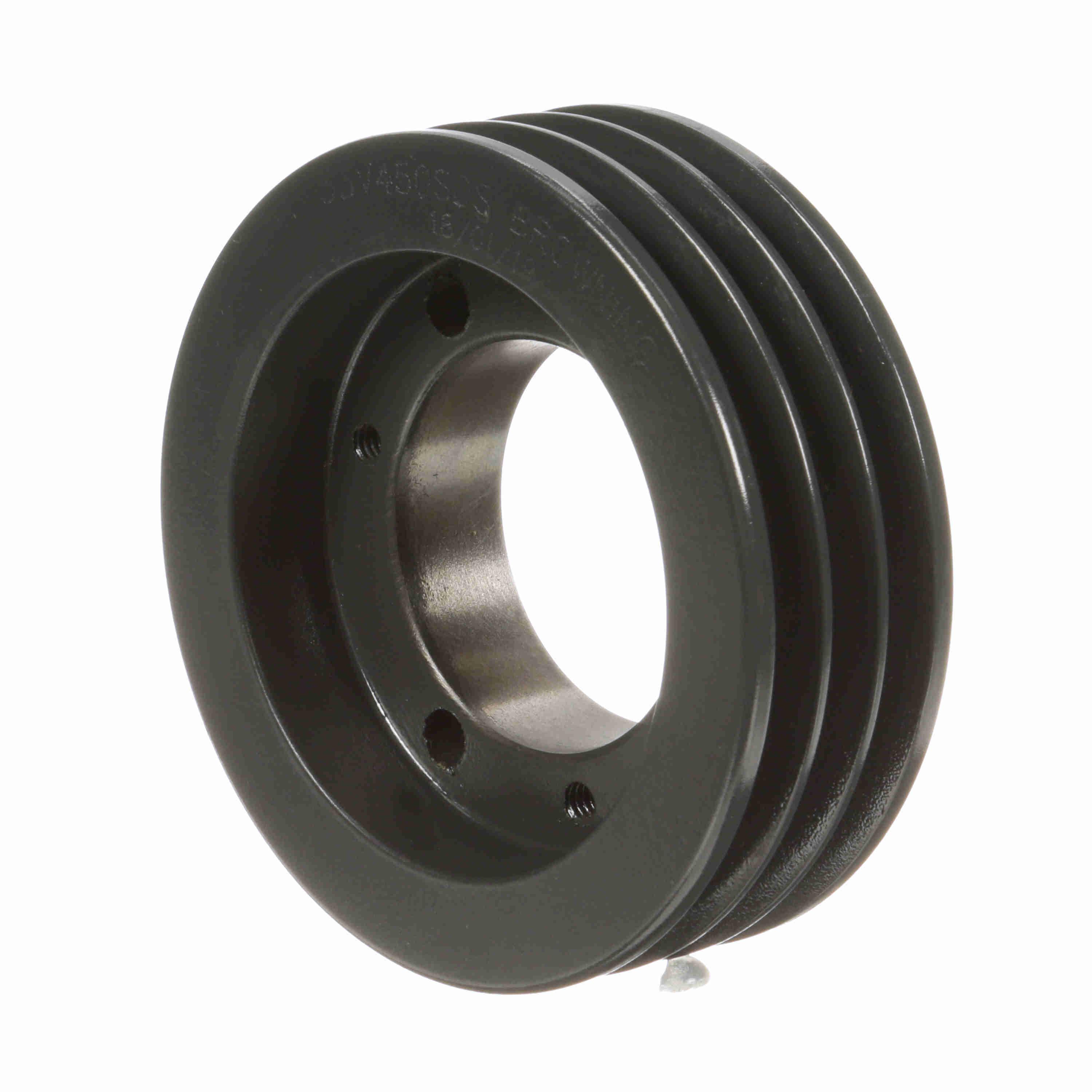

Browning® 1064724 Multiple Sheave, 1/2 to 2 in QD® Bore, 4-1/2 in OD, 3 Grooves, 4.45 in Dia Pitch, 1-1/2 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289333769
-
Manufacturer Part Number1064724
-
CountryUSA
-
Face Width1-1/2 in
-
Bushing TypeSDS
-
Pitch Diameter4.45 in
-
MaterialCast Iron
-
Hub Projection0.04375 in
-
Number of Grooves3
-
Outside Diameter4-1/2 in
-
Bore Diameter1/2 to 2 in
-
Bore TypeQD®
-
Overall Length1.54375 in
-
Suitable For Use With3V-Cross Section V-Belts
- Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible
- Large Selection - MVP companion sheaves are offered in A/B, C, 5Vand 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry
- Statically Balanced - All MVP companion sheaves are statically balanced to assure smooth, vibration free performance
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
- The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
-
Alternative Part Number33V450SDS
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
