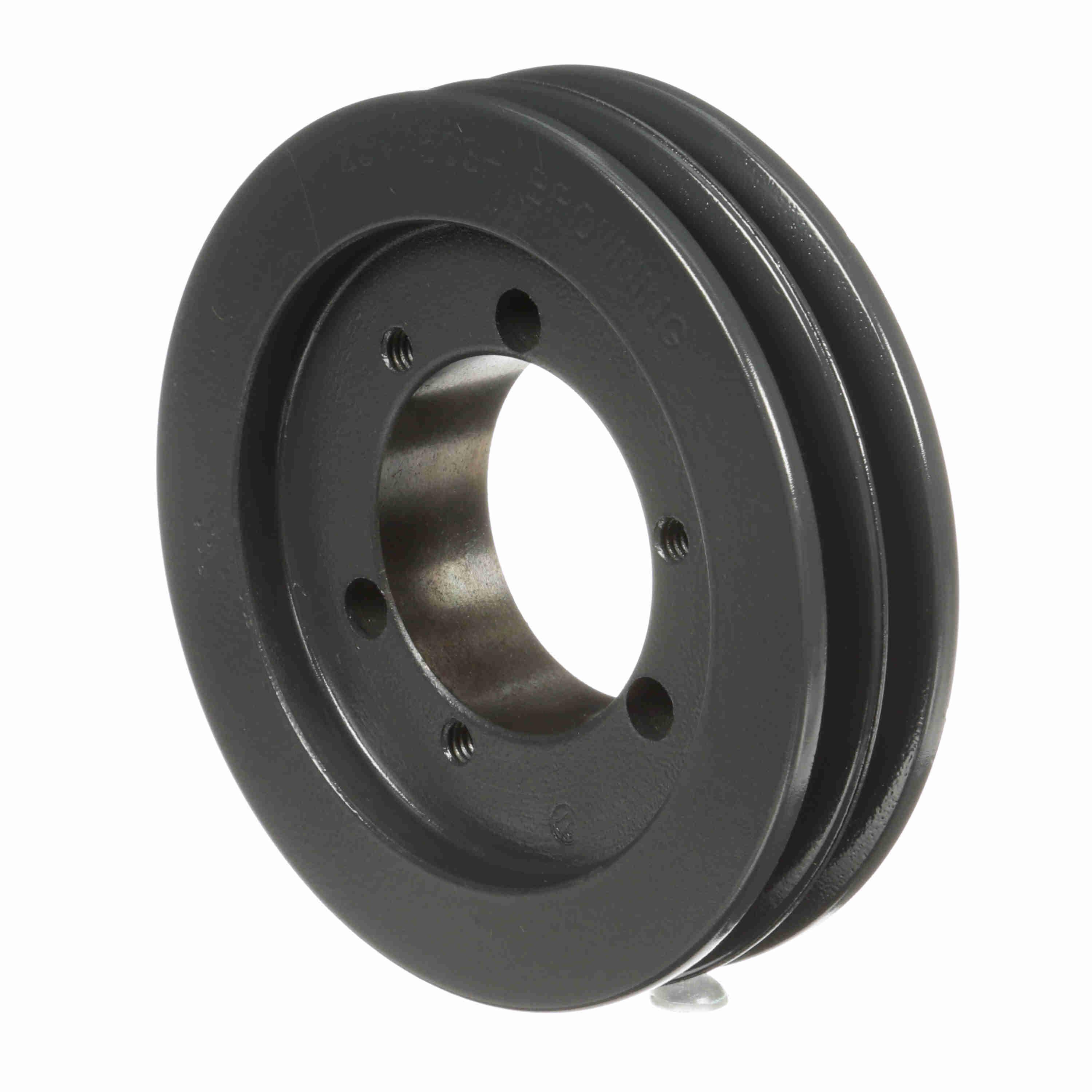

Browning® 1064526 Multiple Sheave, 1/2 to 1-5/8 in QD® Bore, 4-1/2 in OD, 2 Grooves, 4.45 in Dia Pitch, 1-3/32 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289393671
-
Manufacturer Part Number1064526
-
CountryUSA
-
Face Width1-3/32 in
-
Bushing TypeSH
-
Pitch Diameter4.45 in
-
MaterialCast Iron
-
Hub Projection0.575 in
-
Number of Grooves2
-
Outside Diameter4-1/2 in
-
Bore Diameter1/2 to 1-5/8 in
-
Bore TypeQD®
-
Overall Length1.66875 in
-
Suitable For Use With3V-Cross Section V-Belts
- Largest Selection of finished bore sheaves of any other manufacturer - Browning offers finished bore sheaves in both A and B Combination (A/B) configuration
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Combination Groove - All Browning BK Sheaves permit the running of A, 4L, B and 5L Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number23V450SH
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
