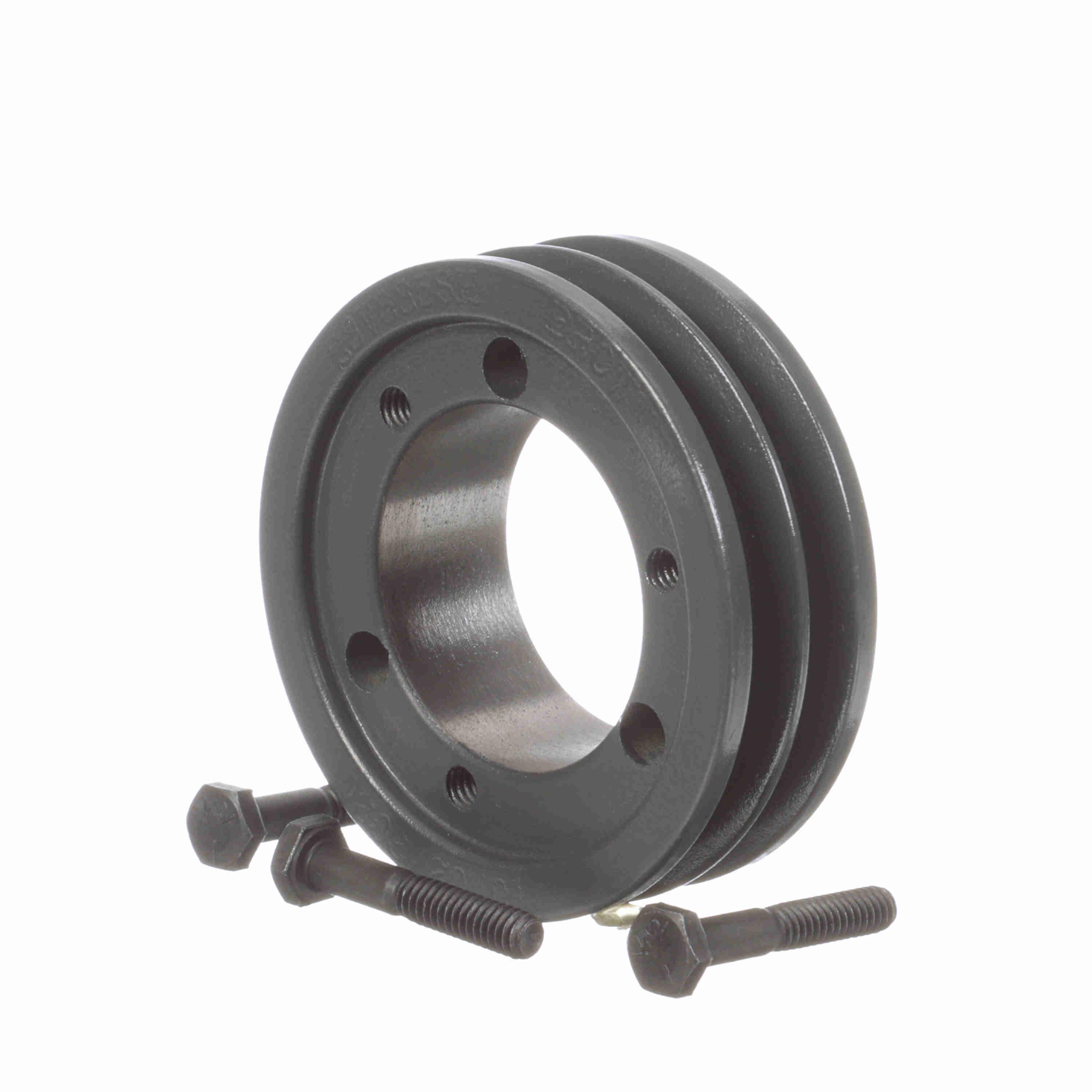

Browning® 1064492 Multiple Sheave, 1/2 to 1-5/8 in QD® Bore, 3.35 in OD, 2 Grooves, 3.3 in Dia Pitch, 1-3/32 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289333615
-
Manufacturer Part Number1064492
-
CountryUSA
-
Face Width1-3/32 in
-
Bushing TypeSH
-
Pitch Diameter3.3 in
-
MaterialCast Iron
-
Hub Projection0.575 in
-
Number of Grooves2
-
Outside Diameter3.35 in
-
Bore Diameter1/2 to 1-5/8 in
-
Bore TypeQD®
-
Overall Length1.66875 in
-
Suitable For Use With3V-Cross Section V-Belts
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- 1 and 2 Grooves are available to meet any fractional horsepower requirement
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number23V335SH
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
