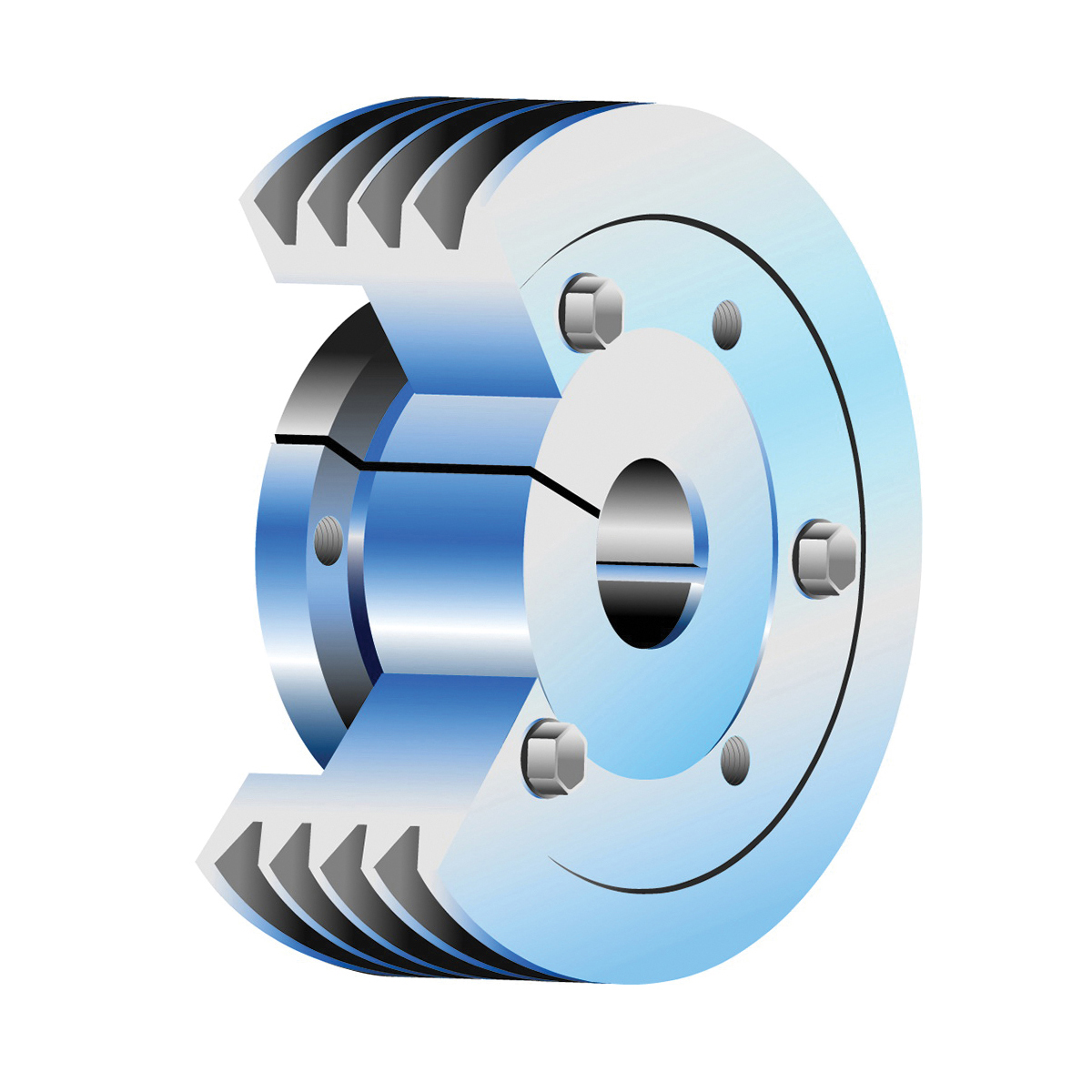

Gates® Power Transmission Super HC® QD5/5V8.50 Heavy Duty Multiple Groove Sheave, 7/8 to 3-1/2 in QD® Bore, 8-1/2 in OD, 5 Grooves, 8.4 in Dia Pitch, 3-3/4 in W Face
Gates QD, or "Quick Disconnect", sheaves are designed for easy, convenient use with your Super HC® and Super HC PowerBand® belts.
-
BrandGates® Power Transmission
-
UPC072053100310
-
Manufacturer Part NumberQD5/5V8.50
-
CountryUSA
-
Face Width3-3/4 in
-
Bushing TypeE
-
Pitch Diameter8.4 in
-
MaterialDuctile Iron
-
TypeHeavy Duty
-
Series7874
-
Number of Grooves5
-
Outside Diameter8-1/2 in
-
Bore Diameter7/8 to 3-1/2 in
-
Bore TypeQD®
-
Overall Length2-3/4 in
-
Suitable For Use WithSuper HC® and Super HC® PowerBand® Belts
- Full split in bushing allows easy installation and removal
- Precise sheave design produces positive, press fit to shaft
- Narrower sheave design is precision manufactured, static balanced and transmits higher horsepower
-
Alternative Part Number78745085
-
UNSPSC31171804
-
Package DescriptionEACH
-
