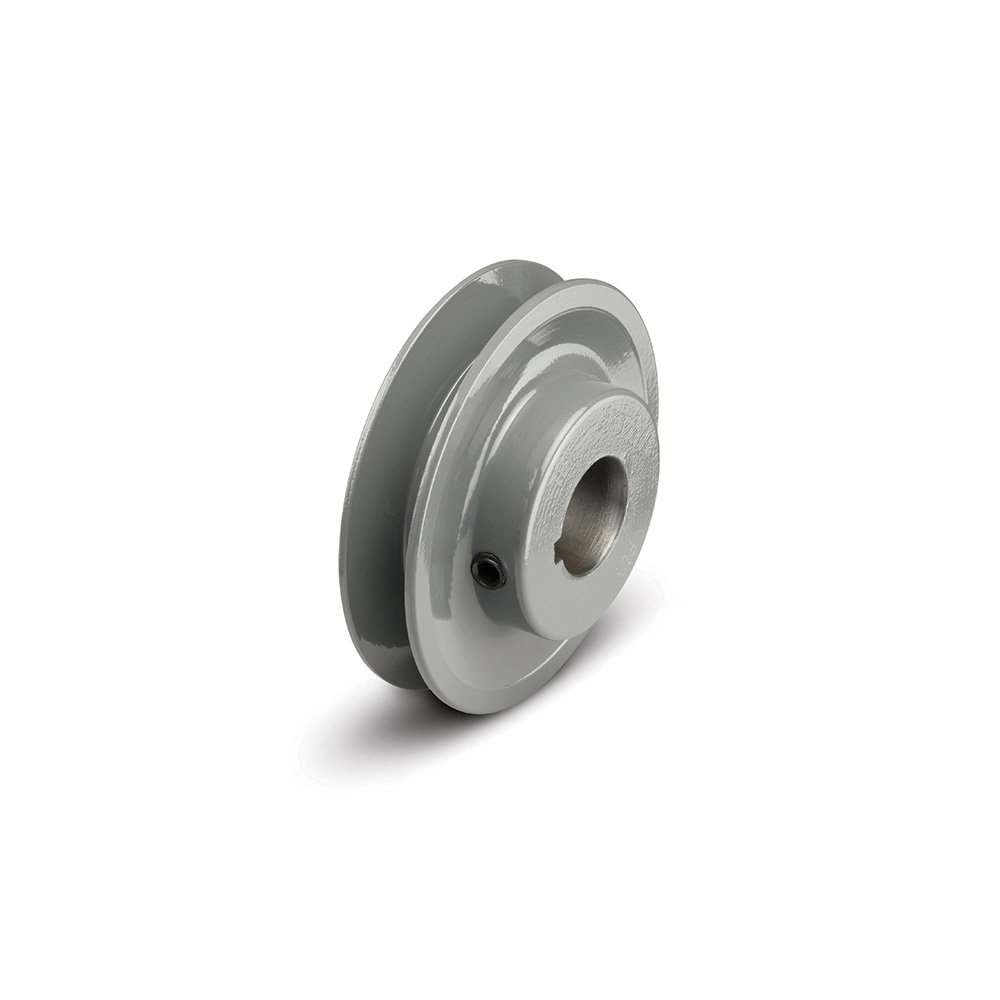

IDC Products 1-GRV 3/4"-ID A-BELT SHEAVES IDC AK-028-3/4
TB Wood’s® light-duty sheaves are available in two types, both with one and two grooves. AK sheaves are made to accommodate A (4L) belts, BK sheaves are made for A (4L) or B (5L) belts. The two lines of sheaves have identical pitch diameters when using A or 4L belts. Wood’s light-duty sheaves can be equipped with Wood’s QT Sure-Grip® QD-type bushings, quick-detachable tapered bushings that are split through flange and tapered surface to provide a true clamp that is comparable to a shrink fit.
-
BrandTB Wood's®
-
UPC698672091138
-
Manufacturer Part NumberAK2834
-
CountryUSA
-
Face Width0.66 in
-
Bushing TypeBTS
-
Pitch Diameter2.85 in
-
MaterialCast Iron
-
TypeLight-Duty Web
-
Hub Diameter1-11/16 in
-
Hub Projection7/16 in
-
Number of Grooves1
-
Outside Diameter2.85 in
-
Bore Diameter3/4 in
-
Bore TypeFinished
-
Overall Length1-3/32 in
-
Suitable For Use WithA/4L/3L Cross Section V-Belts
- Easy-mount, Sure-Grip® quick detachable (QD®) bushings
- Efficient, economical and light weight
-
UNSPSC31171804
-
Standards/ApprovalsPROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
