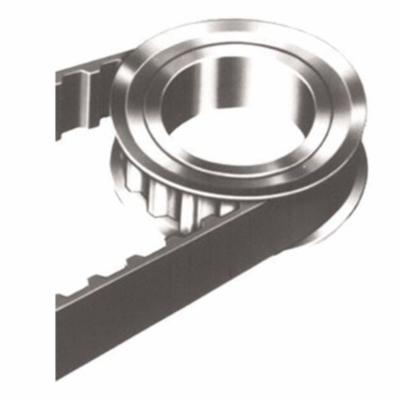

Gates® Power Transmission PowerGrip® TL26H100 Heavy Duty Timing Pulley, 1/2 to 2-1/8 in Taper-Lock® Bore, 26 Grooves, 4.138 in Dia Pitch
PowerGrip Pulleys provide optimum performance for all constructions of PowerGrip GT, PowerGrip HTD and PowerGrip Timing belts._x000D_
-
BrandGates® Power Transmission
-
UPC72053085433
-
Manufacturer Part NumberTL26H100
-
CountryUSA|Canada
-
Bushing Type2012
-
Pitch1/2 in
-
Pitch Diameter4.138 in
-
MaterialDuctile Iron
-
Flange Diameter4.37 in
-
TypeHeavy Duty
-
Series7881
-
Number of Grooves26
-
Bore Diameter1/2 to 2-1/8 in
-
Bore TypeTaper-Lock®
-
Suitable For Use With3/4 in and 1 in W PowerGrip® Timing Belts
- Full split in bushing allows easy installation and removal
- Precise sprocket design produces positive, press fit to shaft
- Precision manufactured and static balanced to eliminate sprocket wobble
-
Alternative Part Number78817045
-
UNSPSC26111807
-
Package DescriptionEACH
-
