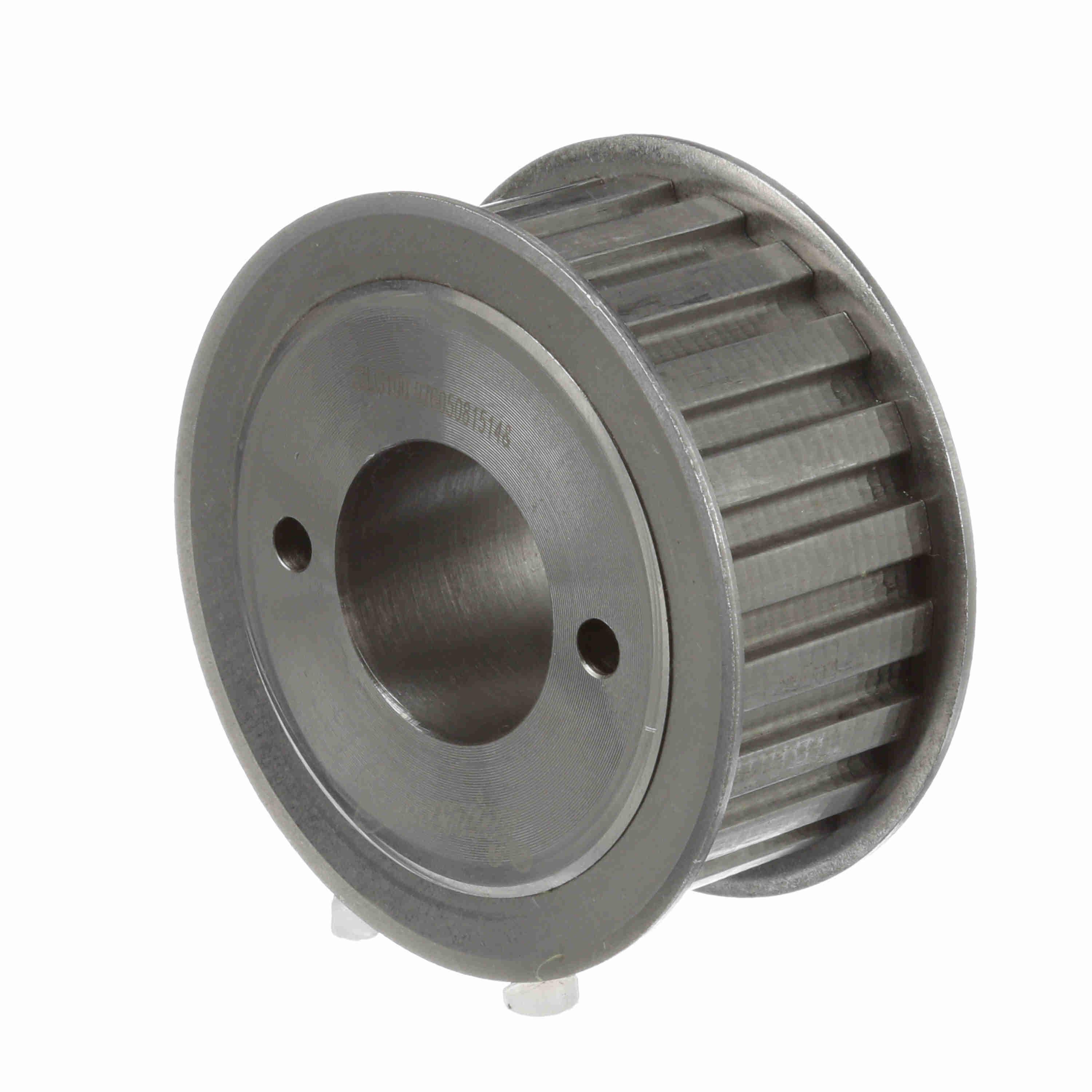

Browning 22-T L-PITCH G-BUSH T/BELT SHEAVES BRW 22-L-G-100
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowning®
-
UPC662289133437
-
Manufacturer Part Number1056563
-
CountryUSA
-
Face Width1-1/4 in
-
Bushing TypeG
-
Pitch3/8 in
-
Pitch Diameter2.626 in
-
Flange Diameter2/7/2008 in
-
TypeType 4
-
Hub Diameter2 in
-
Hub Projection7/16 in
-
Number of Grooves22
-
Outside Diameter2.596 in
-
Bore Diameter3/8 to 1 in
-
Bore TypeSplit Taper
-
Overall Length1/7/2008 in
-
Suitable For Use With1 in W Type L100 Belt
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
-
Alternative Part Number22LG100
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
