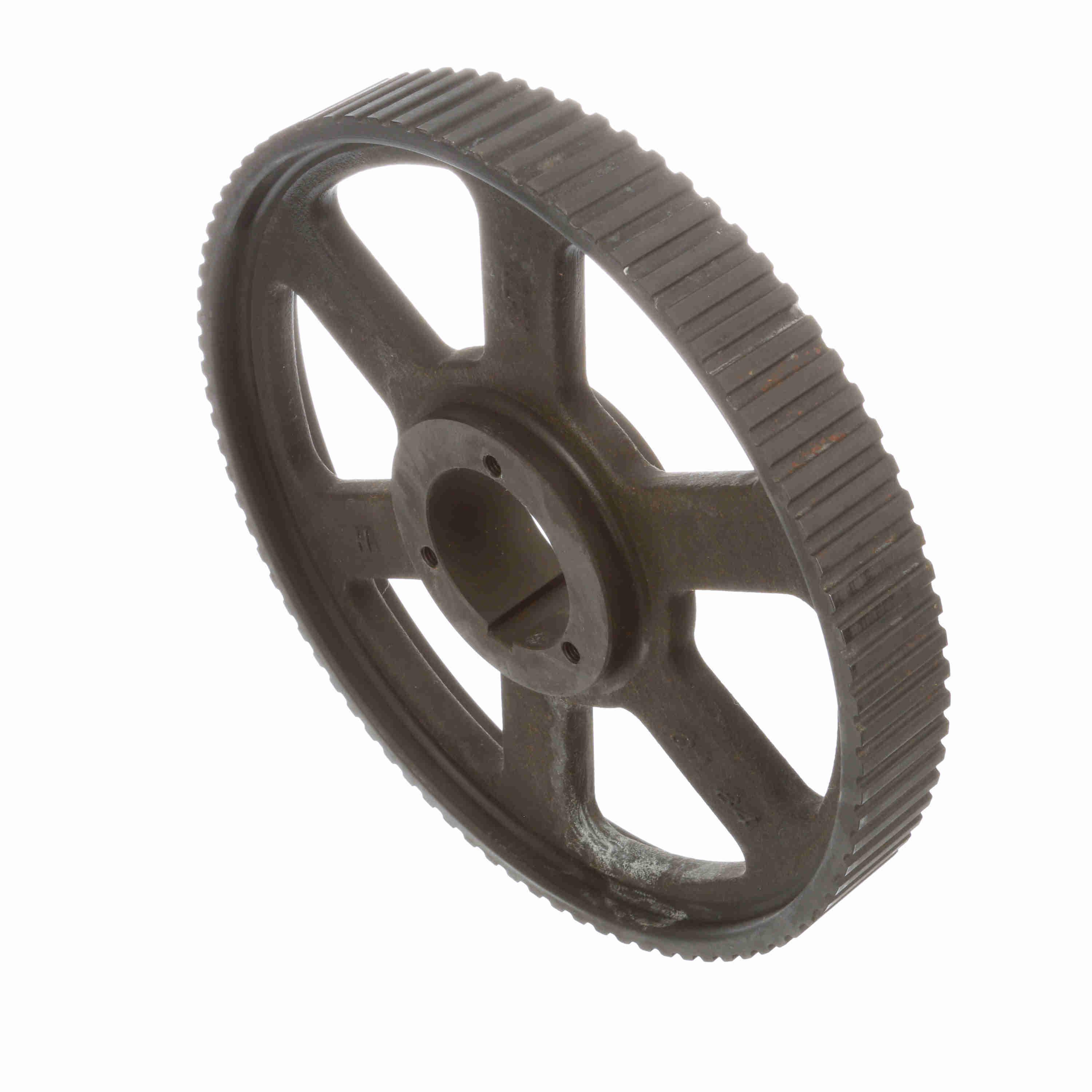

Browning® Gearbelt® 1057264 Type 13 Synchronous Timing Pulley, 3/4 to 2-11/16 in Split Taper Bore, 13.315 in OD, 84 Grooves, 13.369 in Dia Pitch, 1-3/4 in W Face
Browning® Gearbelt® 1057264 Type 13 Synchronous Timing Pulley, 3/4 to 2-11/16 in Split Taper Bore, 13.315 in OD, 84 Grooves, 13.369 in Dia Pitch, 1-3/4 in W Face
-
BrandBrowning®
-
UPC662289224036
-
Manufacturer Part Number1057264
-
CountryUSA
-
Face Width1-3/4 in
-
Bushing TypeQ1
-
Pitch1/2 in
-
Pitch Diameter13.369 in
-
MaterialCast Iron
-
TypeType 13
-
Hub Diameter4-1/8 in
-
Hub Projection3/4 in
-
Number of Grooves84
-
Outside Diameter13.315 in
-
Bore Diameter3/4 to 2-11/16 in
-
Bore TypeSplit Taper
-
Overall Length2-25/32 in
-
Suitable For Use With1-1/2 in W Type H150 Belt
- Constant speed no slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
- Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- High modulus strength member, needs minimum take-up
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Wide belt speed range
-
Alternative Part Number84HQ150
-
UNSPSC26111807
-
Package Description1/PK
-
Warranty1 Year
-
Instruction/Installation Manual
-
Warranty Information
-
Catalog
