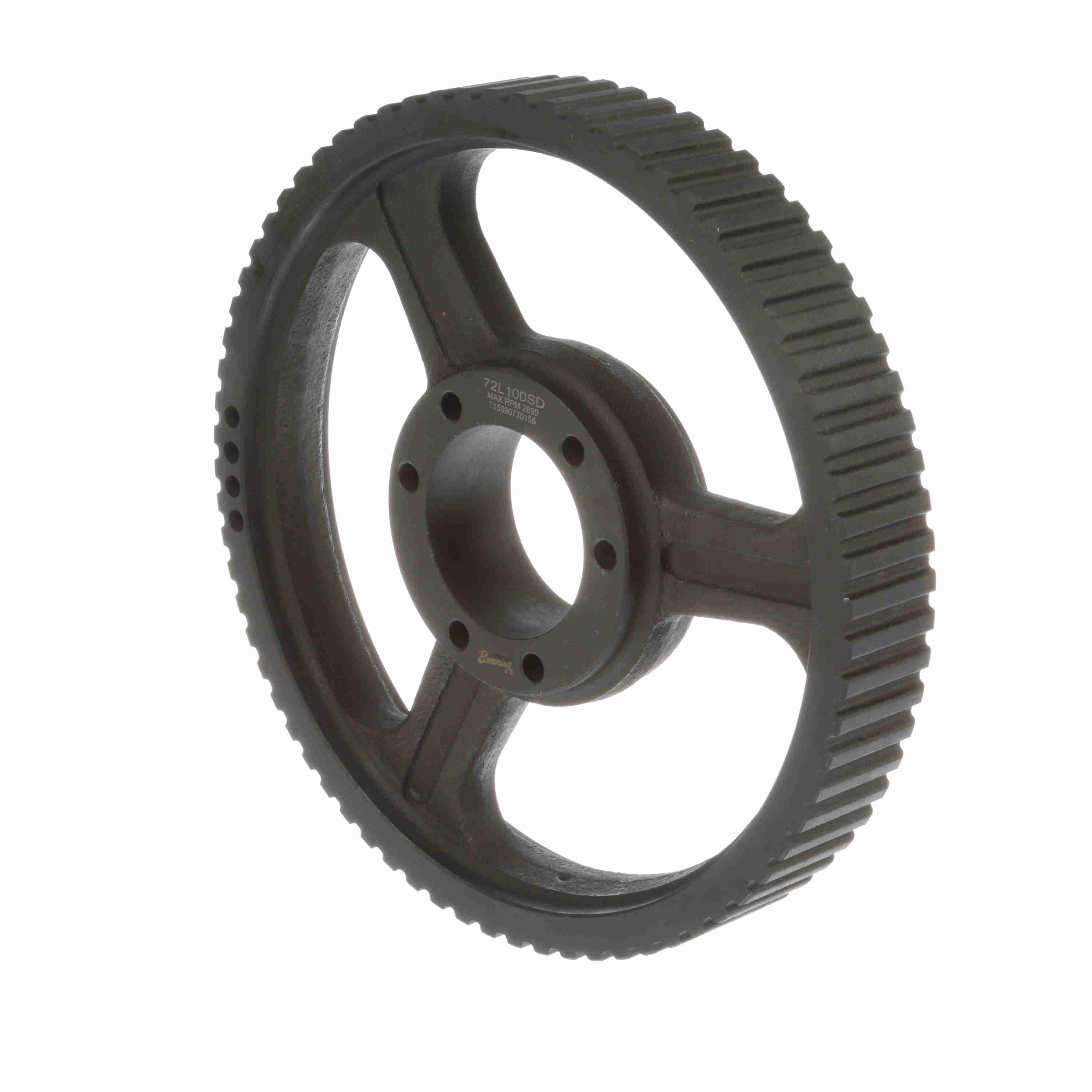

Browning® Gearbelt® 3513470 Type B Arm Synchronous Timing Pulley, 1/2 to 2 in QD® Bore, 8.564 in OD, 72 Grooves, 8.594 in Dia Pitch, 1-1/4 in W Face
Browning® Gearbelt® 3513470 Type B Arm Synchronous Timing Pulley, 1/2 to 2 in QD® Bore, 8.564 in OD, 72 Grooves, 8.594 in Dia Pitch, 1-1/4 in W Face
-
BrandBrowning®
-
UPC662289353842
-
Manufacturer Part Number3513470
-
CountryUSA
-
Face Width1-1/4 in
-
Bushing TypeSD
-
Pitch Diameter8.594 in
-
TypeType B Arm
-
Number of Grooves72
-
Outside Diameter8.564 in
-
Bore Diameter1/2 to 2 in
-
Bore TypeQD®
-
Suitable For Use With1 in W Type L100 Belt
- Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
- Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- High modulus strength member, needs minimum take-up
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number72L100SD
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
