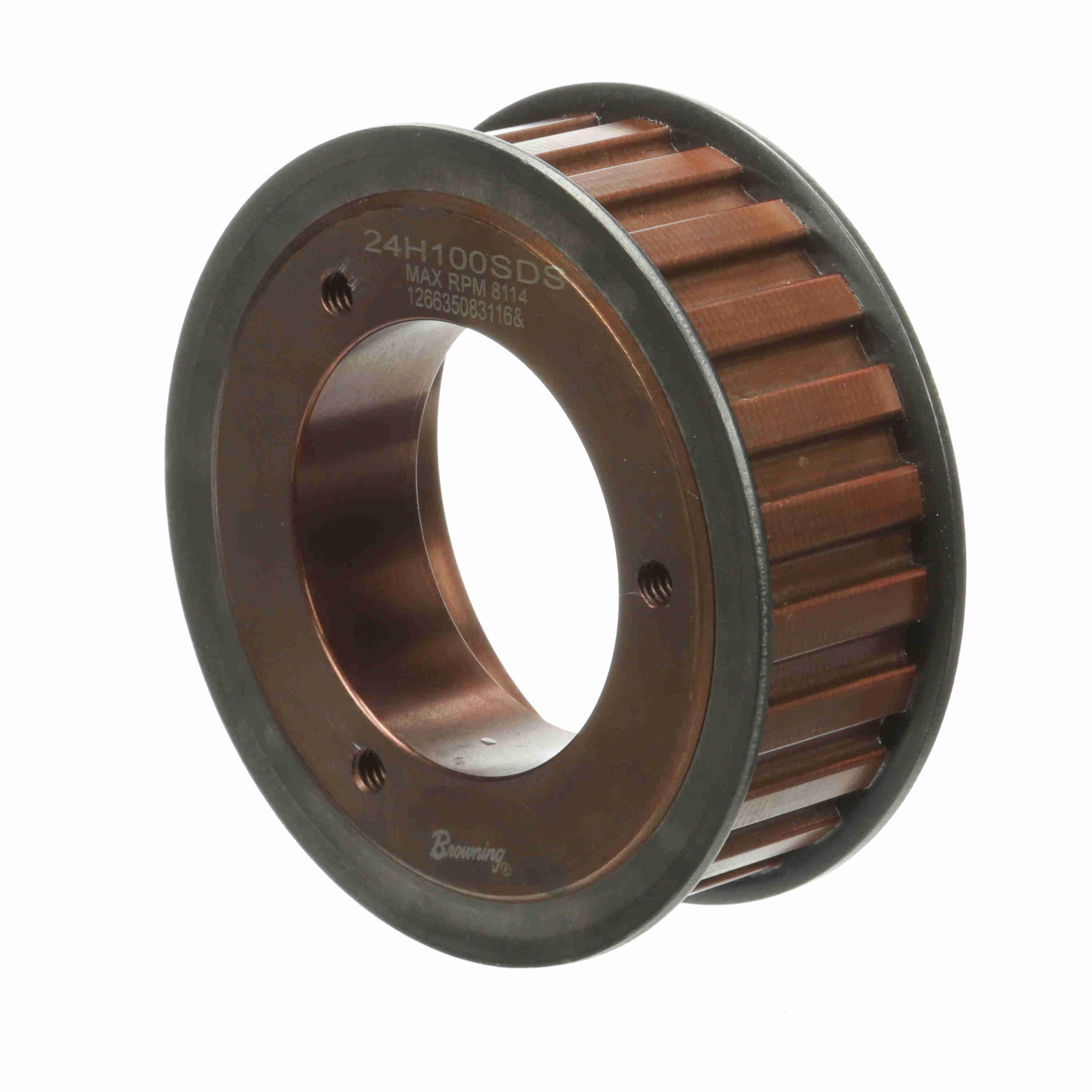

Browning® Gearbelt® 3513595 Solid Type EF Synchronous Timing Pulley With Flange, 1/2 to 2 in QD® Bore, 3.766 in OD, 24 Grooves, 3.82 in Dia Pitch, 1-5/16 in W Face
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowning®
-
UPC662289347865
-
Manufacturer Part Number3513595
-
CountryUSA
-
Face Width1-5/16 in
-
Bushing TypeSDS
-
Pitch1/2 in
-
Pitch Diameter3.82 in
-
Flange Diameter4-1/16 in
-
TypeSolid Type EF
-
Number of Grooves24
-
Outside Diameter3.766 in
-
Bore Diameter1/2 to 2 in
-
Bore TypeQD®
-
Overall Length2.04375 in
-
Suitable For Use With1 in W Type H100 Belt
- Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
- High modulus strength member, needs minimum take-up
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Wide belt speed range
-
Alternative Part Number24H100SDS
-
UNSPSC26111807
-
Package Description1/PK
-
Warranty1 Year
-
