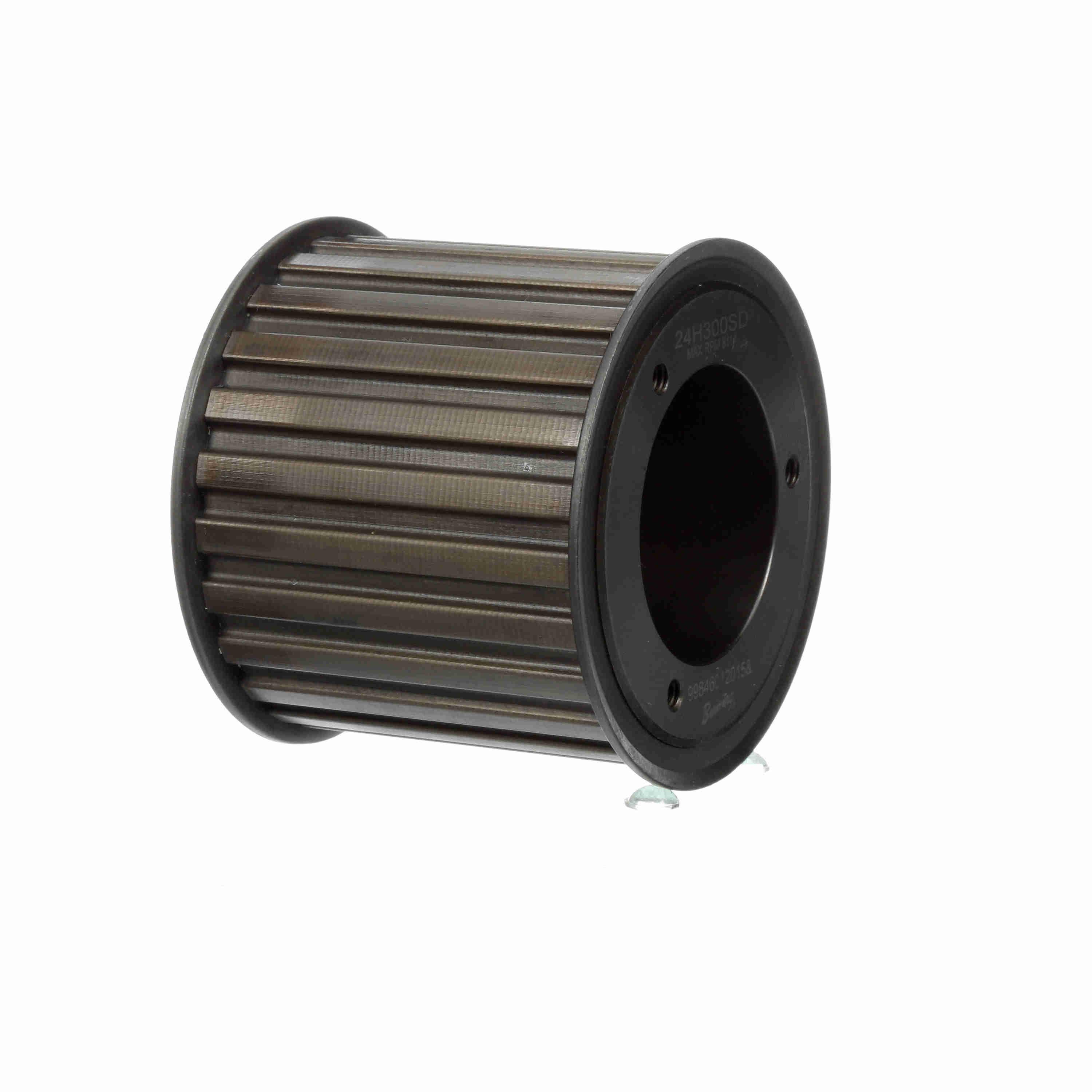

Browning 24-T H-PITCH SD-BUSH T/BELT SHEAVE BRW 24-H-300-SD
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowning®
-
UPC662289347964
-
Manufacturer Part Number3514296
-
CountryUSA
-
Face Width3-3/8 in
-
Bushing TypeSD
-
Pitch1/2 in
-
Pitch Diameter3.82 in
-
Flange Diameter4-1/16 in
-
TypeSolid Type EF
-
Number of Grooves24
-
Outside Diameter3.766 in
-
Bore Diameter1/2 to 2 in
-
Bore TypeQD®
-
Overall Length4.10625 in
-
Suitable For Use With3 in W Type H300 Belt
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Browning 358 Notched Belts are constructed of EPDM material wrapped top and botttom, increased operating temperature range of -60F to 250F degrees
- More horsepower in less space - Browning 358 Belts provide more horsepower in the same span than conventional ABC Belts
- This enables you to reduce drive cost
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
-
Alternative Part Number24H300SD
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
