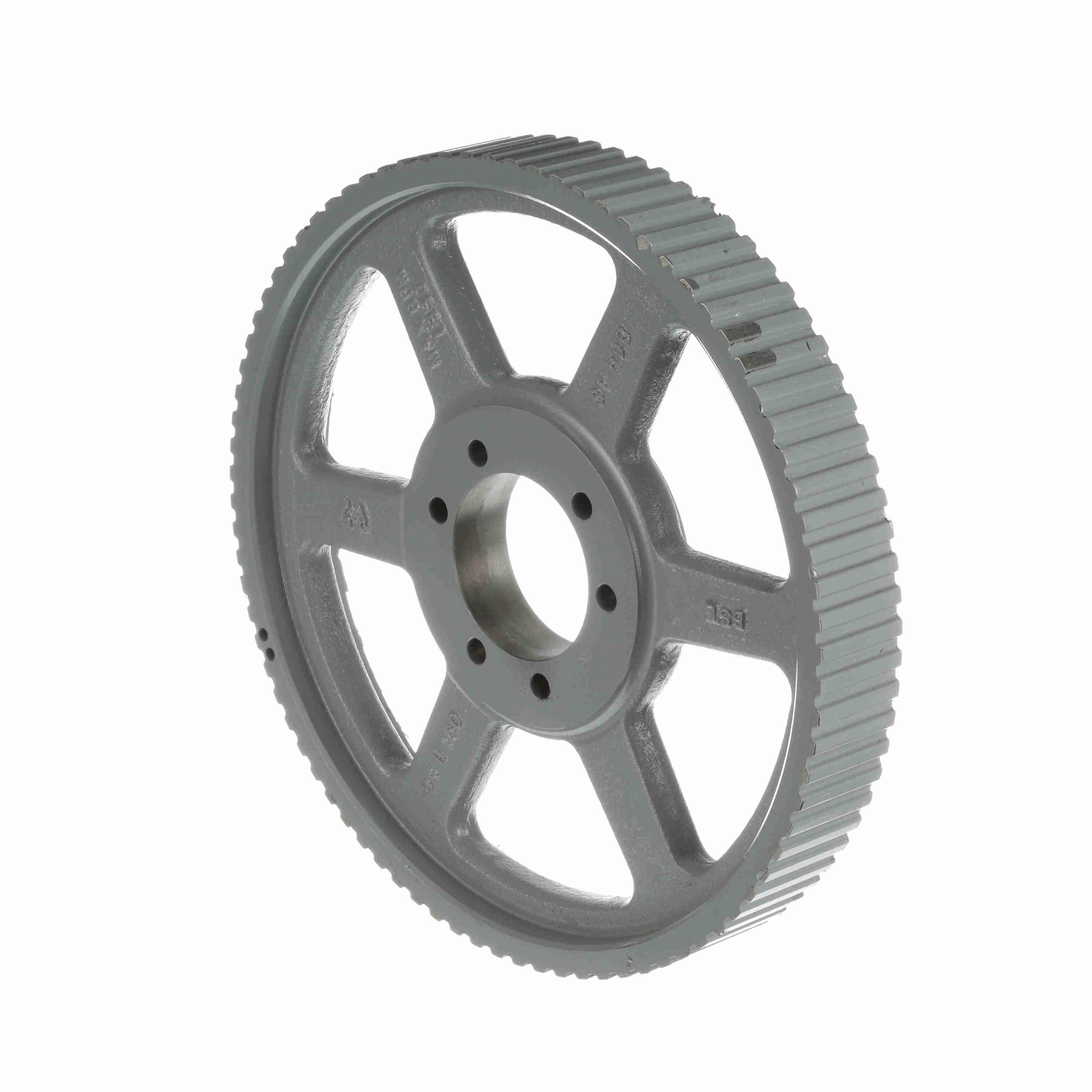

Browning® Gearbelt® 3514049 Type D Arm Synchronous Timing Pulley, 1/2 to 2-15/16 in QD® Bore, 13.315 in OD, 84 Grooves, 13.369 in Dia Pitch, 1-13/16 in W Face
Browning® Gearbelt® 3514049 Type D Arm Synchronous Timing Pulley, 1/2 to 2-15/16 in QD® Bore, 13.315 in OD, 84 Grooves, 13.369 in Dia Pitch, 1-13/16 in W Face
-
BrandBrowning®
-
UPC662289354108
-
Manufacturer Part Number3514049
-
CountryUSA
-
Face Width1-13/16 in
-
Bushing TypeSF
-
Pitch1/2 in
-
Pitch Diameter13.369 in
-
TypeType D Arm
-
Number of Grooves84
-
Outside Diameter13.315 in
-
Bore Diameter1/2 to 2-15/16 in
-
Bore TypeQD®
-
Suitable For Use With1-1/2 in W Type H150 Belt
- Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
- Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- High modulus strength member, needs minimum take-up
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Wrapped construction - Provides smooth quiet operation
- Single fabric design allows greater flexibility
- Wrapped Belts are more tolerant to slipping and misalignment than Raw Edge Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
-
Alternative Part Number84H150SF
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
