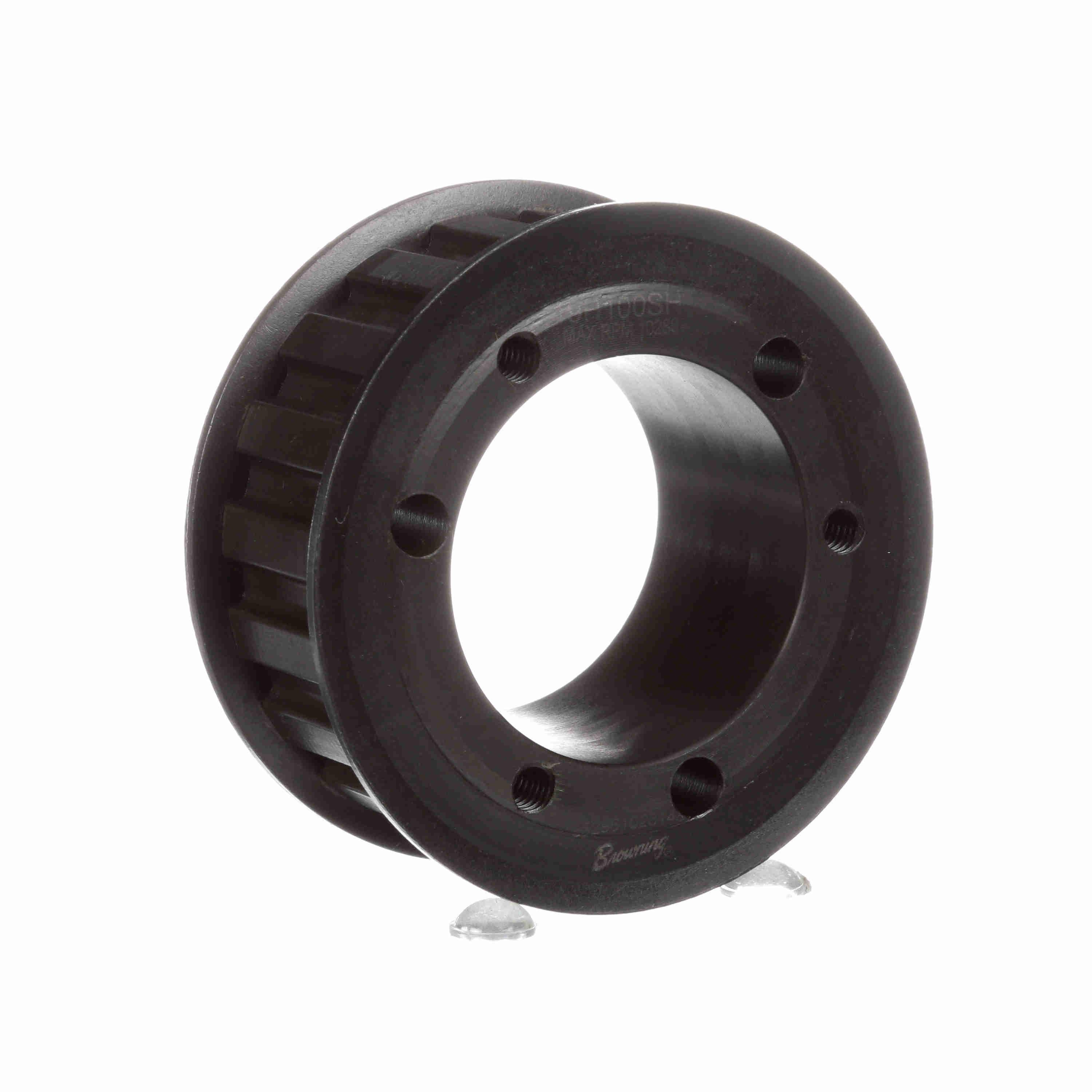

Browning® Gearbelt® 3514106 Solid Type EF Synchronous Timing Pulley With Flange, 1/2 to 1-5/8 in QD® Bore, 2.811 in OD, 18 Grooves, 2.865 in Dia Pitch, 2-11/32 in W Face
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowning®
-
UPC662289345991
-
Manufacturer Part Number3514106
-
CountryUSA
-
Face Width2-11/32 in
-
Bushing TypeSH
-
Pitch1/2 in
-
Pitch Diameter2.865 in
-
Flange Diameter3-1/8 in
-
TypeSolid Type EF
-
Number of Grooves18
-
Outside Diameter2.811 in
-
Bore Diameter1/2 to 1-5/8 in
-
Bore TypeQD®
-
Overall Length3.04375 in
-
Suitable For Use With2 in W Type H200 Belt
- High modulus strength member, needs minimum take-up
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Wrapped construction - Browning offers a full line of wrapped FHP Belts which provides smooth quiet operation
- Wrapped FHP Belts are more tolerant to slipping and misalignment than Raw Edge Belts
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
-
Alternative Part Number18H200SH
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
