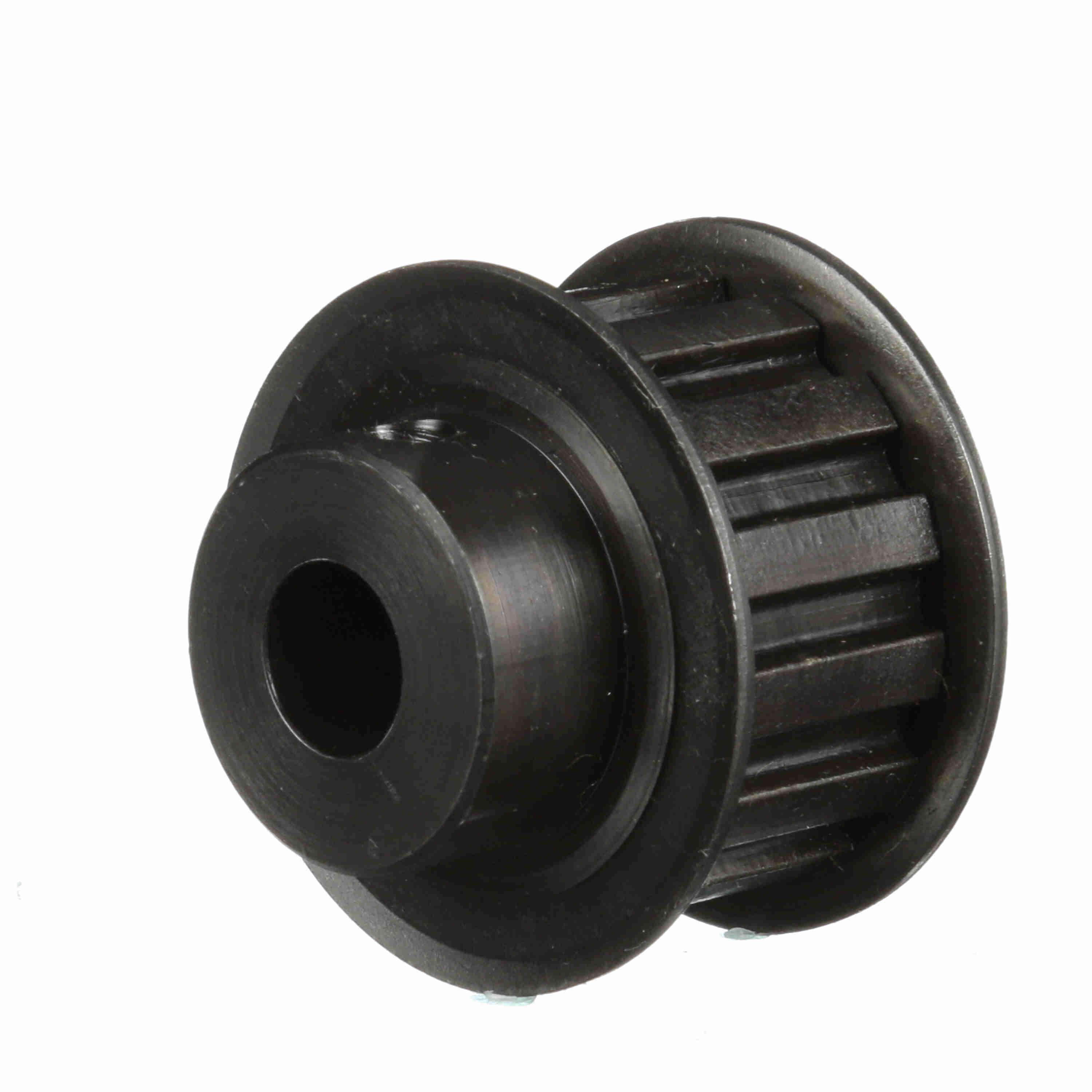

Browning® Gearbelt® 3513892 Solid Type EF Synchronous Timing Pulley With Flange, 1/2 to 1-1/4 in QD® Bore, 2.492 in OD, 16 Grooves, 2.546 in Dia Pitch, 2-25/32 in W Face
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowning®
-
UPC662289345779
-
Manufacturer Part Number3513892
-
CountryUSA
-
Face Width2-25/32 in
-
Bushing TypeJA
-
Pitch1/2 in
-
Pitch Diameter2.546 in
-
Flange Diameter2-23/32 in
-
TypeSolid Type EF
-
Number of Grooves16
-
Outside Diameter2.492 in
-
Bore Diameter1/2 to 1-1/4 in
-
Bore TypeQD®
-
Overall Length2.36125 in
-
Suitable For Use With1-1/2 in W Type H150 Belt
- Constant speed, no slip, no creep, minimum backlash, because of the positive grip of the belt teeth with pulley grooves
- High modulus strength member, needs minimum take-up
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Wide belt speed range
-
Alternative Part Number16H150JA
-
UNSPSC26111807
-
Package Description1/PK
-
Warranty1 Year
-
