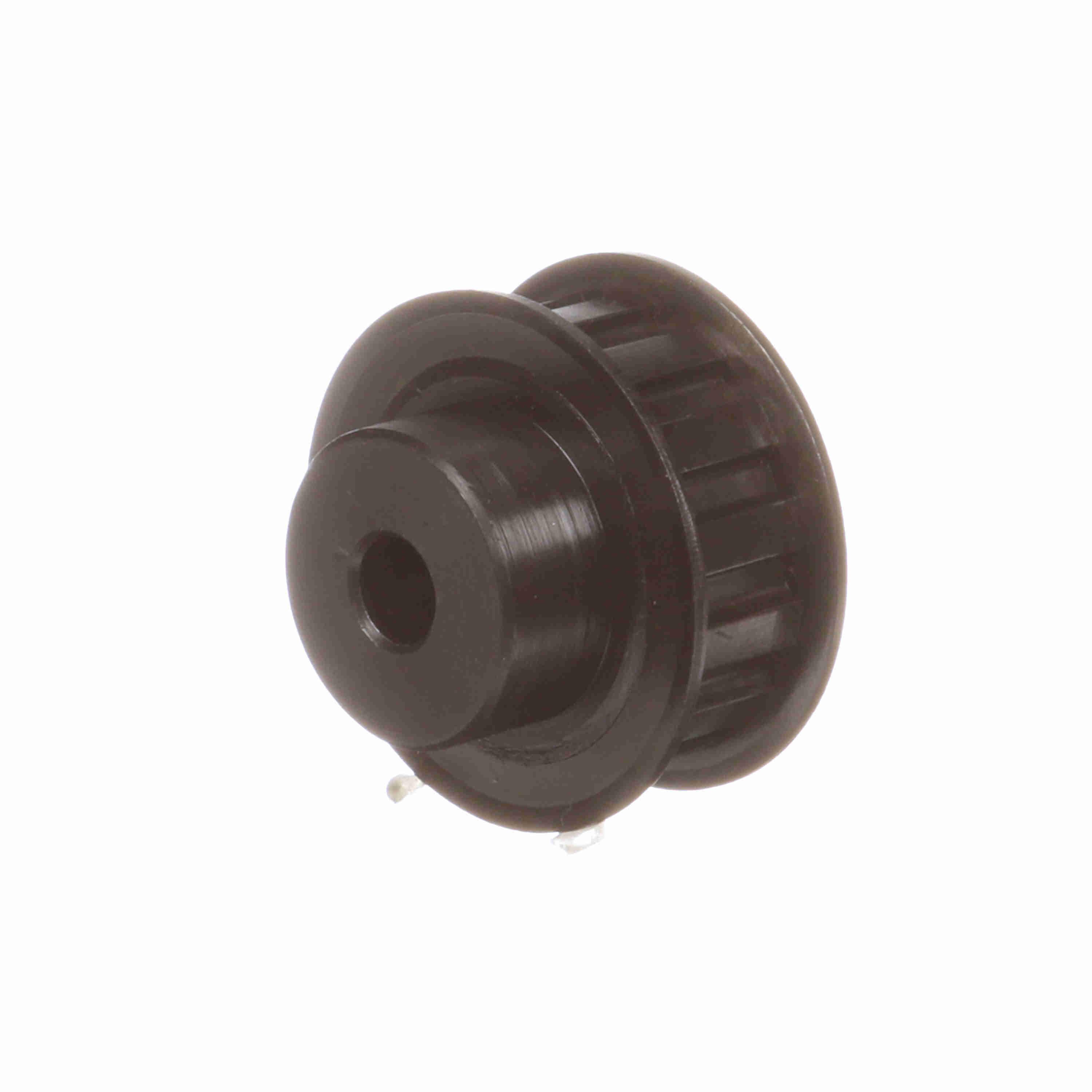

Browning 14-TOOTH L-PITCH T/BELT SHEAVES BRW 14-L-F-050 X 3/8
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowning®
-
UPC662289314102
-
Manufacturer Part Number1054444
-
CountryUSA
-
Face Width3/4 in
-
Pitch3/8 in
-
Pitch Diameter1.671 in
-
Flange Diameter1-15/16 in
-
TypeType 1
-
Hub Diameter1-1/8 in
-
Hub Projection1/2 in
-
Number of Grooves14
-
Outside Diameter1.641 in
-
Bore Diameter3/8 in
-
Bore TypeFinished
-
Overall Length1-1/4 in
-
Suitable For Use With1/2 in W L050 Type Belt
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Large Selection - MVP companion sheaves are offered in A/B, C, 5Vand 8V belt sections and from 3-10 grooves giving Browning the largest selection of MVP Companion Sheaves in the industry
- Statically Balanced - All MVP companion sheaves are statically balanced to assure smooth, vibration free performance
- VP sheaves consist of a male with a threaded barrel, and a female with a threaded bore
- The male section with threaded barrel has flat surfaces at 180 deg increments that allow a flat surface for the setscrew to mate with
- When discs are moved toward each other, the belt rides higher in the groove and the pitch diameter of the sheave is larger which increases the driven speed
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
-
Alternative Part Number14LF050X3/8
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
