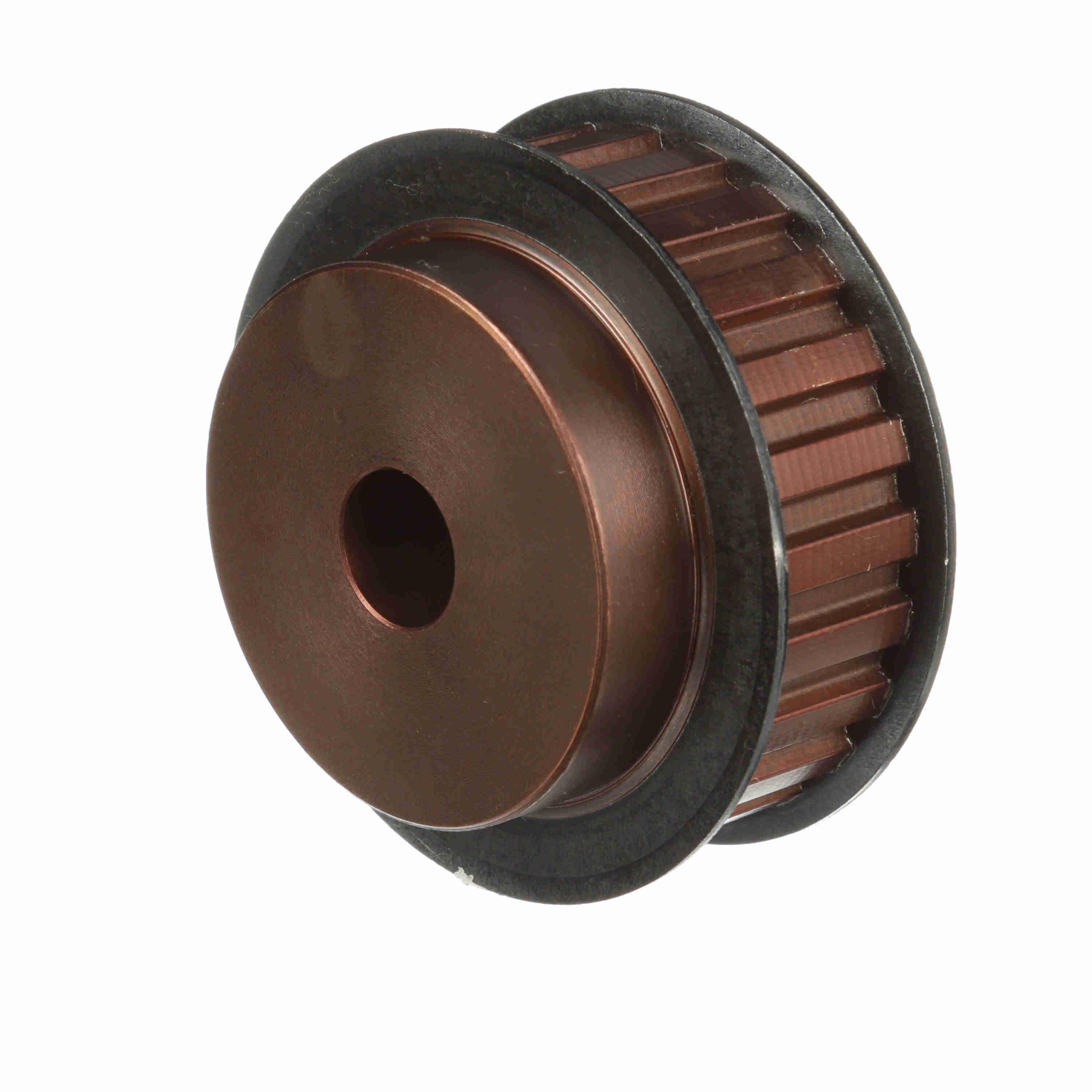

Browning 24-T L-PITCH MPB T/BELT SHEAVES BRW 24-L-B-075
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowningĀ®
-
UPC662289232307
-
Manufacturer Part Number1055219
-
CountryUSA
-
Face Width1 in
-
Bushing TypeMPB
-
Pitch3/8 in
-
Pitch Diameter2.865 in
-
Flange Diameter3-1/8 in
-
TypeType 2
-
Hub Diameter2-1/4 in
-
Hub Projection1/2 in
-
Number of Grooves24
-
Outside Diameter2.835 in
-
Bore Diameter5/8 to 1-3/8 in
-
Overall Length1-1/2 in
-
Suitable For Use With3/4 in W L075 Type Belt
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Lightweight, high horsepower-to-weight ratio makes GearbeltĀ® drives ideal for any application where weight is an important factor
- Less heat, because GearbeltĀ® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- 3/4 in/ft Taper on Barrel - Self locking taper provides the highest degree of mechanical locking product to product
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
-
Alternative Part Number24LB075
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
