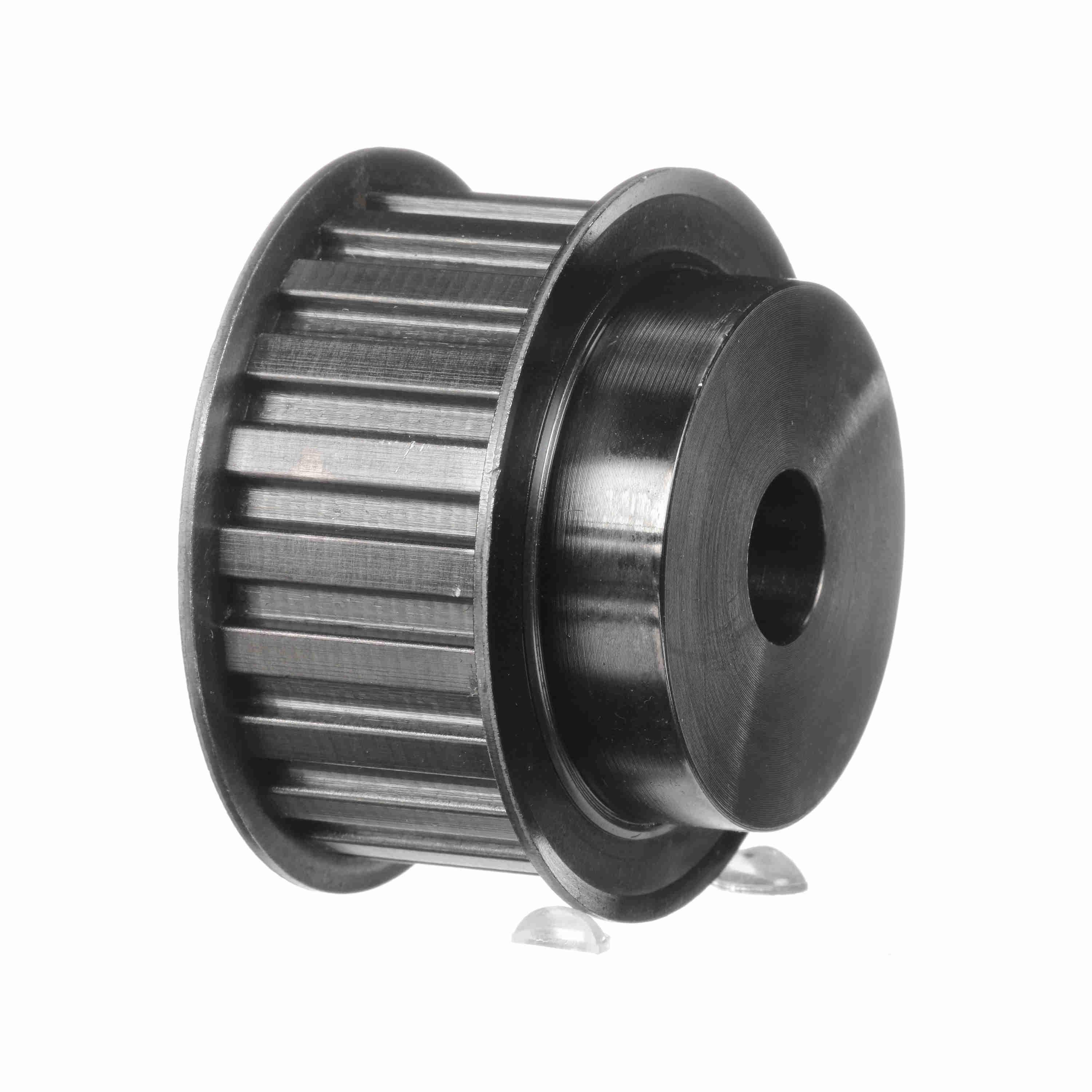

Browning 21-TOOTH L-PITCH MPB T/BELT SHEAVE BRW 21-L-B-100
Synchronous belt drives help reduce the problems of slippage, belt stretch, lubrication and metal to metal contact. They provide superior performance because power is transmitted by positive engagement of belt teeth rather than by friction, as in conventional belt drives.
-
BrandBrowning®
-
UPC662289314287
-
Manufacturer Part Number1055318
-
CountryUSA
-
Face Width1-1/4 in
-
Bushing TypeMPB
-
Pitch3/8 in
-
Pitch Diameter2.507 in
-
Flange Diameter2-7/8 in
-
TypeType 2
-
Hub Diameter2 in
-
Hub Projection1/2 in
-
Number of Grooves21
-
Outside Diameter2.477 in
-
Bore Diameter5/8 to 1-1/4 in
-
Overall Length1-3/4 in
-
Suitable For Use With1 in W L100 Type Belt
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Lightweight, high horsepower-to-weight ratio makes Gearbelt® drives ideal for any application where weight is an important factor
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Wrapped construction - Browning offers a full line of wrapped FHP Belts which provides smooth quiet operation
- Wrapped FHP Belts are more tolerant to slipping and misalignment than Raw Edge Belts
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
-
Alternative Part Number21LB100
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
Specification Sheet
-
Instruction/Installation Manual
