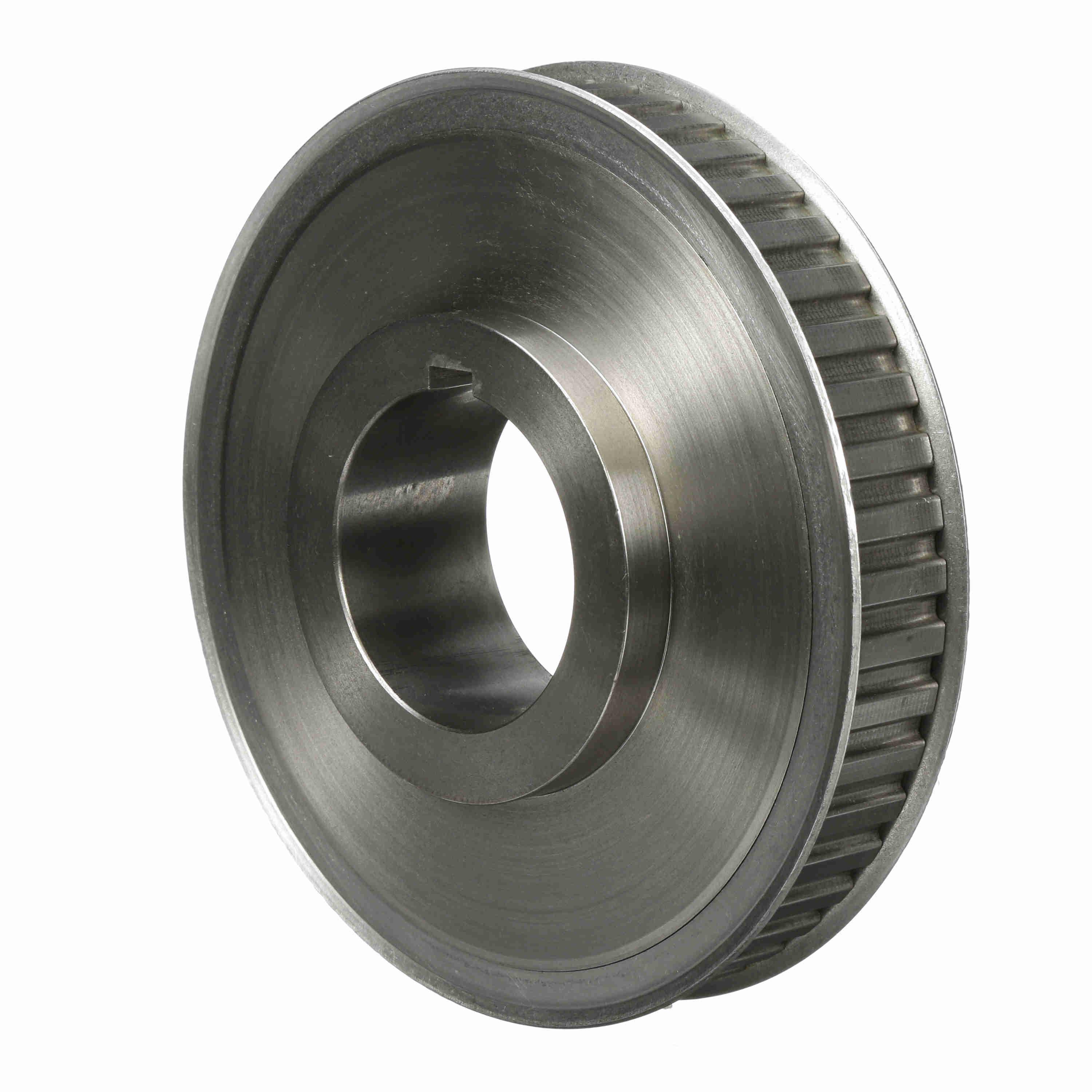

Browning® Gearbelt® 1056985 Type 13 Synchronous Flanged Pulley, 3/4 to 2-11/16 in Split Taper Bore, 7.585 in OD, 48 Grooves, 7.639 in Dia Pitch, 1-1/4 in W Face
Browning® Gearbelt® 1056985 Type 13 Synchronous Flanged Pulley, 3/4 to 2-11/16 in Split Taper Bore, 7.585 in OD, 48 Grooves, 7.639 in Dia Pitch, 1-1/4 in W Face
-
BrandBrowning®
-
UPC662289103850
-
Manufacturer Part Number1056985
-
CountryUSA
-
Face Width1-1/4 in
-
Bushing TypeQ1
-
Pitch1/2 in
-
Pitch Diameter7.639 in
-
Flange Diameter7-7/8 in
-
TypeType 13
-
Hub Diameter4-1/8 in
-
Hub Projection3/4 in
-
Number of Grooves48
-
Outside Diameter7.585 in
-
Bore Diameter3/4 to 2-11/16 in
-
Bore TypeSplit Taper
-
Overall Length2-25/32 in
-
Suitable For Use With1 in W Type H100 Belt
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Broad depth of product to choose from - Browning offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Constant Speed - No slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Different Mounting to the shaft - Browning offers the Gearbelt Pulleys in various ways to mount to the shaft, Split Taper and QD Bushing styles, as well as, finished and minimum plain bore
- Precision Molded Cogs - Provide more surface area for heat dissipation and increase belt flexibility
- Cooler running means longer life
- Browning Notched belts assure longer life when replacing existing Wrapped V-Belts
- Close Belt tolerance - Browning Belts offer the Code 1 in Match belt system on all classical and 358 in Belts, allowing easy selection of just one match number for each belt size
- High Tensile Cord - Specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Raw-Edge Sidewalls - Improved gripping contract with pulley sidewalls
- Assures less vibration and Smoother , quieter performance
- Notched belts provide higher horsepower than wrapped belts
-
Alternative Part Number48HQ100
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
