Browning 44-T H-PITCH QD T/BELT SHEAVES BRW 44-H-200-SK

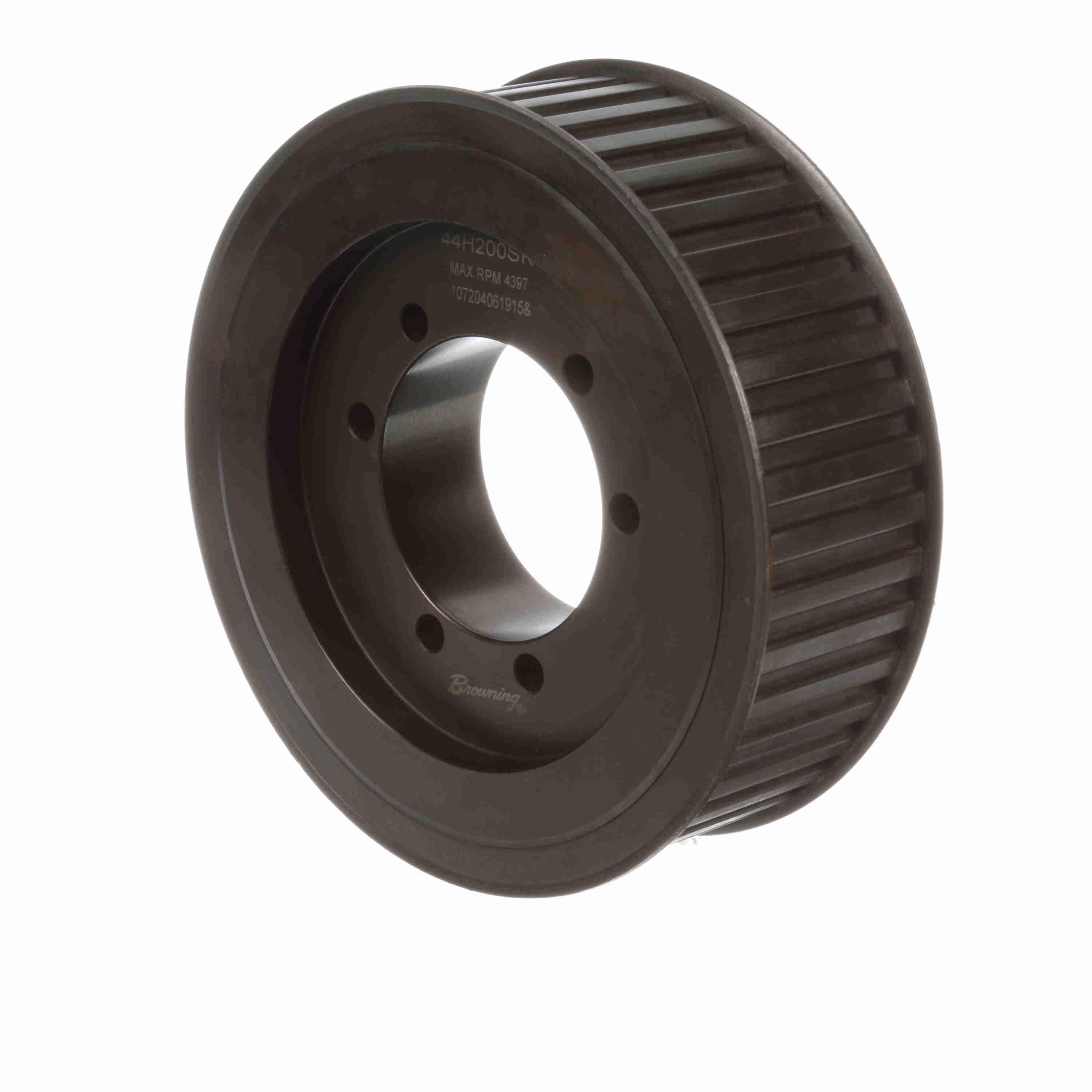

Browning® Gearbelt® 3514205 Type DF Solid Synchronous Flanged Pulley, 1/2 to 2-5/8 in QD® Bore, 6.949 in OD, 44 Grooves, 7.003 in Dia Pitch, 2-11/32 in W Face
-
BrandBrowning®
-
UPC662289352180
-
Manufacturer Part Number3514205
-
CountryUSA
-
Face Width2-11/32 in
-
Bushing TypeSK
-
Pitch1/2 in
-
Pitch Diameter7.003 in
-
MaterialCast Iron
-
Flange Diameter7-1/4 in
-
TypeType DF Solid
-
Number of Grooves44
-
Outside Diameter6.949 in
-
Bore Diameter1/2 to 2-5/8 in
-
Bore TypeQD®
-
Suitable For Use With2 in W Type H200 Belt
- Constant speed no slip, no creep, minimum backlash due to the positive engagement of the belt teeth with the grooves of the sprockets
- Light weight high horsepower to weight ratio makes Browning® Gearbelt® drives ideal for any application where weight is a factor
- Broad depth of product to choose from Browning® offers 5 different sprocket pitches along with a wide range of sprocket and belt widths to accommodate any horsepower requirement
- High modulus strength member, needs minimum take-up
- Freedom from initial belt tension, reduces bearing loads, increases life
- Compact design Gearbelt® belts permit smaller pulleys, shorter centers and narrow belts
- Less heat, because Gearbelt® drives generate virtually no friction
- No lubrication required
- Wide load capacity range
- Wide belt speed range
-
Alternative Part Number44H200SK
-
UNSPSC26111807
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
