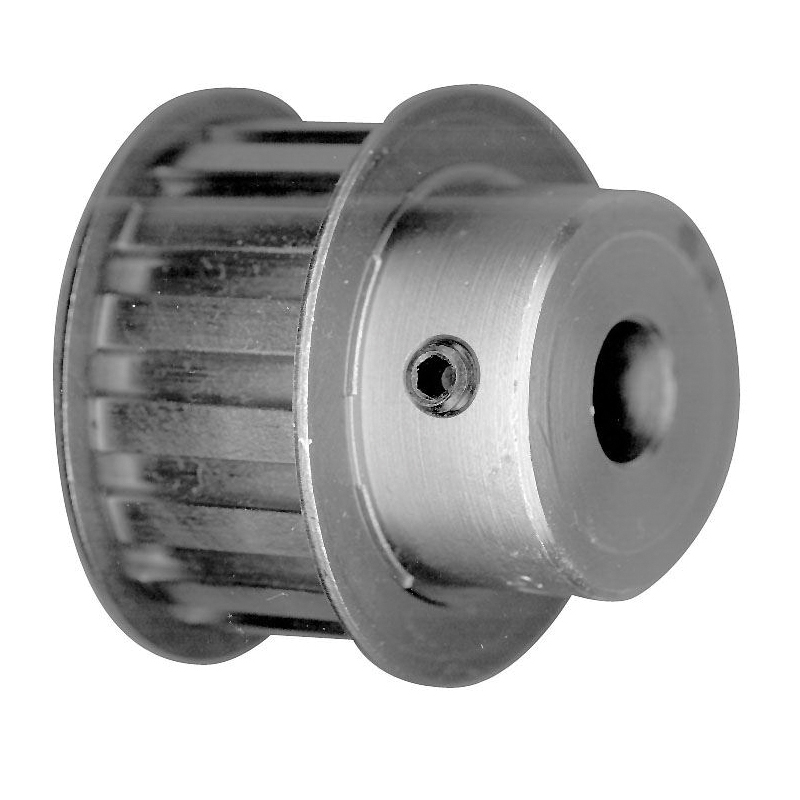

Bando Synchro-Link® P32L075 Type 6F Trapezoidal Flanged Timing Belt Pulley, 5/8 in MPB Bore, 3.79 in OD, 3.82 in Dia Pitch, 1 in W Face
Bando Synchro-Link® Timing Belt Pulleys are manufactured to exacting tolerances to assure total drive system compatibility. They are available in a complete range of sizes, types, configurations and materials to contribute to the efficiency, economy and performance of your drive.
-
BrandBando
-
UPC649717905934
-
Manufacturer Part NumberP32L075
-
CountryUSA
-
Face Width1 in
-
Pitch3/8 in
-
Pitch Diameter3.82 in
-
Flange Diameter4-1/16 in
-
TypeType 6F Trapezoidal Flanged
-
Hub Diameter2-9/16 in
-
Hub Projection5/8 in
-
Outside Diameter3.79 in
-
Bore Diameter5/8 in
-
Bore TypeMPB
-
Overall Length1-3/8 in
-
Suitable For Use WithSynchro-Link® L Series 3/4 in W 32 Teeth Timing Belt
- For optimum performance, combine Bando Synchro-Link® timing belts and timing belt bushings/pulleys
-
UNSPSC26111807
-
Package DescriptionEACH
-
Warranty1 year
-
