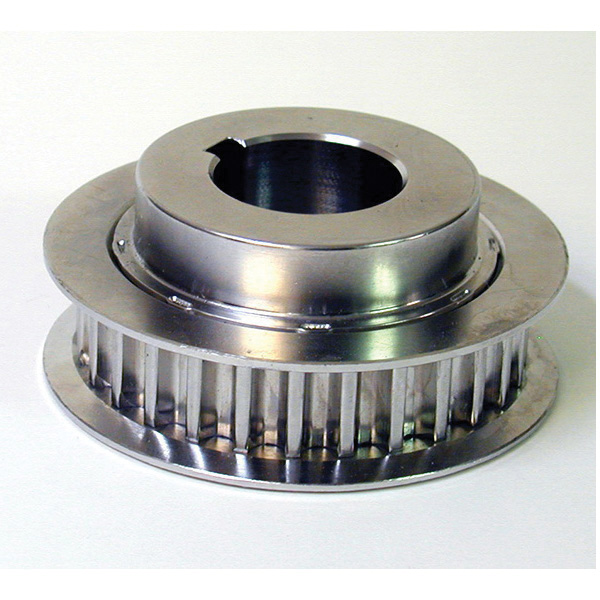

Gates® Power Transmission PowerGrip® GT®2 P48-8MGT-50 Synchronous Sprocket, 1/2 to 2-1/8 in Taper-Lock® Bore, 4.758 in OD, 48 Grooves, 4.812 in Dia Pitch, 2.37 in W Face
PowerGrip Sprockets and Pulleys provide optimum performance for all constructions of PowerGrip GT, PowerGrip HTD and PowerGrip Timing belts, delivering maximum performance and superior reliability. PowerGrip sprockets are precision manufactured and static balanced to eliminate sprocket wobble.
-
BrandGates® Power Transmission
-
UPC72053459111
-
Manufacturer Part NumberP48-8MGT-50
-
CountryUSA|Canada
-
Face Width2.37 in
-
Bushing Type2012
-
Pitch8 mm
-
Pitch Diameter4.812 in
-
MaterialCast Iron
-
Flange Diameter5.16 in
-
Series7708
-
Hub Diameter3.8 in
-
Number of Grooves48
-
Outside Diameter4.758 in
-
Bore Diameter1/2 to 2-1/8 in
-
Bore TypeTaper-Lock®
-
Suitable For Use With50 mm W PowerGrip® GT®3 and PowerGrip® GT®2 Belts
- Full split in bushing allows easy installation and removal
- Precise sprocket design produces positive, press fit to shaft
- Precision manufactured and static balanced
- Smaller, narrower sprockets save shaft space, keep the load closer to bearing and extend life of reducer
-
Alternative Part Number77085048
-
UNSPSC31171900
-
Package DescriptionEACH
-
