Browning 8-MM-PITCH X 3048-MM TIMING BELTS BRW B-3048-8-M-50

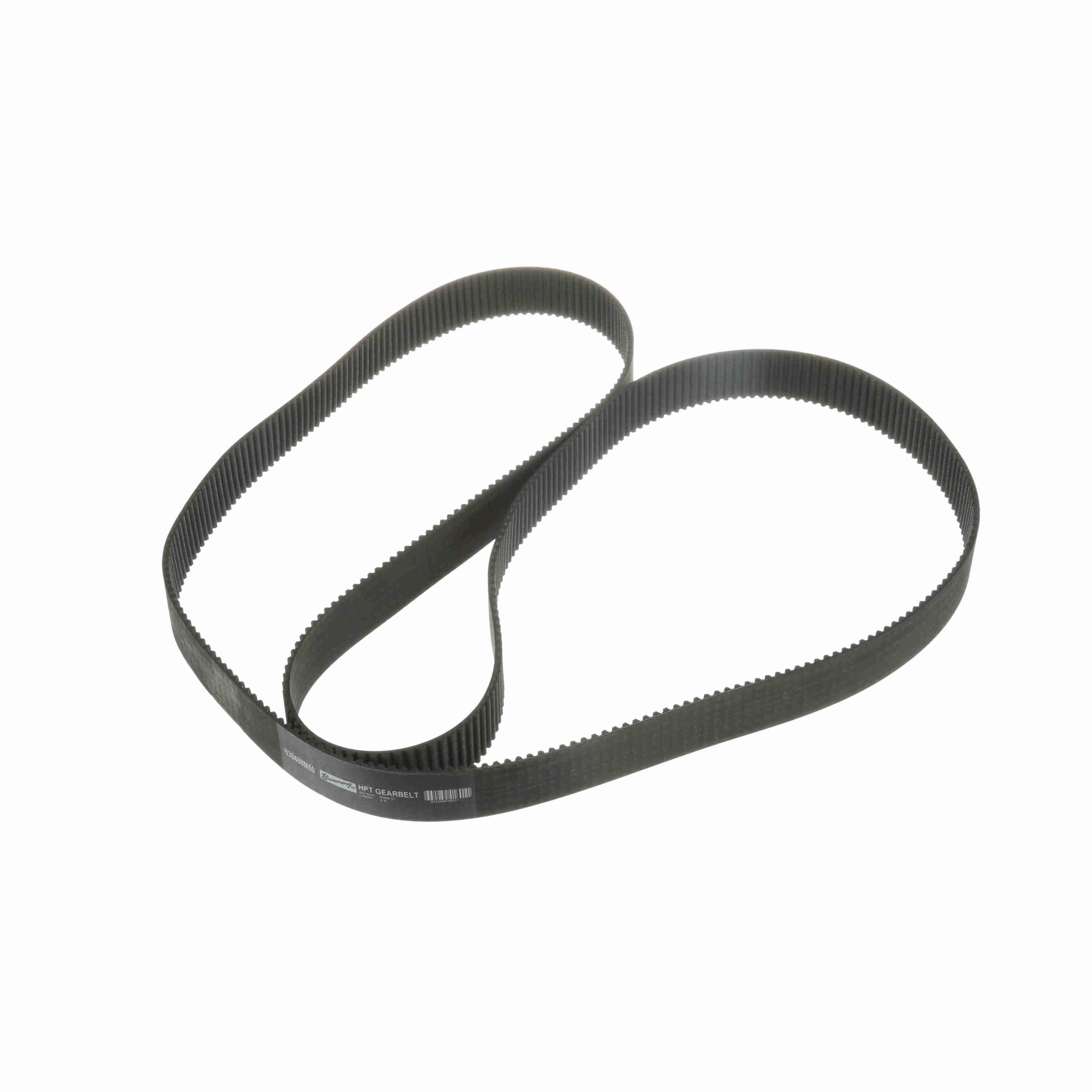

Browning® 3549821 Type B Synchronous Belt, 391 Teeth, 8 mm Pitch, 3048 mm OAL, 50 mm W, Neoprene
-
BrandBrowning®
-
UPC662289416011
-
Manufacturer Part Number3549821
-
CountryUSA
-
Pitch8 mm
-
Temperature Range180 deg F
-
MaterialNeoprene
-
Reinforced MaterialFiberglass
-
TypeType B
-
Width50 mm
-
Number of Teeth391
-
Overall Length3048 mm
- Molded teeth - shear resistance teeth designed to provide smooth positive engagement with gearbelt pulleys
- High tensile cord - specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Compression section - bonds to belt cords for protections against dirt, grease, oil, ozone, and other environmental hazards
- Dual timing belts - Browning® offers a full line of dual timing belts which can provide 100% load capacity form either side
- New parabolic tooth profile
- Lower belt tension
-
Alternative Part NumberB30488M50
-
UNSPSC26111803
-
Package Description1/PK
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
