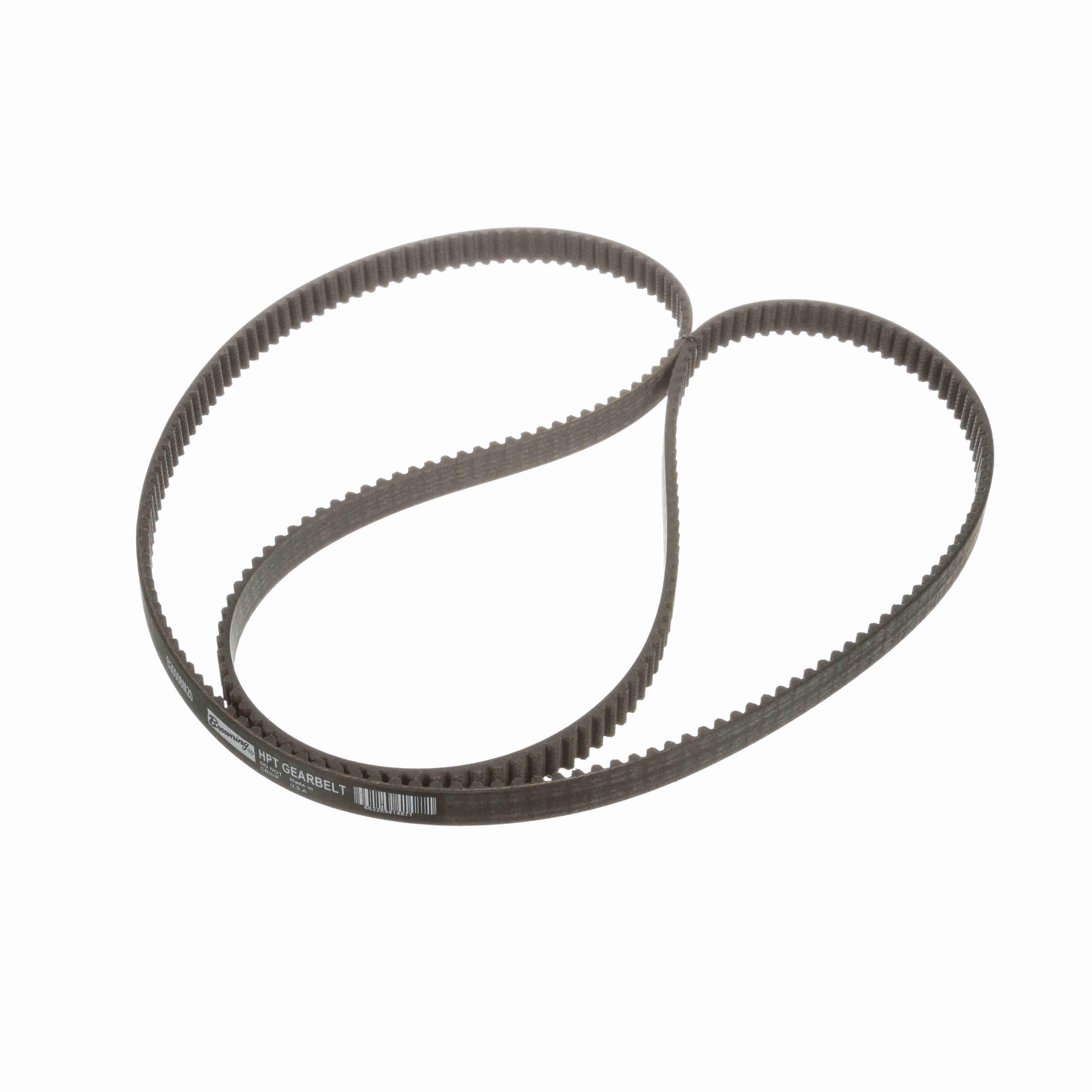

Browning® 3549649 Type B Synchronous Belt, 250 Teeth, 8 mm Pitch, 2000 mm OAL, 20 mm W, Neoprene
Browning® 3549649 Type B Synchronous Belt, 250 Teeth, 8 mm Pitch, 2000 mm OAL, 20 mm W, Neoprene
-
BrandBrowning®
-
UPC662289414871
-
Manufacturer Part Number3549649
-
CountryUSA
-
Pitch8 mm
-
Temperature Range180 deg F
-
MaterialNeoprene
-
Reinforced MaterialFiberglass
-
TypeType B
-
Width20 mm
-
Number of Teeth250
-
Overall Length2000 mm
- Molded teeth - shear resistance teeth designed to provide smooth positive engagement with gearbelt pulleys
- High tensile cord - specially treated cords to provide strength and additional flex life while providing resistance to elongation for the belt
- Compression section - bonds to belt cords for protections against dirt, grease, oil, ozone, and other environmental hazards
- Dual timing belts - Browning® offers a full line of dual timing belts which can provide 100% load capacity form either side
- New parabolic tooth profile
- Lower belt tension
-
Alternative Part NumberB20008M20
-
UNSPSC26111803
-
Package Description1/PK
-
Warranty1 Year
-
