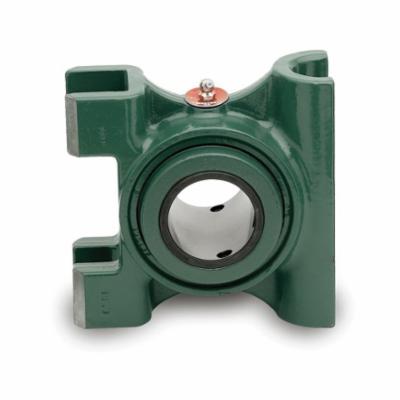

Dodge® 070815 Heavy Universal Non-Expansion Type S-2000 Top Angle Take-Up Spherical Roller Bearing, 2-7/16 in Dia Bore, 8-1/2 in L x 3.2 in W x 8.28 in H, 39000 lb Dynamic/47500 lb Static Load
These unit-housed, double-row spherical, mounted bearings have high ratings and long L10 lives. A variety of housing styles and sealing options allow for easy application on material and air handling machinery. Industry standard dimensions make the products interchangeable with many brands.
-
BrandDodge®
-
UPC782475307326
-
Manufacturer Part Number070815
-
CountryUSA
-
Load Capacity39000 lb Dynamic/47500 lb Static
-
Temperature Rating-20 to 200 deg F
-
FinishUncoated
-
TypeHeavy Universal Non-Expansion Type S-2000
-
Height8.28 in
-
Width3.2 in
-
Length8-1/2 in
-
Bore Diameter2-7/16 in
-
Suitable For Use WithTP40 Top Angle Take-Up Frame
- Standard trident triple-lip rubbing seals
- Easy installation
- Extended life bearings
- Single snap ring movable for expansion
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 100941009 |
| Motion Industries | 00591659 |
-
Alternative Part NumberTPHU-S2-207R
-
UNSPSC31171510
-
Package DescriptionEACH
-
WarrantyLimited
-
Warranty Information
-
Line Drawing
-
Specification Sheet
-
Catalog
