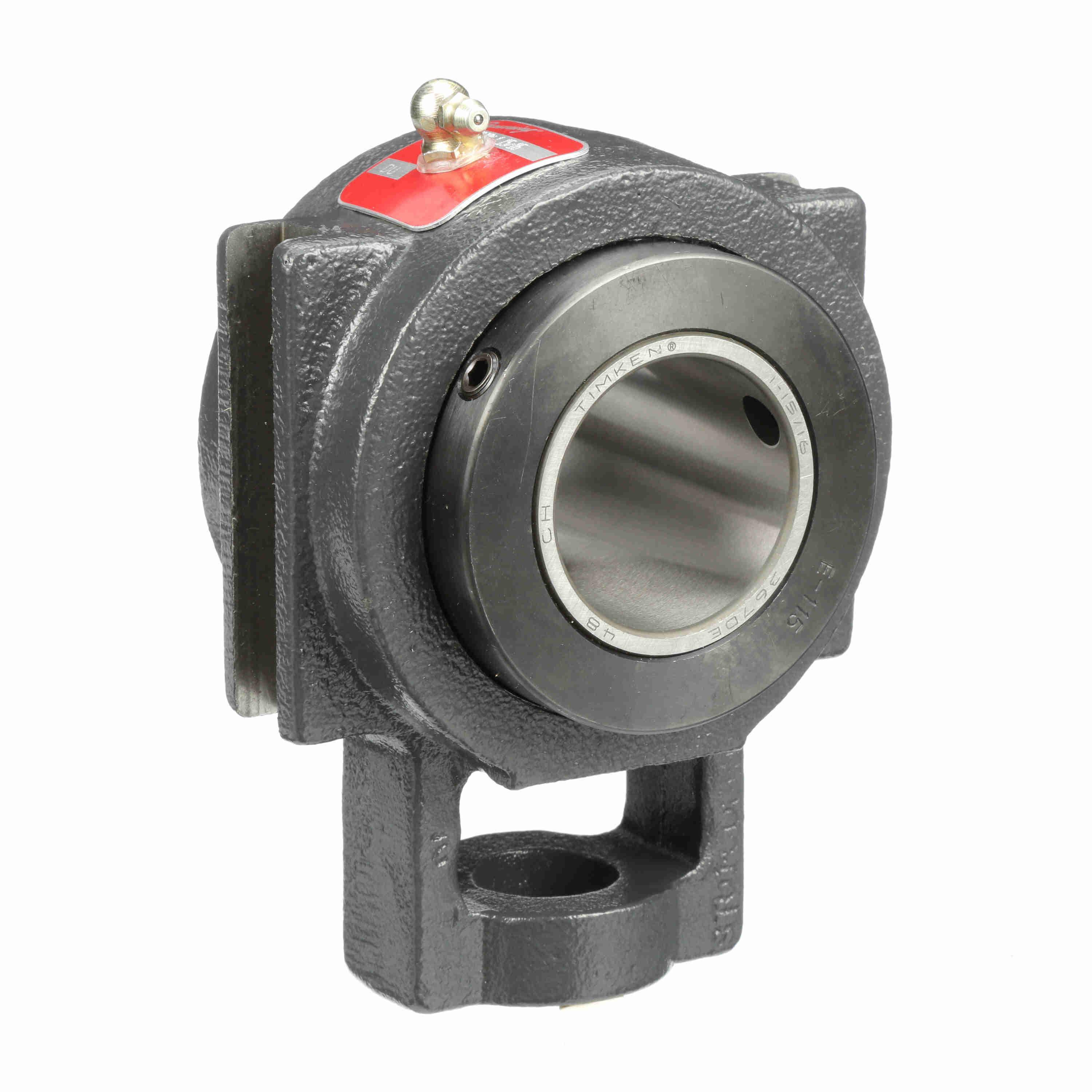

Browning® 730044 TUE920 Non-Expansion Straight Bore Take-Up Tapered Roller Bearing Unit With Seal Flinger, 2.188 in Dia Bore, 6.813 in L x 3-3/4 in W x 5-1/4 in H, 8570 lb Dynamic Load
Browning® 920 series mounted tapered roller bearings feature one-piece durable cast iron non-expansion housings with type E mounting dimensions and limited misalignment. The E920 series contains setscrew locking collars for easy installation and contact face riding seals to provide a good balance between contaminant entry, grease retention and friction.
-
BrandBrowning®
-
UPC662289486984
-
Manufacturer Part Number730044
-
CountryUSA
-
Load Capacity8570 lb Dynamic
-
Temperature Rating-20 to 200 deg F
-
FinishUncoated
-
TypeNon-Expansion Straight Bore
-
Height5-1/4 in
-
Width3-3/4 in
-
SeriesTUE920
-
Bearing MaterialSteel
-
Length6.813 in
-
Bore Diameter2.188 in
-
Suitable For Use WithTUE920 Center Pull Take Up Frame
- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading
- Single lip contact face-riding seals rotate with the shaft
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Powder coat epoxy 2-bolt cast iron housing
- Powder coat epoxy 2-bolt cast iron housing
- Heavy duty tapered roller bearings with steel cage for radial, thrust and combined loading_x005f Single lip contact face-riding seals rotate with the shaft_x005f Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews_x005f Powder coat epoxy 2-bolt cast iron housing
-
Alternative Part NumberTUE920X 2 3/16
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
