Browning 9" SIDE MOUNT TAKE-UP FRAMES BRW 9-SF-16

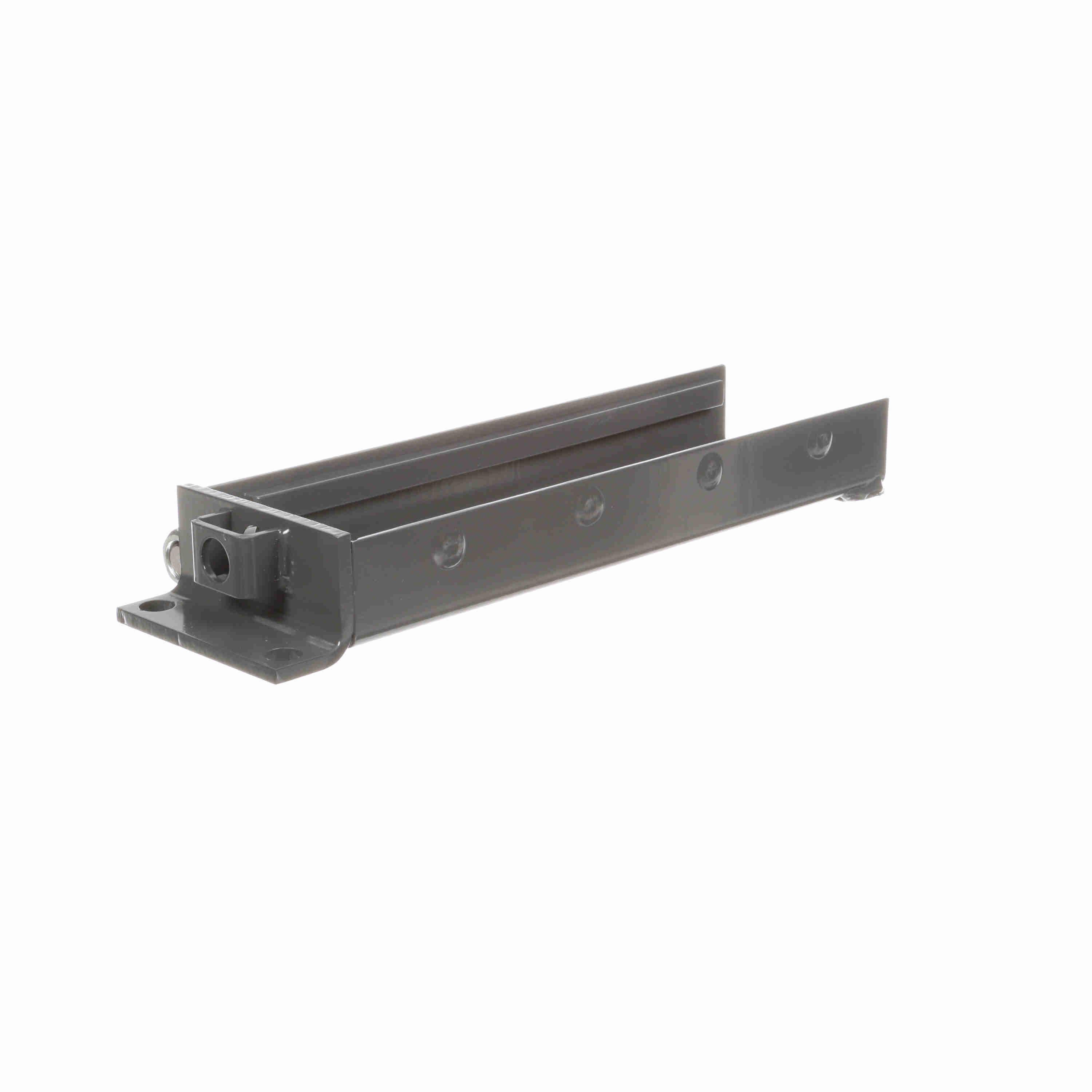

Browning® 3150992 SF Series Standard Duty Take-Up Frame, 9 in Travel, 14-1/2 in OAL, 4-1/16 in W Base, 13-1/2 in L Bolt Center-to-Center, 3-3/16 in W Bolt Center-to-Center
-
BrandBrowning®
-
UPC662289532339
-
Manufacturer Part Number3150992
-
CountryUSA
-
FinishPainted
-
MaterialWelded Steel
-
Frame TypeCenter Pull
-
Travel9 in
-
TypeStandard Duty
-
Height to Center Line1-3/8 in
-
SeriesSF Series
-
Base Width4-1/16 in
-
Bolt Center-to-Center Length13-1/2 in
-
Bolt Center-to-Center Width3-3/16 in
-
Overall Length14-1/2 in
- Durable painted welded steel construction
-
Alternative Part Number9SF16
-
UNSPSC31171533
-
Package DescriptionEACH
-
WarrantyLimited
-
