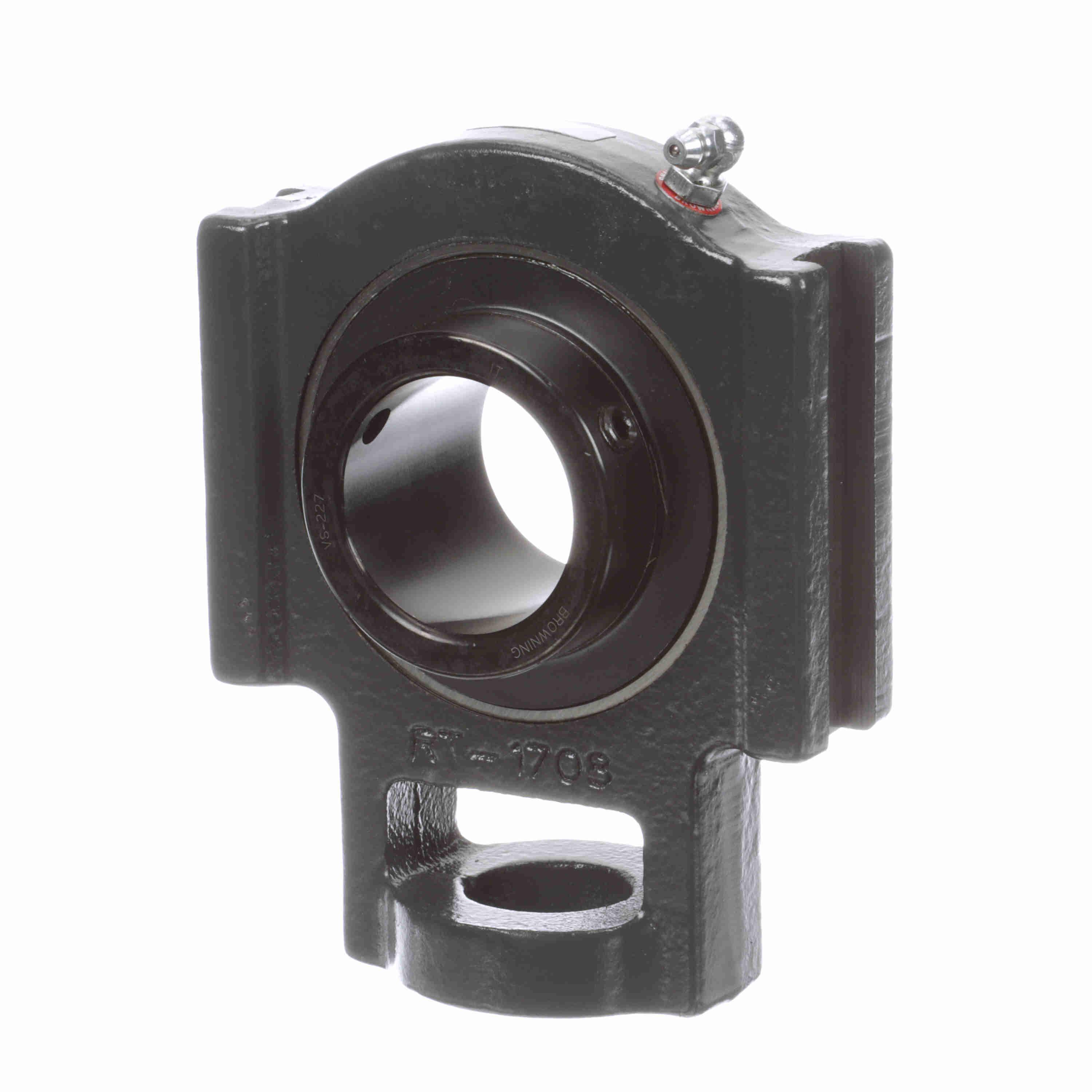

Browning 1-11/16"-ID TAKE-UP BEARING UNITS BRW VTWS-227
Browning® mounted ball bearings feature multiple housing styles, materials and configurations, an extended inner race insert bearing with ball riding nylon retainer. The insert features a rivet to prevent outer ring rotation and is available with setscrew, eccentric or BOA concentric locking collar. The contact seal with black oxide treated flinger provides a good balance between contaminant resistance, grease loss and friction.
-
BrandBrowning®
-
UPC662289528578
-
Manufacturer Part Number767420
-
CountryUSA
-
Load Capacity7901 lb Dynamic/5139 lb Static
-
Temperature Rating-20 to 200 deg F
-
FinishBlack Oxide Coated
-
TypeNormal Duty
-
Height4-1/2 in
-
Width2-1/8 in
-
SeriesVTWS
-
Bearing MaterialSteel
-
Length5-3/4 in
-
Bore Diameter1-11/16 in
-
Suitable For Use With18SF31, 3SF31, 6SF31, 9SF31, 12SF31 Frames
- Powder coat epoxy cast iron housing
- Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews
- Single lip contact seal and flinger
- Zone hardened inner race
- Powder coat epoxy cast iron housing
- Powder coat epoxy cast iron housing_x005f Zone hardened inner ring with 120 deg spacing setscrew lock with diamond faceted setscrews_x005f Single lip contact seal and flinger
-
Alternative Part NumberVTWS-227
-
UNSPSC31171516
-
Package DescriptionEACH
-
Warranty1 Year
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
