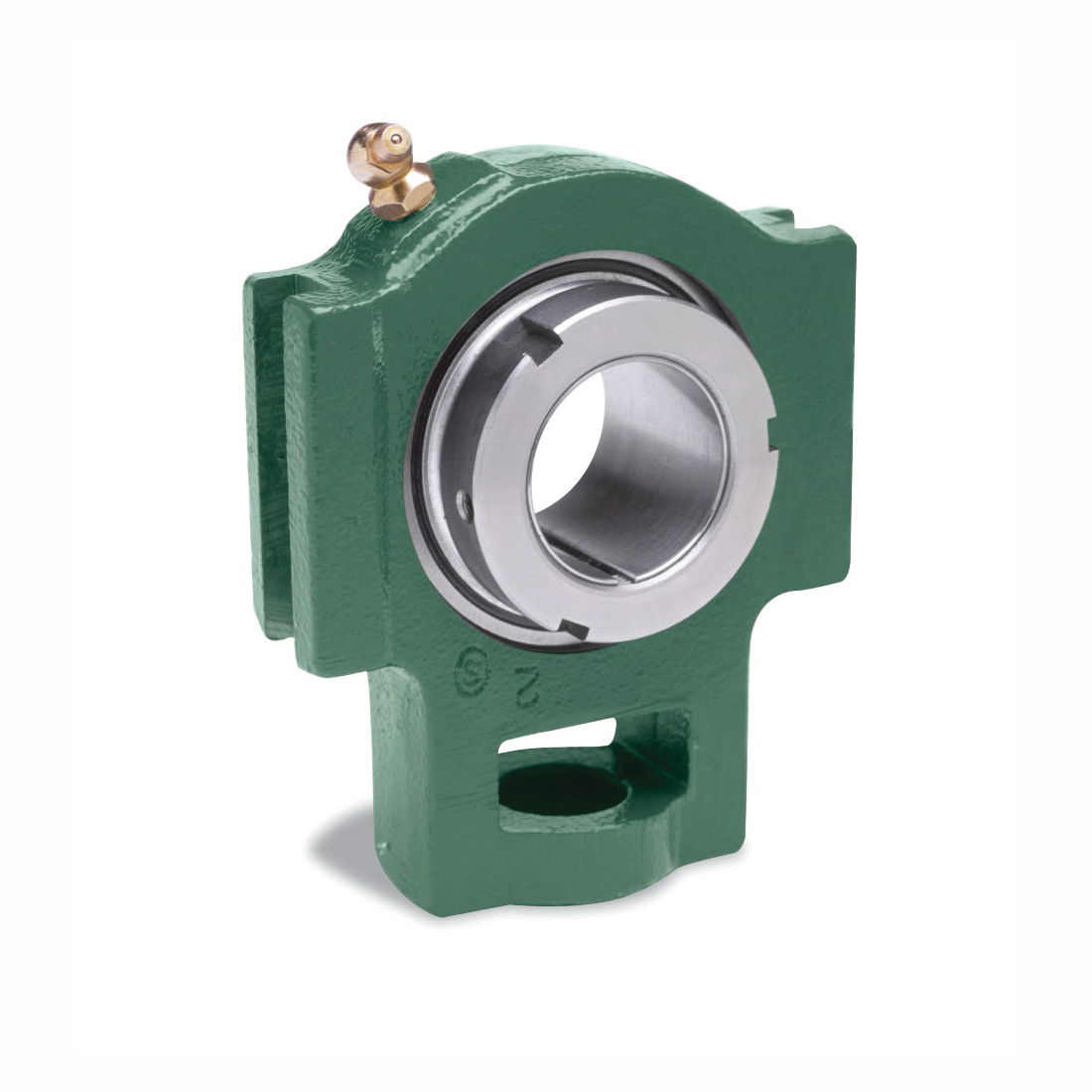

Dodge® 136252 209 Non-Expansion Normal Duty Wide Slot Take-Up Adapter Ball Bearing, 45 mm Dia Bore, 143 mm L x 120.7 mm H, 7891 lb Dynamic/4906 lb Static Load
Dodge® proudly presents a totally different ball bearing with a name that says it all Grip-Tight®. With its pull/push adapter system, fully concentric 360 deg inner ring, and completely interchangeable housing design, the new Dodge® Grip-Tight® ball bearing is the easy-on/easy-off solution for damage-free shafting, reduced vibration and greater cost/inventory savings. The Grip-Tight® ball bearing is shaft-ready right out of the box and offered in a variety of housing styles for normal and medium duty operations. It accommodates commercial grade and some undersized shafting to lower costs, and all Grip-Tight® assemblies fit into a standard Dodge® ball bearing housing. Plus, this Dodge® bearing has been specifically engineered to run at higher speeds and operate cooler for longer grease life. In test comparisons, the Dodge® Grip-Tight® bearing even proved it could suppress fretting corrosion and scarring to shafts and journals, thus saving not only time but also labor and maintenance costs.
-
BrandDodge®
-
UPC782475989898
-
Manufacturer Part Number136252
-
CountryUSA
-
Load Capacity7891 lb Dynamic/4906 lb Static
-
TypeNon-Expansion Normal Duty Wide Slot
-
Height120.7 mm
-
Series209
-
Bearing MaterialSteel
-
Length143 mm
-
Bore Diameter45 mm
-
Suitable For Use WithWS400 Wide Slot Take-Up Frames
- Non-metallic retainer provides added strength
- Case-carburized inner ring ensures greater wear resistance and longer life
- DualGuard® seal with rubberized flingers protects by keeping lubricants in, contaminants out
- Locknut/inner-ring interface acts as bearing puller to ease disassembly
- Grade 10 balls
- Higher speed capability
- Self-aligning
- Cooler operation for longer grease life
- Full contact on shaft for better grip
- Easy-on/easy-off
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 101014685 |
| Motion Industries | 03711689 |
-
Alternative Part NumberWSTU-GT-45M
-
UNSPSC31171504
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed
-
WarrantyLimited
-
Instruction/Installation Manual
-
Catalog
-
Warranty Information
-
Specification Sheet
Recently Viewed

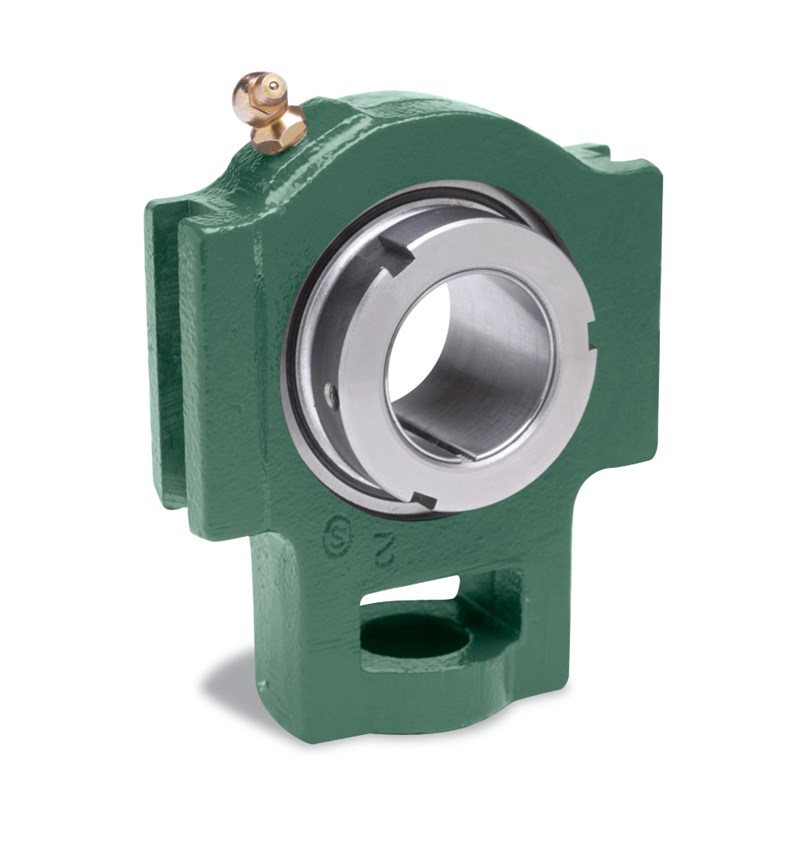

Dodge® 136252 209 Non-Expansion Normal Duty Wide Slot Take-Up Adapter Ball Bearing, 45 mm Dia Bore, 143 mm L x 120.7 mm H, 7891 lb Dynamic/4906 lb Static Load
