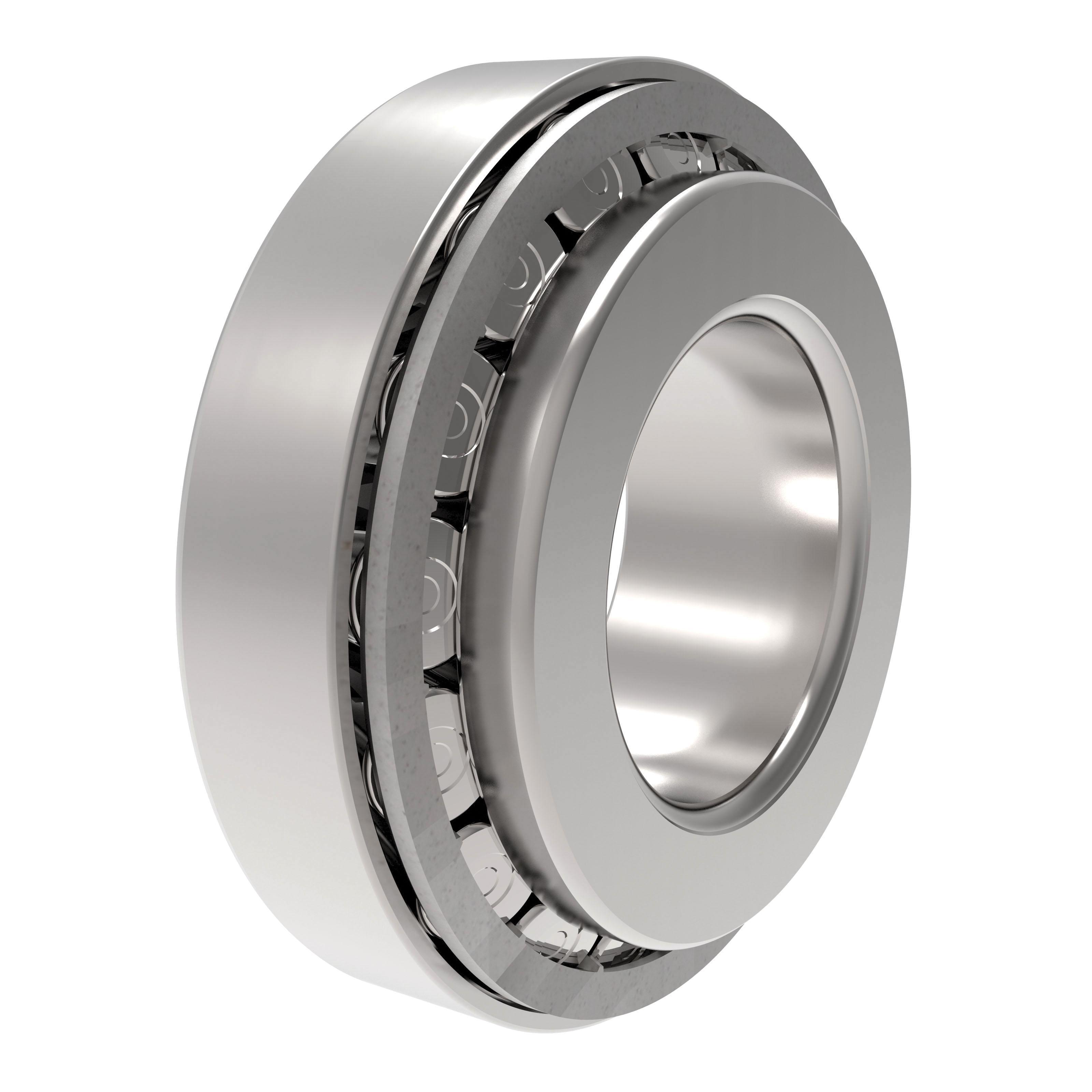

Koyo 32305JR Metric Series Caged Round Bore Tapered Roller Bearing, 25 mm Dia Bore, 62 mm OD, 1 Row, 25.25 mm W, 76.6 kN Dynamic/64.1 kN Static/9.5 kN Fatigue Load
Tapered Roller Bearing are designed such that cup, cone and rollers have tapered surfaces whose apexes converge at a common point on the bearing axis. Along with metric series bearing, inch series bearing are also available. This type of bearing is suitable for applications that involve heavy or impact loading.
-
BrandKoyo
-
UPC605790118616
-
Manufacturer Part Number32305JR
-
CountryUSA
-
Load Capacity76.6 kN Dynamic/64.1 kN Static/9.5 kN Fatigue
-
Cage MaterialSteel
-
Temperature Rating-54 to 121 deg C
-
Maximum Speed6900 rpm Grease/9100 rpm Oil
-
TypeCaged Round Bore
-
Width25.25 mm
-
Series32300 Metric Series
-
Number of Rows1
-
Bearing MaterialSteel
-
Outside Diameter62 mm
-
Bore Diameter25 mm
- Made from premium high carbon, high chrome Japanese steel
- Sold as an individual cup, cone or as a full assembly (cup and cone together)
-
UNSPSC31171516
-
Standards/ApprovalsAISI/SAE 52100
-
