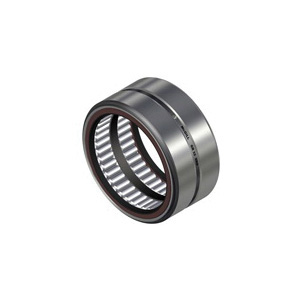

McGill 1"-ID NEEDLE ROLLER BEARINGS MCG GR-16-SRS
McGill® GUIDEROL® machined race full complement needle bearings are manufactured from bearing quality steel with unique roller and race design to provide center guided rolling elements for higher radial load capacity and is well suited for oscillating applications. GUIDEROL® bearings are constructed with radial lubrication hole and groove on the outer and optional inner raceway (MI series) for relubrication through the housing or shaft. Other options include a variety of seal configurations to either help prevent contaminant entry or contain the lubricant.
-
BrandMcGill®
-
UPC726166061593
-
Manufacturer Part Number5001620000
-
CountryUSA
-
Load Capacity4350 lb Dynamic/9600 lb Static
-
Cage MaterialSteel
-
Temperature Rating-20 to 250 deg F
-
Maximum Speed3800 rpm
-
Closure TypeDouble Seal
-
TypeHeavy Duty Standard
-
Seal MaterialRubber
-
Width1 in
-
SeriesGR Series
-
Number of Rows2
-
Bearing MaterialSteel
-
Outside Diameter1-1/2 in
-
Bore Diameter1 in
- Machined outer race
- Unique center guided needle rollers
- Annular lubrication groove and holes
- Factory grease fill
- Retaining ring and center rail
- Double seal with one lip turned in and one lip turned out
-
Alternative Part NumberGR 16 SRS
-
UNSPSC31171542
-
Package DescriptionEACH
-
