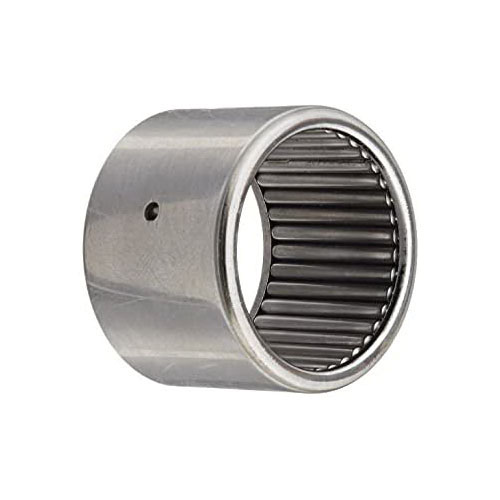

Koyo B-2012-OH Inch Series Open Ends Round Bore Uncaged Drawn Cup Needle Roller Bearing With Oil Hole, 1-1/4 in Dia Bore, 1-1/2 in OD, 1 Row, 3/4 in W, 6490 lb Dynamic/14540 lb Static Load
Drawn Cup Needle Roller Bearings supports radial loads and reduce friction between rotating components, with a drawn outer shell serving as a raceway for the rollers. The small cross section of the drawn cup bearing provides high load-carrying capability with minimum required space. Drawn cup bearing are easily installed with a press fit in the housing.
-
BrandKoyo
-
UPC605790197987
-
Manufacturer Part NumberB-2012-OH
-
CountryUSA
-
Load Capacity6490 lb Dynamic/14540 lb Static
-
Temperature Rating-30 to 110 deg C
-
Maximum Speed2300 rpm Grease/3500 rpm Oil
-
Closure TypeOpen
-
TypeOpen Ends Round Bore Uncaged
-
Width3/4 in
-
SeriesB Inch Series
-
Number of Rows1
-
Bearing MaterialSteel
-
Outside Diameter1-1/2 in
-
Bore Diameter1-1/4 in
- Full complement bearings handle high radial load carrying capability
- Best used to provide maximum radial load capacity (full complement of rollers, no cage) for thin cross section applications
- A hardened and machined shaft or an "IR" inner ring is required for optimal performance
- A press fit into the housing is required
-
UNSPSC31171512
-
Standards/ApprovalsABEC1|ASTM A1014|ANSI/ABMA 18.2
