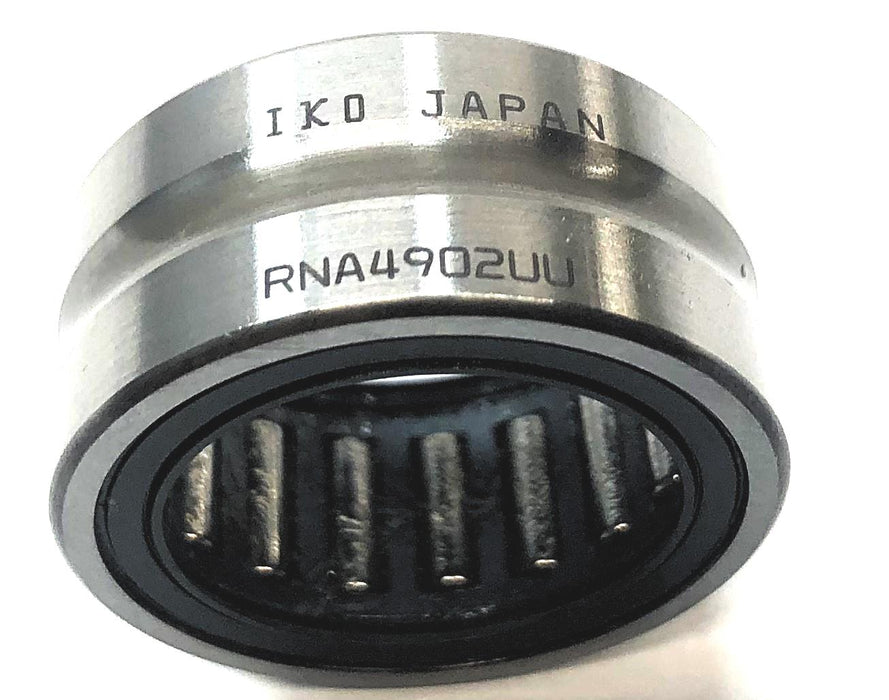

IKO Bearings 20-MM-ID NEEDLE BEARINGS W/O RACES IKO RNA-4902-UU
IKO manufactures a wide range of radial Needle Roller Bearings to meet the needs of different applications and machine profiles. These include shell type bearings, needle roller cages for both general use and within engine connecting rods and machined type Needle Roller Bearings. Machined type Needle Roller Bearings feature low sectional height and large load ratings. A highly rigid outer ring makes these bearings ideal for light alloy housings as well.
-
BrandIKO
-
Manufacturer Part NumberRNA4902UU
-
CountryUSA
-
Load Capacity9570 N Dynamic/11600 N Static
-
Maximum Speed8500 rpm
-
Closure TypeDouble Seal
-
TypeCaged Machined
-
Seal MaterialSynthetic Rubber
-
Width13 mm
-
SeriesRNA49 Metric Series
-
Number of Rows1
-
Bearing MaterialHigh Carbon Steel
-
Outside Diameter28 mm
-
Bore Diameter20 mm
- Suitable for a wide range of conditions including heavy loads requiring either high-speed or low-speed rotation
- Design choices include bearings with or without inner rings, ringless style uses a shaft as the raceway for a streamlined, compact footprint
- With seals on both side
- Without inner ring
- Pre-packed grease
-
UNSPSC31171512
-
