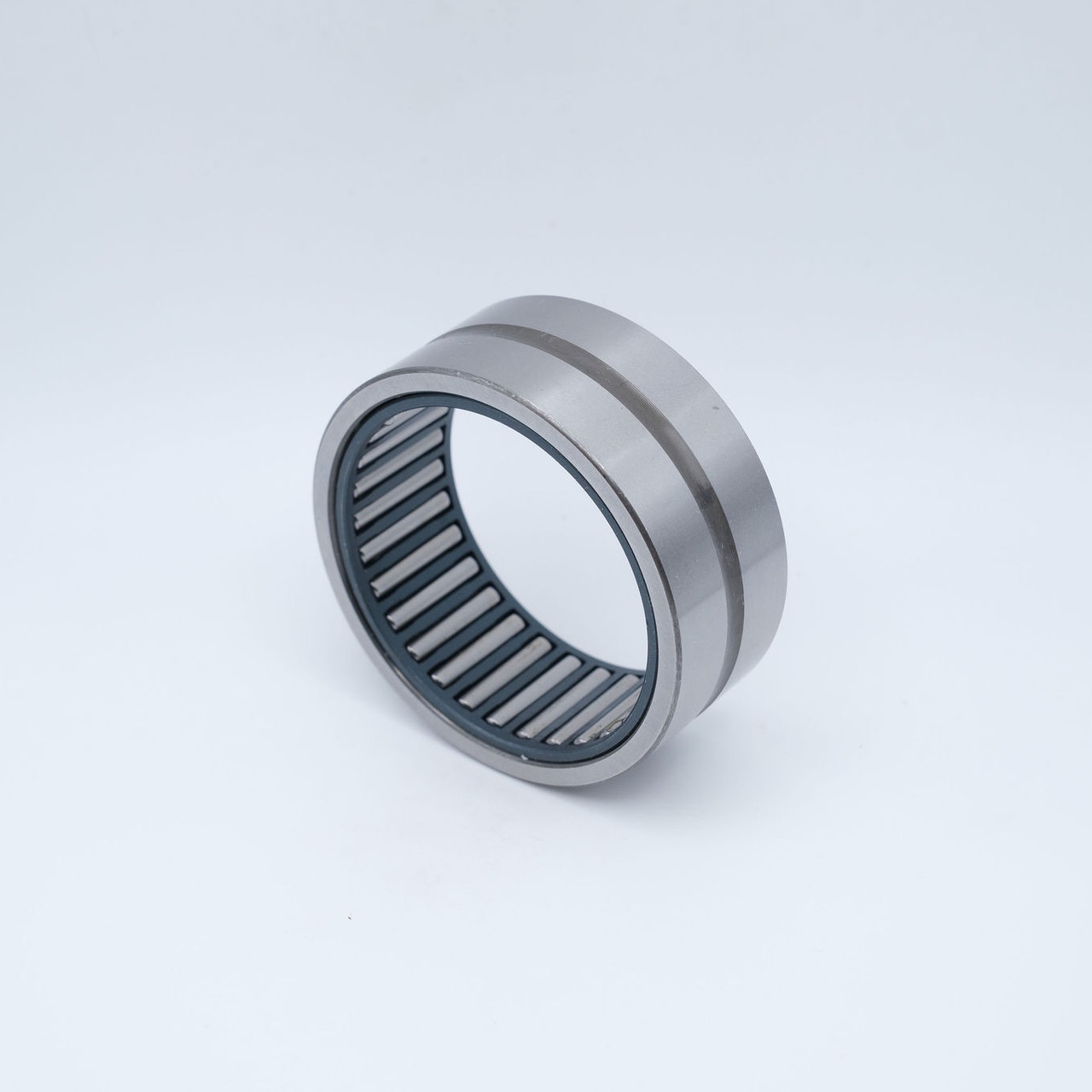

IKO RNA4900UU Metric Series Caged Machined Needle Roller Bearing With Oil Hole, 14 mm Dia Bore, 22 mm OD, 1 Row, 13 mm W, 8080 N Dynamic/8490 N Static Load
IKO manufactures a wide range of radial Needle Roller Bearings to meet the needs of different applications and machine profiles. These include shell type bearings, needle roller cages for both general use and within engine connecting rods and machined type Needle Roller Bearings. Machined type Needle Roller Bearings feature low sectional height and large load ratings. A highly rigid outer ring makes these bearings ideal for light alloy housings as well.
-
BrandIKO
-
Manufacturer Part NumberRNA4900UU
-
CountryUSA
-
Load Capacity8080 N Dynamic/8490 N Static
-
Maximum Speed14000 rpm
-
Closure TypeDouble Seal
-
TypeCaged Machined
-
Seal MaterialSynthetic Rubber
-
Width13 mm
-
SeriesRNA49 Metric Series
-
Number of Rows1
-
Bearing MaterialHigh Carbon Steel
-
Outside Diameter22 mm
-
Bore Diameter14 mm
- Suitable for a wide range of conditions including heavy loads requiring either high-speed or low-speed rotation
- Design choices include bearings with or without inner rings, ringless style uses a shaft as the raceway for a streamlined, compact footprint
- With seals on both side
- Without inner ring
- Pre-packed grease
-
UNSPSC31171512
-
