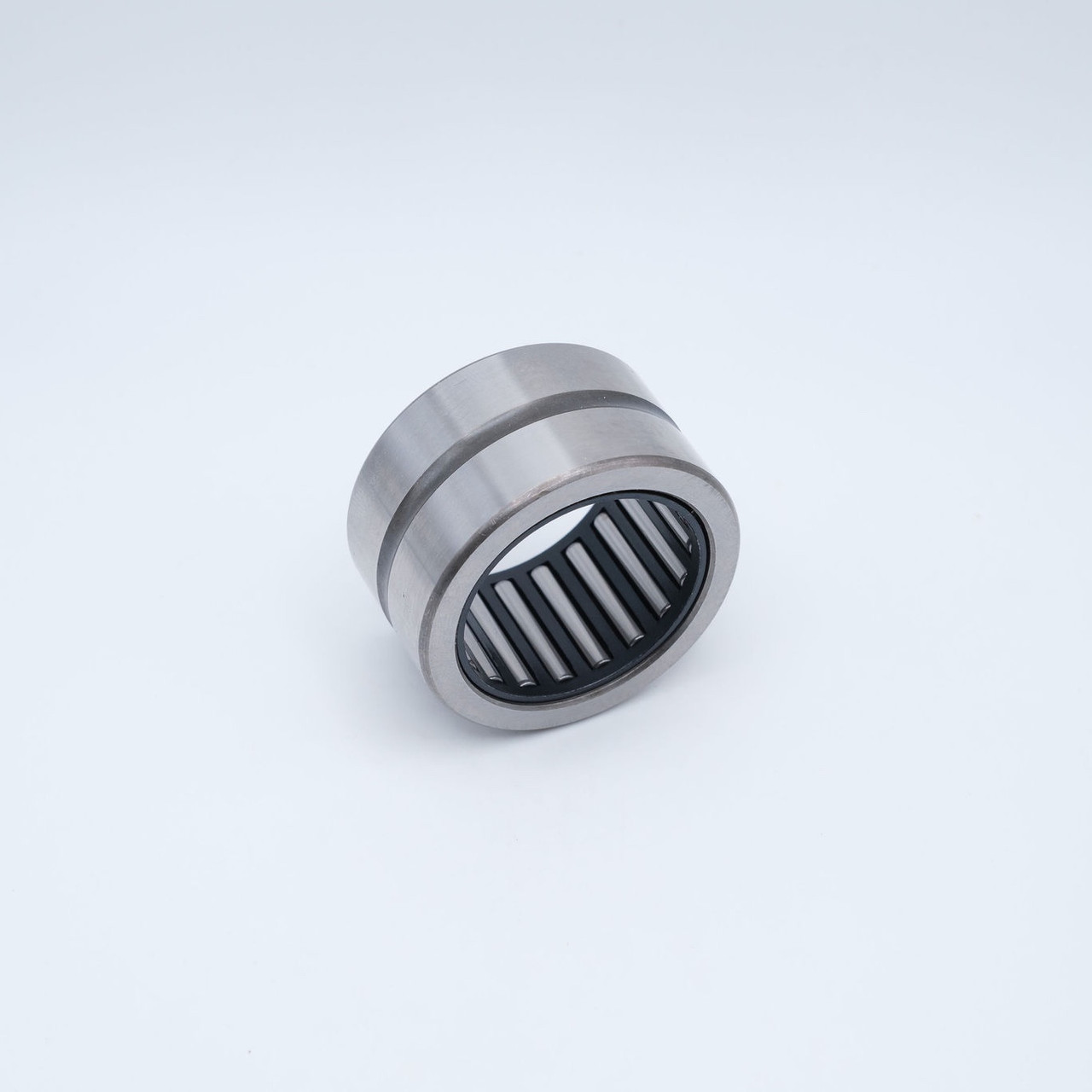

IKO Bearings 1-3/8"-ID NEEDLE BEARINGS IKO BR-223016
IKO manufactures a wide range of radial Needle Roller Bearings to meet the needs of different applications and machine profiles. These include shell type bearings, needle roller cages for both general use and within engine connecting rods and machined type Needle Roller Bearings. Machined type Needle Roller Bearings feature low sectional height and large load ratings. A highly rigid outer ring makes these bearings ideal for light alloy housings as well.
-
BrandIKO
-
Manufacturer Part NumberBR223016
-
CountryUSA
-
Load Capacity38500 N Dynamic/60000 N Static
-
Maximum Speed11000 rpm
-
Closure TypeOpen
-
Bearing MaterialHigh Carbon Steel
-
Bore Diameter1-3/8 in
- Suitable for a wide range of conditions including heavy loads requiring either high-speed or low-speed rotation
- Design choices include bearings with or without inner rings, ringless style uses a shaft as the raceway for a streamlined, compact footprint
- Without inner ring
-
UNSPSC31171512
-
Standards/ApprovalsANSI Specified
-
Catalog
Recently Viewed
IKO manufactures a wide range of radial Needle Roller Bearings to meet the needs of different applications and machine profiles. These include shell type bearings, needle roller cages for both general use and within engine connecting rods and machined type Needle Roller Bearings. Machined type Needle Roller Bearings feature low sectional height and large load ratings. A highly rigid outer ring makes these bearings ideal for light alloy housings as well.
Inner Rings can be integrated with shell-type or various machined needle roller bearings to provide good roller support without worrying about premature shaft wear. We heat-treat and grind our Inner Rings to tight tolerances to create hard, tough raceways for applications where it is impossible to make shaft surfaces to a specific hardness or roughness attribute. They're an economical alternative to bushings because they don't require any additional machining. Wide Inner Rings are also available to accommodate shafts that move axially or seals that are adjacent to bearings. Inner Rings come in a broad range of shaft diameters and assembly elements include small chamfers or gentle taper relief options. These rings are designed to provide a durable surface for shell-type needle roller bearings with non-machined raceways in-type IRB series shaft diameters range from 5/16 to 2-1/2 in.
The McGill® CAMROL® full complement needle bearings feature black oxide treated bearing steel. They are available in two basic mounting styles for use in mechanical automation or linear motion applications. Our basic features each contribute to superior performance. The LUBRIDISC® seal option helps prevent metal to metal contact within the bearing. It also provides a barrier for containment entry and blowout protection when relubricating. These bearings are available with several dimensional choices. The seal options and combinations provide a specific solution for each application. Within the following section you can learn more about these features and how they can be applied to your application.
